Klargester Grease SeparatorGrease Management
Product Information

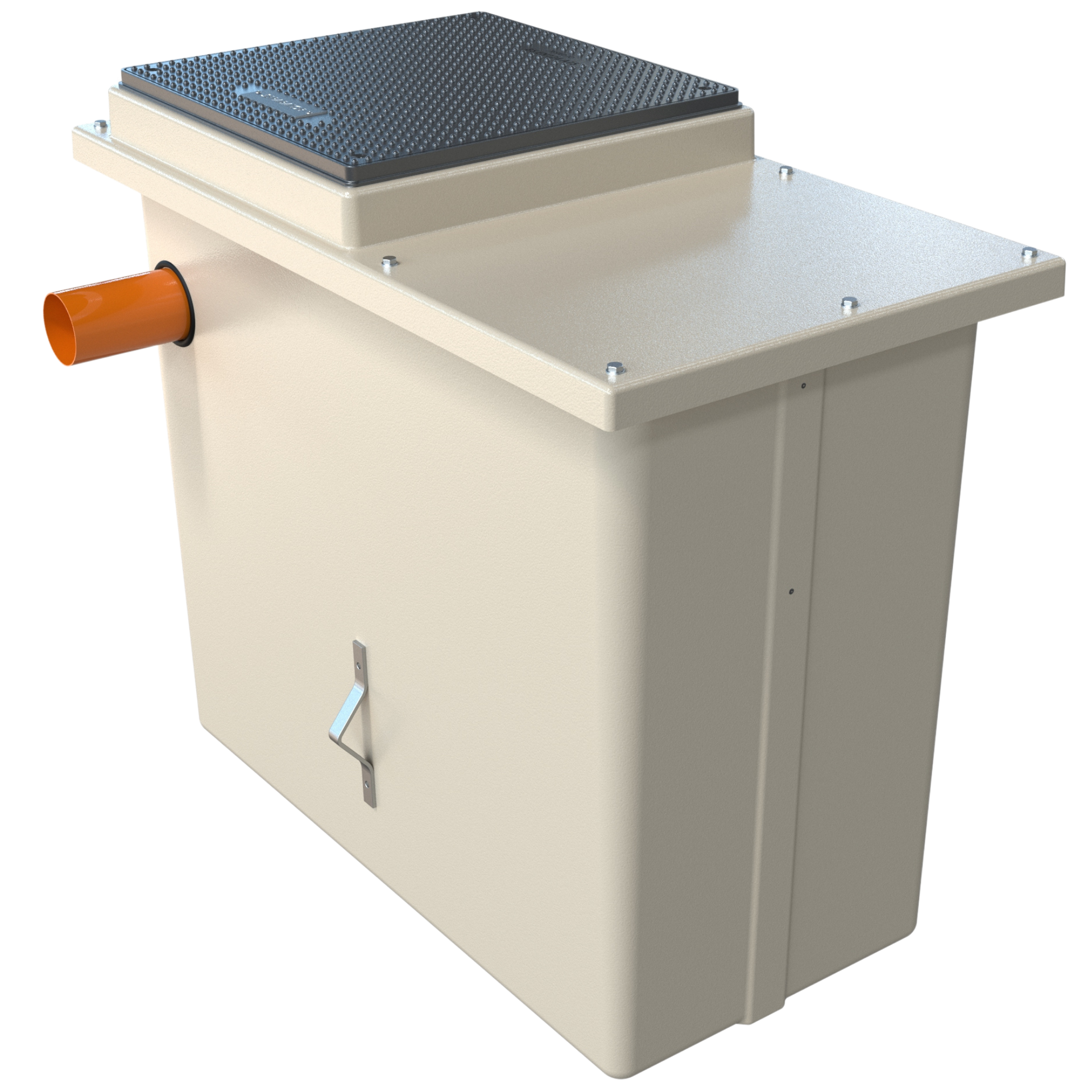

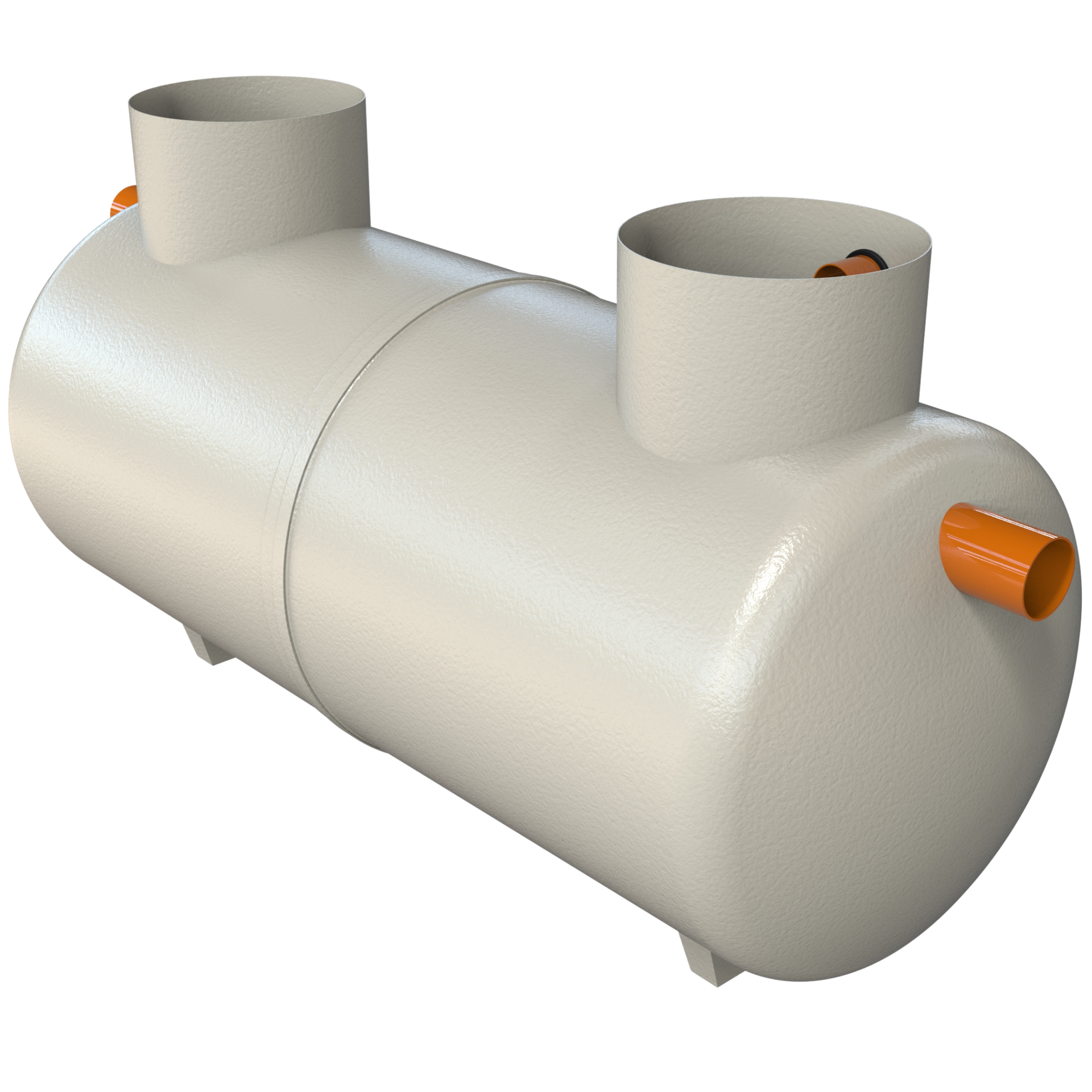

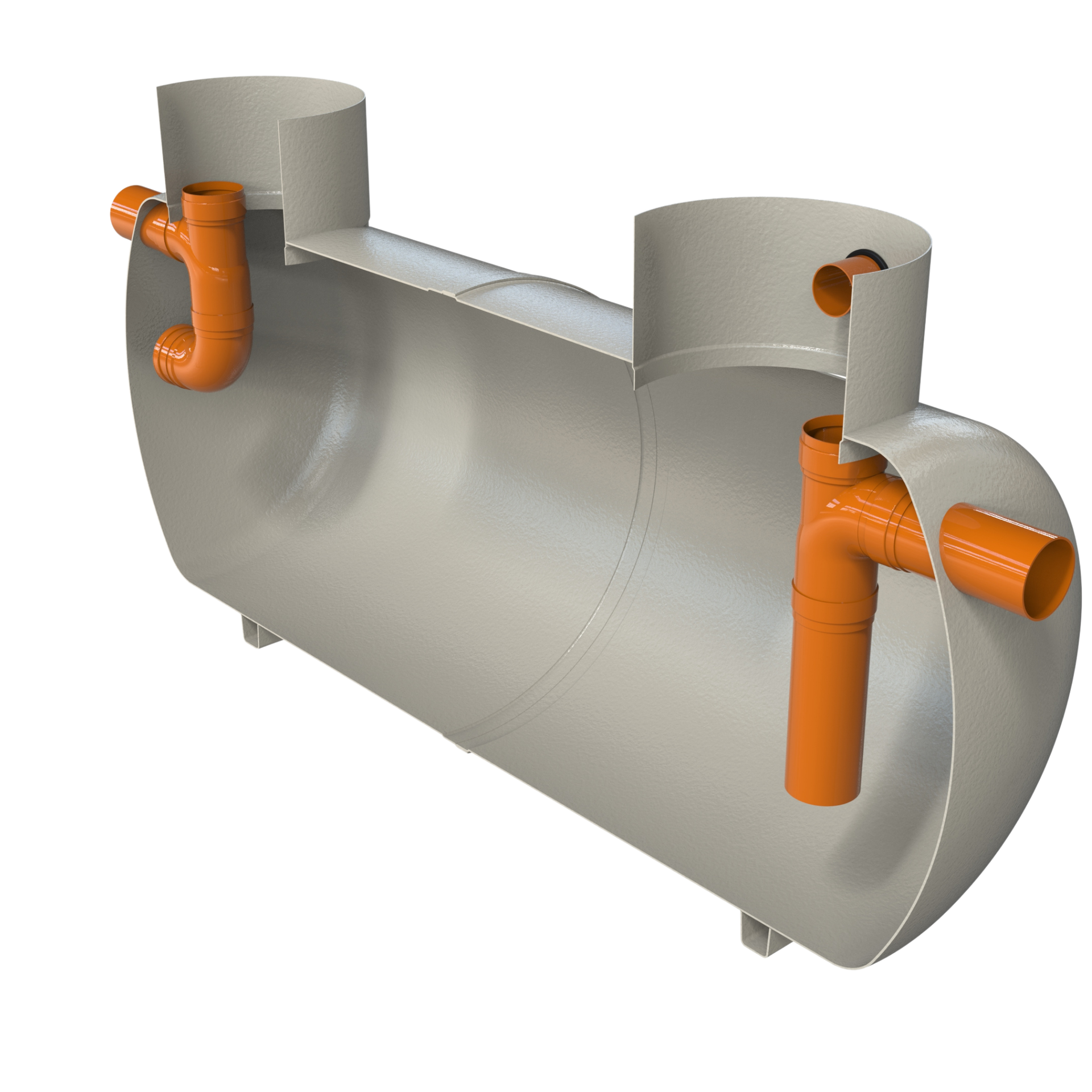

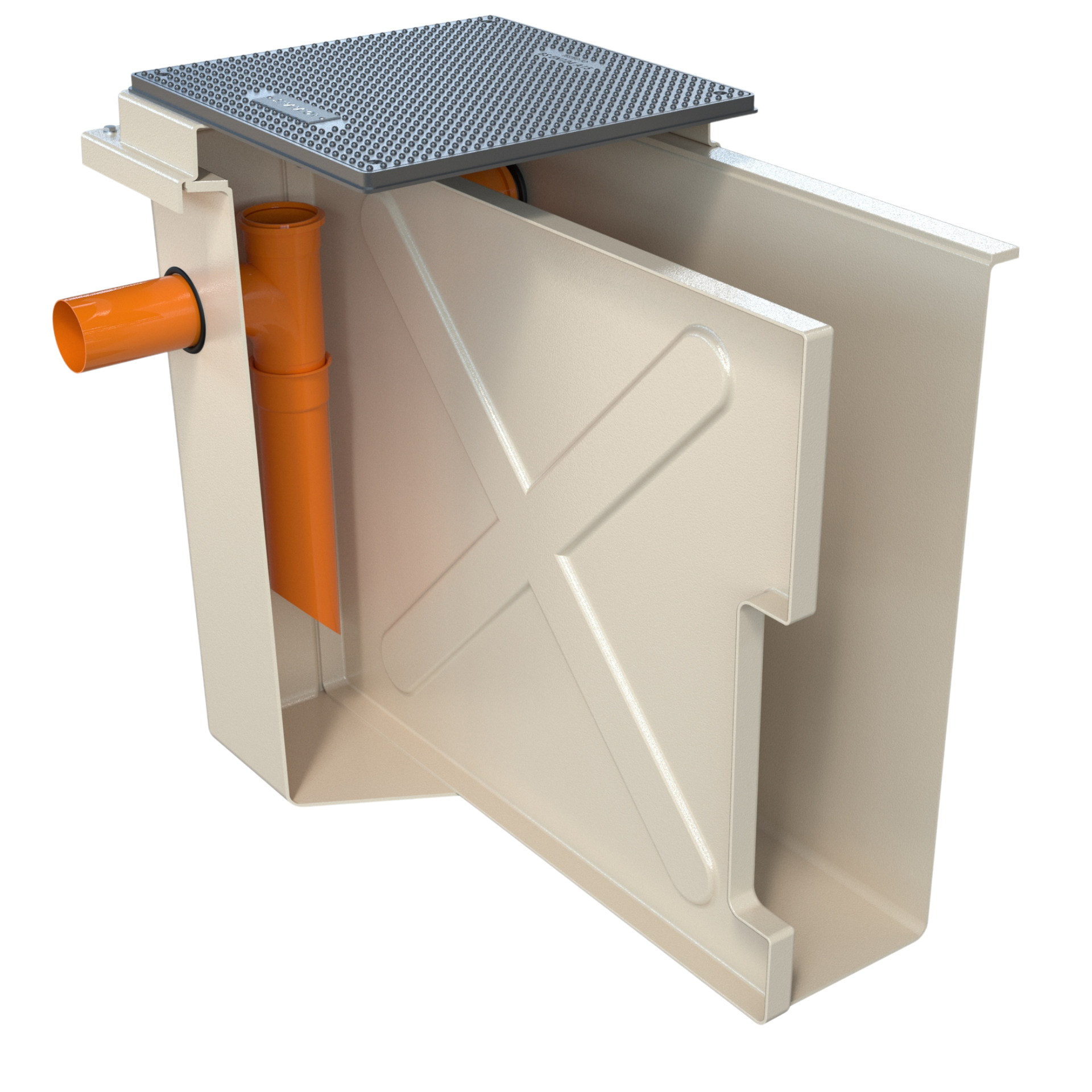

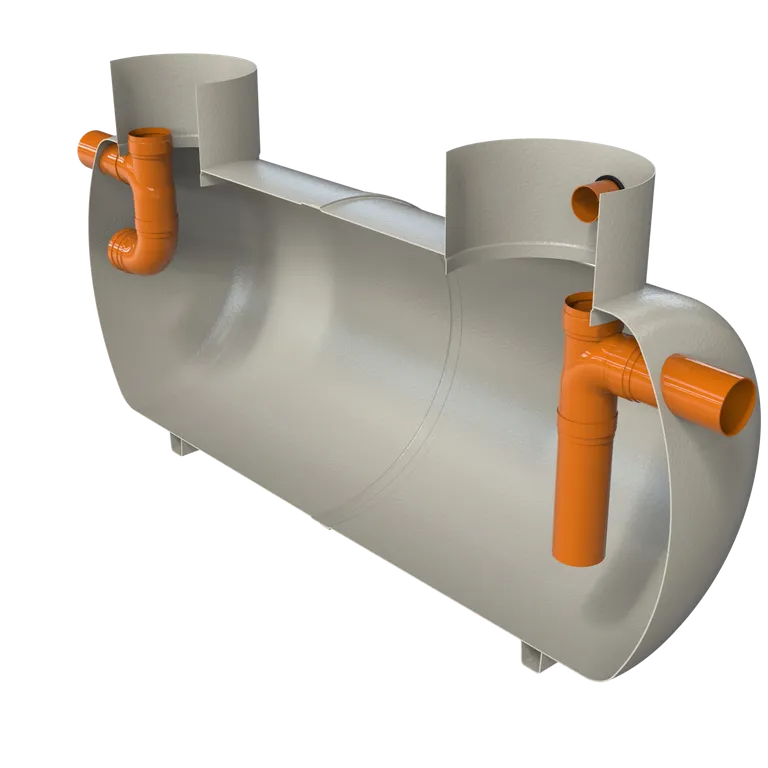

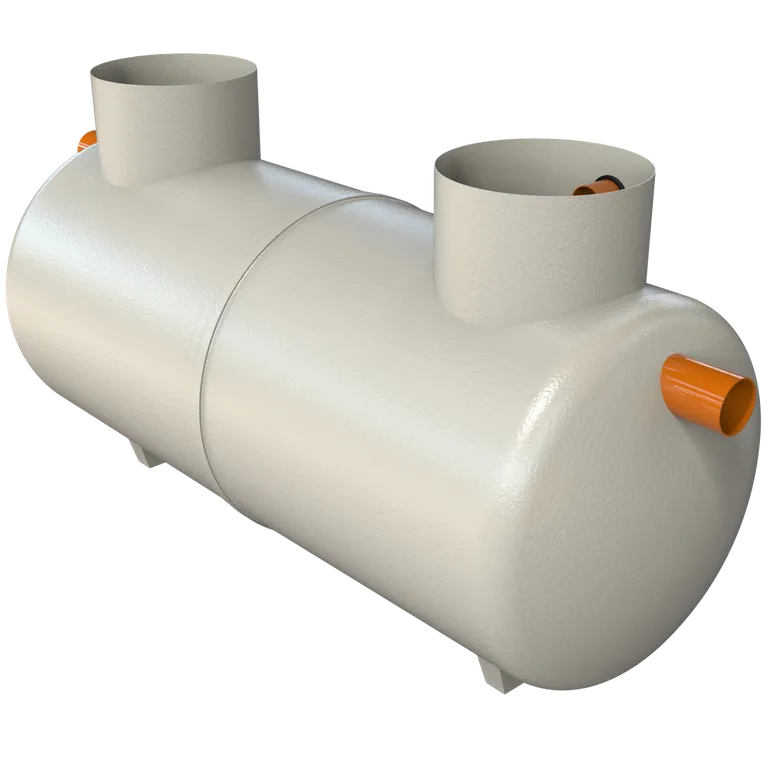

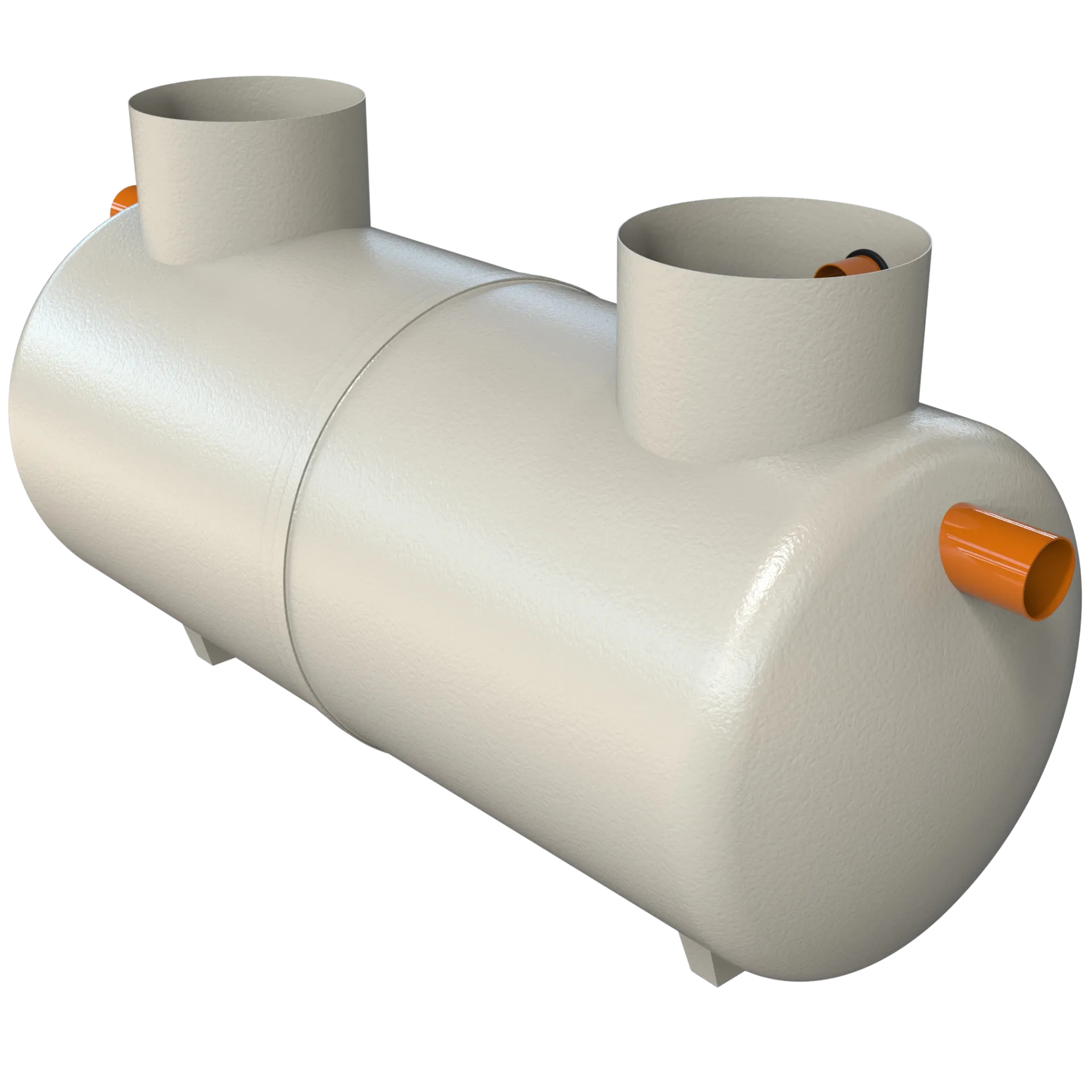

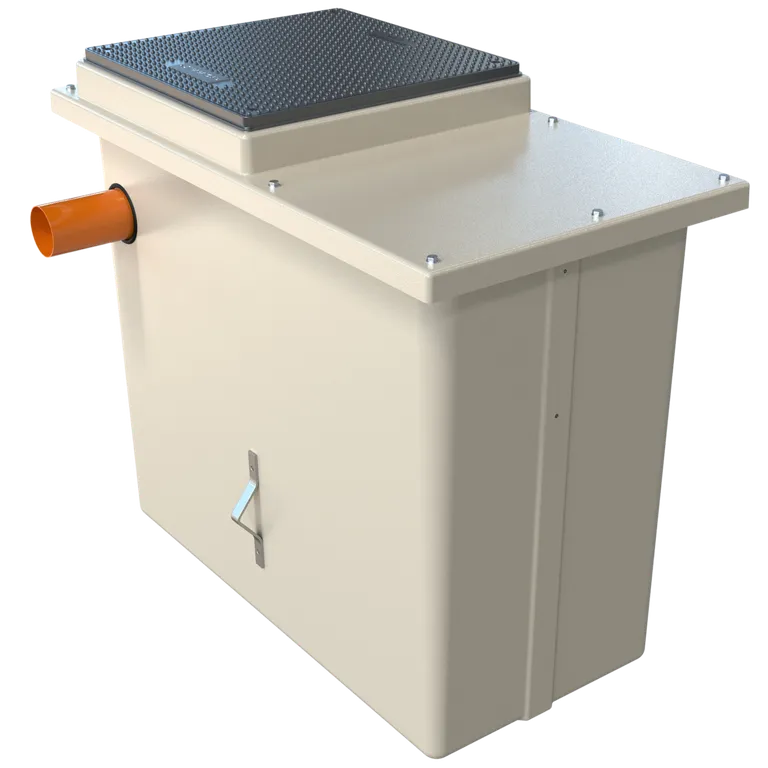

Our Klargester grease separator range has been designed for use in industrial or commercial kitchens where fats, oils and grease needs to be removed from greywater before causing mains blockages. These grease traps are ideal for use in businesses with commercial kitchens onsite, with 8 models available to meet your project needs.
Product Highlights
- Preserves mains drainage and prevents blockages
- Third-party tested to EN 1825-1
- Simple and convenient installation
- SmartServ Pro remote monitoring solution available for added peace of mind
- Free site visit to help select the model to meet your needs - email klargester-web@kingspan.com
- Available in 8 different specifications
Technical Information
Specification
| Tank | Flow rate (I/s) | Tank Length (mm) | Capacity (I) | Shipping Height (mm) | Fall Across the Unit (mm) |
| NSG01 | 1 | 1320 | 500 | 1100 | 75 |
| NSG02 | 2 | 1620 | 1,000 | 1175 | 75 |
| NSG04 | 4 | 2072 | 2,000 | 1570 | 70 |
| NSG06 | 6 | 3018 | 3,000 | 1570 | 70 |
| NSG09 | 9 | 3895 | 4,000 | 1570 | 70 |
| NSG14 | 14 | 4273 | 6,000 | 1745 | 70 |
| NSG18 | 18 | 3231 | 8,000 | 2120 | 70 |
| NSG24 | 24 | 4386 | 11,000 | 210 | 70 |
Applications
- Pubs
- Hotels
- Hospitals
- Cafes
- Restaurants
Legislation
- Third-party tested to EN1825-1
Downloads
Declaration of Performance (DoP)
