AquaOil Full Retention Separator
Full retention separators are designed for use in high-risk areas for fuel and oil spillages, such as roadways and car parks.

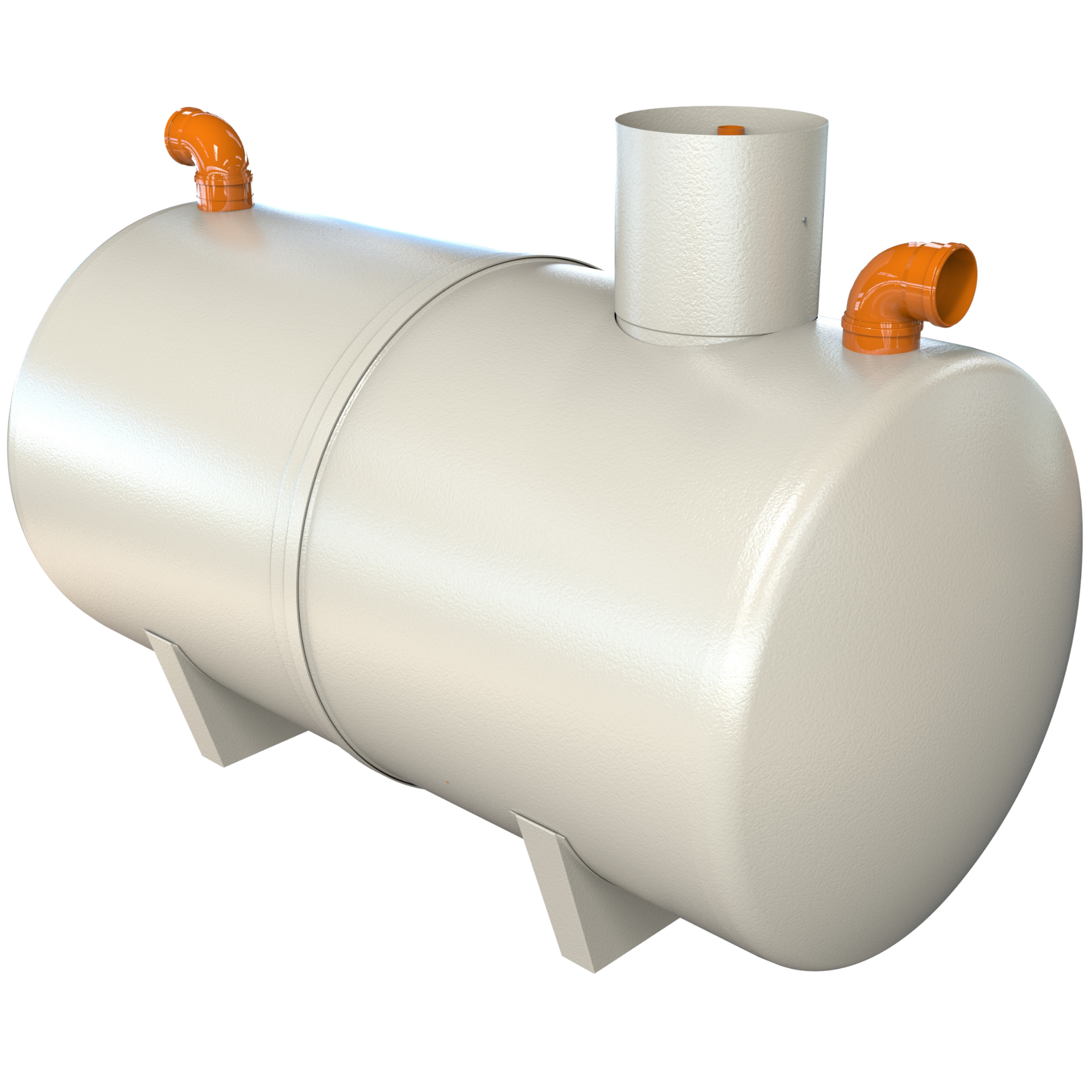

Klargester AquaOilForecourt Separator
Product Information
The Klargester petrol forecourt separators have been designed for use in projects where a petrol interceptor is required to handle potential spillages that can occur during refuelling or delivery. Our forecourt separators are suitable for use on both new projects or retrofitted to existing sites. All models comply with safety and local environmental legislative requirements.
Product Highlights
- Can be fitted to existing tanks on your site or forecourt
- Light and easy to install, saving you time and money
- Inclusive of silt storage volume
- Fitted inlet/outlet connectors & vent points within necks
- Extension access shafts for deep inverts
- GRP and Polyethylene models available
- Oil storage volume
- Coalescer filter
- Automatic closure device
- SmartServ Pro remote monitoring solution available (as optional extra)
- Affordable service and maintenance plans are available
- Free site visit to help select the model to meet your needs - email klargester-web@kingspan.com
Technical Information
Specification
Forecourt separators are full retention separators specified to retain on-site the maximum spillage likely to occur on a petrol filling station. They are required for both safety and environmental reasons and will treat spillages occurring during vehicle refuelling and road tanker delivery. The size of the separator is increased in order to retain the possible loss of the contents of one compartment of a road tanker, which may be up to 7,600 litres.
| Class | Total Capacity (Ltrs) | Drainage Area (m2) | Peak Flow Rate (l/s) | Length (mm) | Diameter (mm) | Access Shaft Diameter (mm) | Base Inlet Invert (mm) | Base to Outlet Invert (mm) | Std. Fall Across Unit (mm) | Min. Inlet Inlet (mm) | Standard Pipework Diameter (mm) | Empty Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I | 10000 | 555 | 10 | 3963 | 1920 | 600 | 2110 | 2060 | 50 | 400 | 160 | 500 |
Applications
- Garage Forecourts
- Car Parks
- Workshops
- Supermarket / Shopping Centres
- Distribution Warehouses
- Car Wash Bays
- Scrap Yards
- Car Garages
- Fuel Storage Sites
- Distribution/Haulage Centres
- Waste Transfer Sites
- Business/Commercial Parks/Industrial Estates
Legislation
- CE-marked
- Meets the EN 858-1 Class I effluent targets at low flow rates
Downloads
Contact the Klargester Team
Whether you're planning a new project, looking for product guidance or need support with an existing system, our team is here to help.
How does the AquaOil Forecourt Separator Work?
In this video, we explore how each of our Full Retention, Bypass and Forecourt separators operate, helping you understand the differences between each system and in which application they are best suited for.
