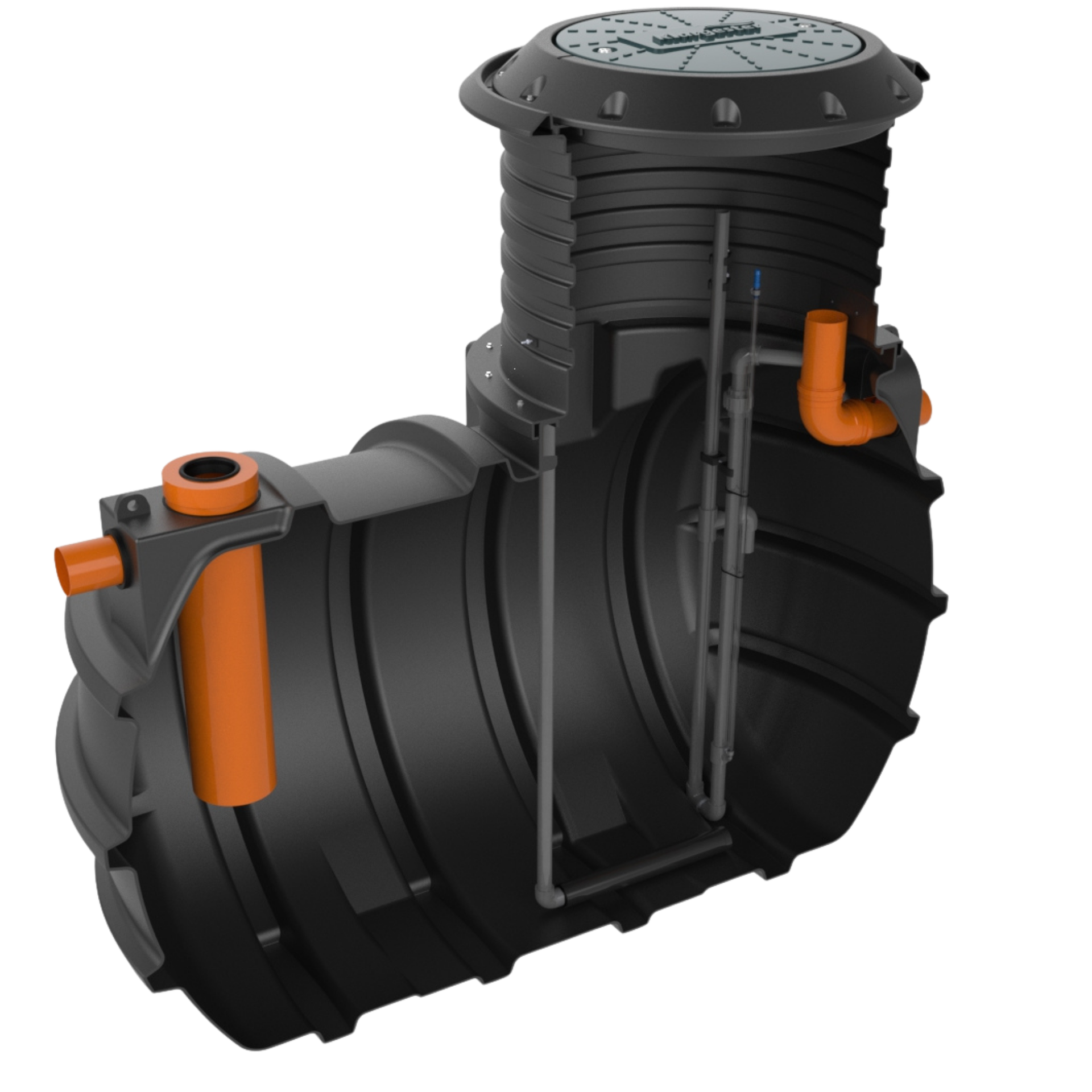

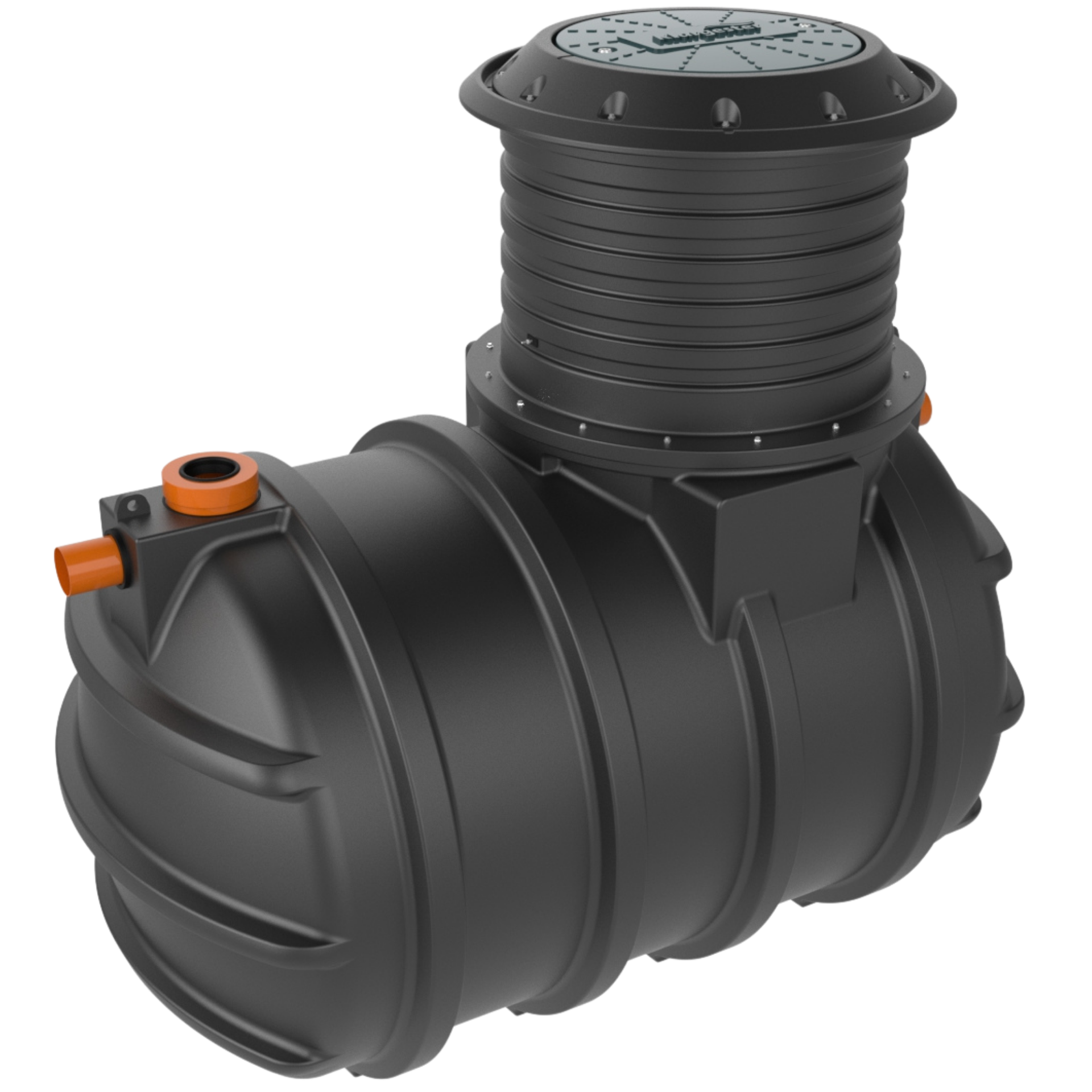

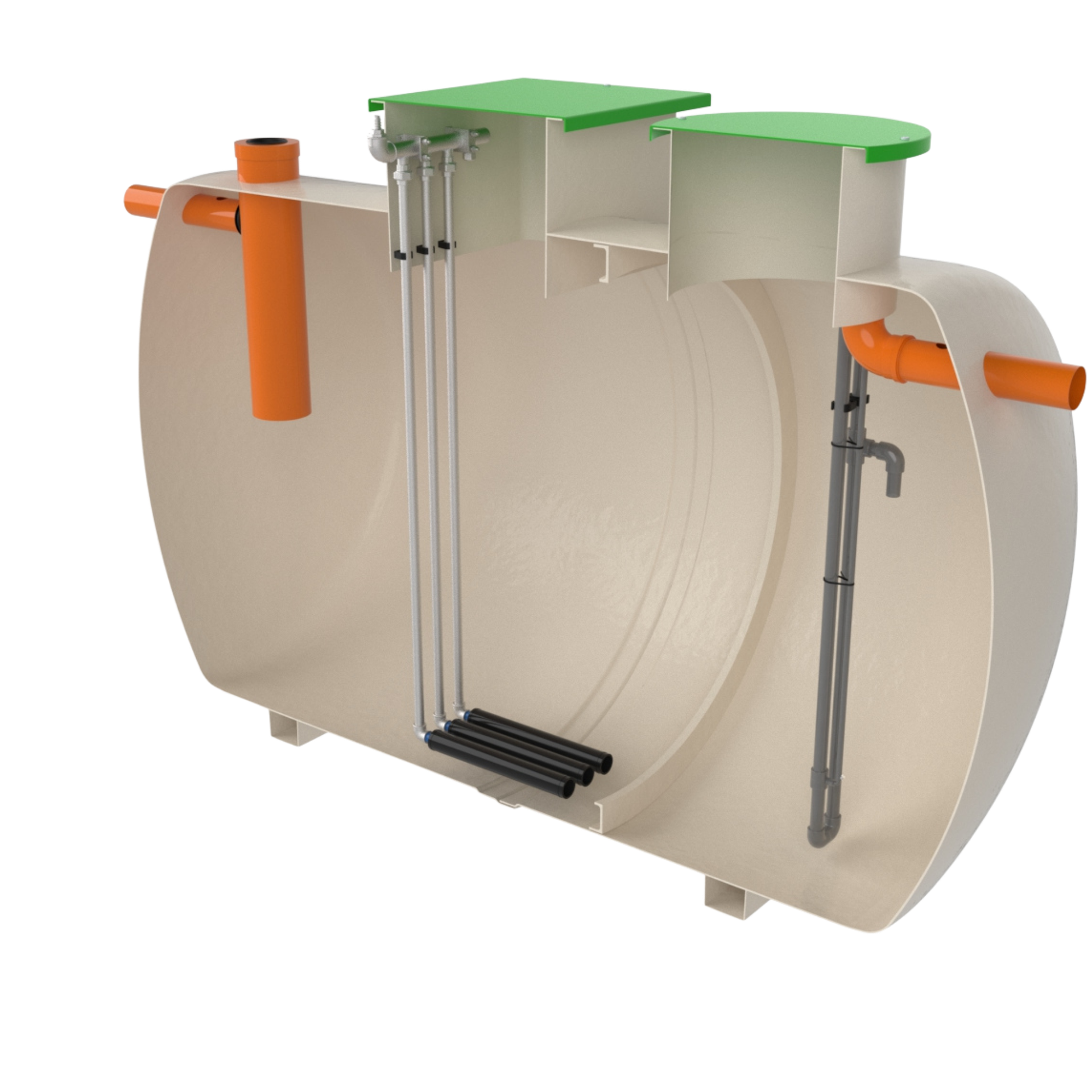

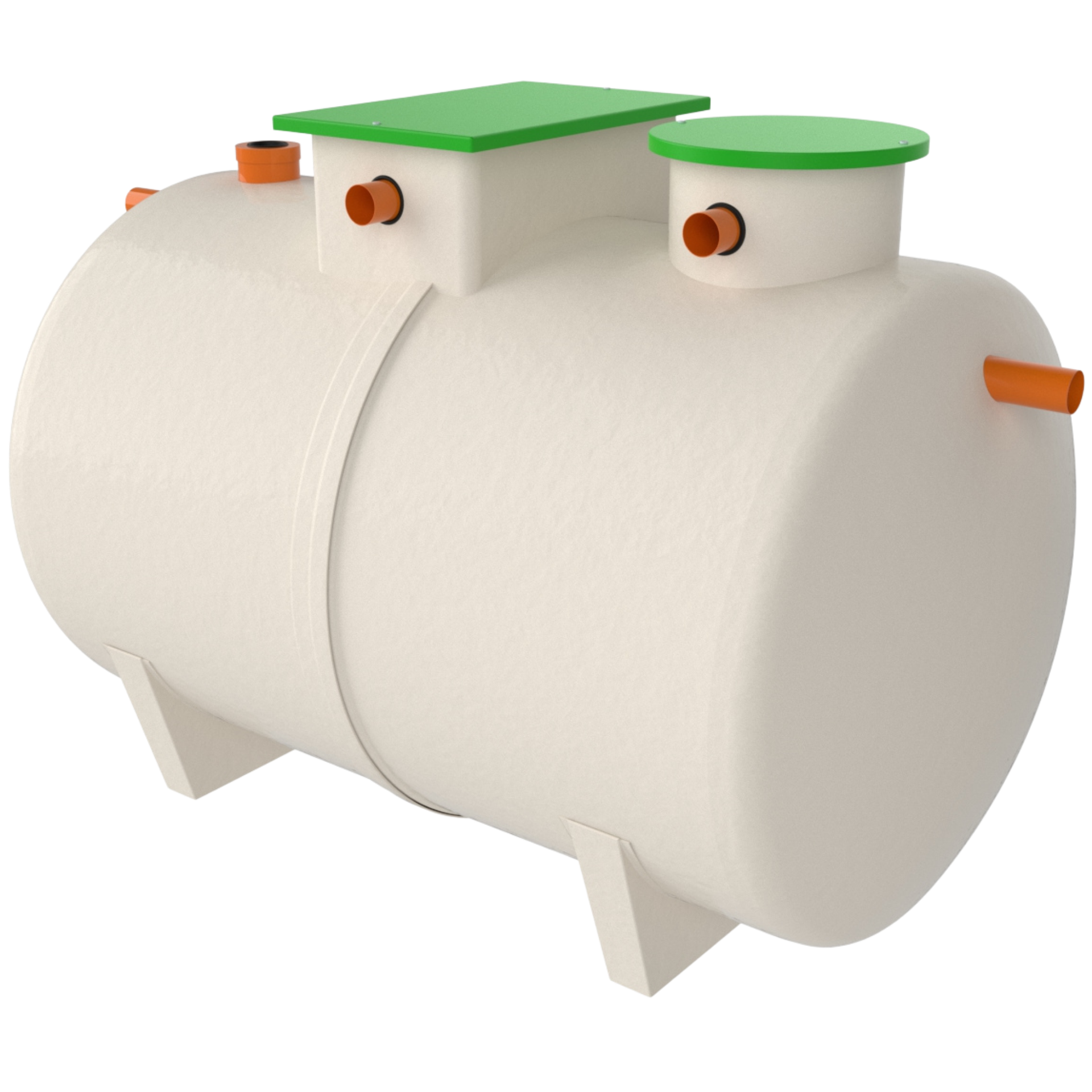

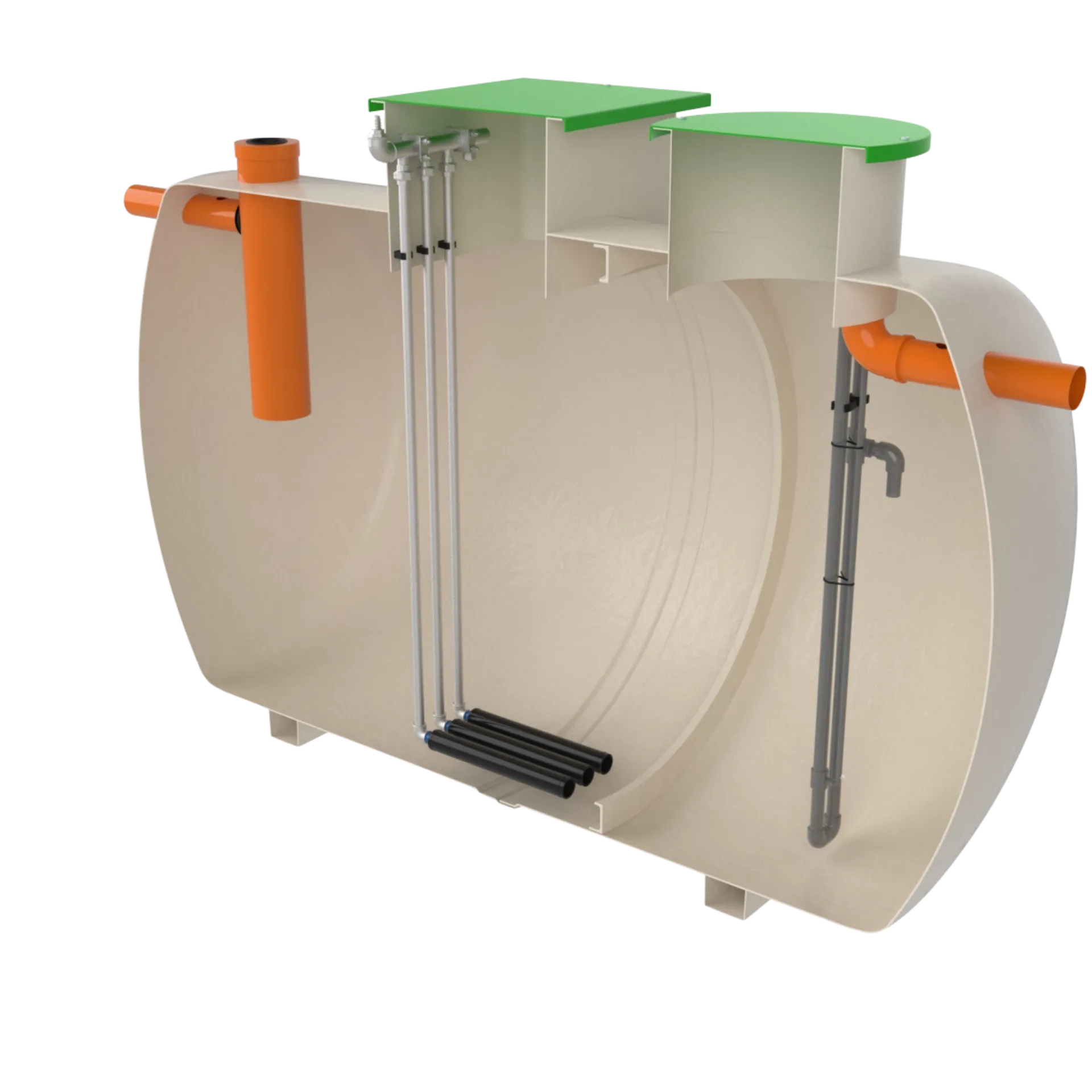

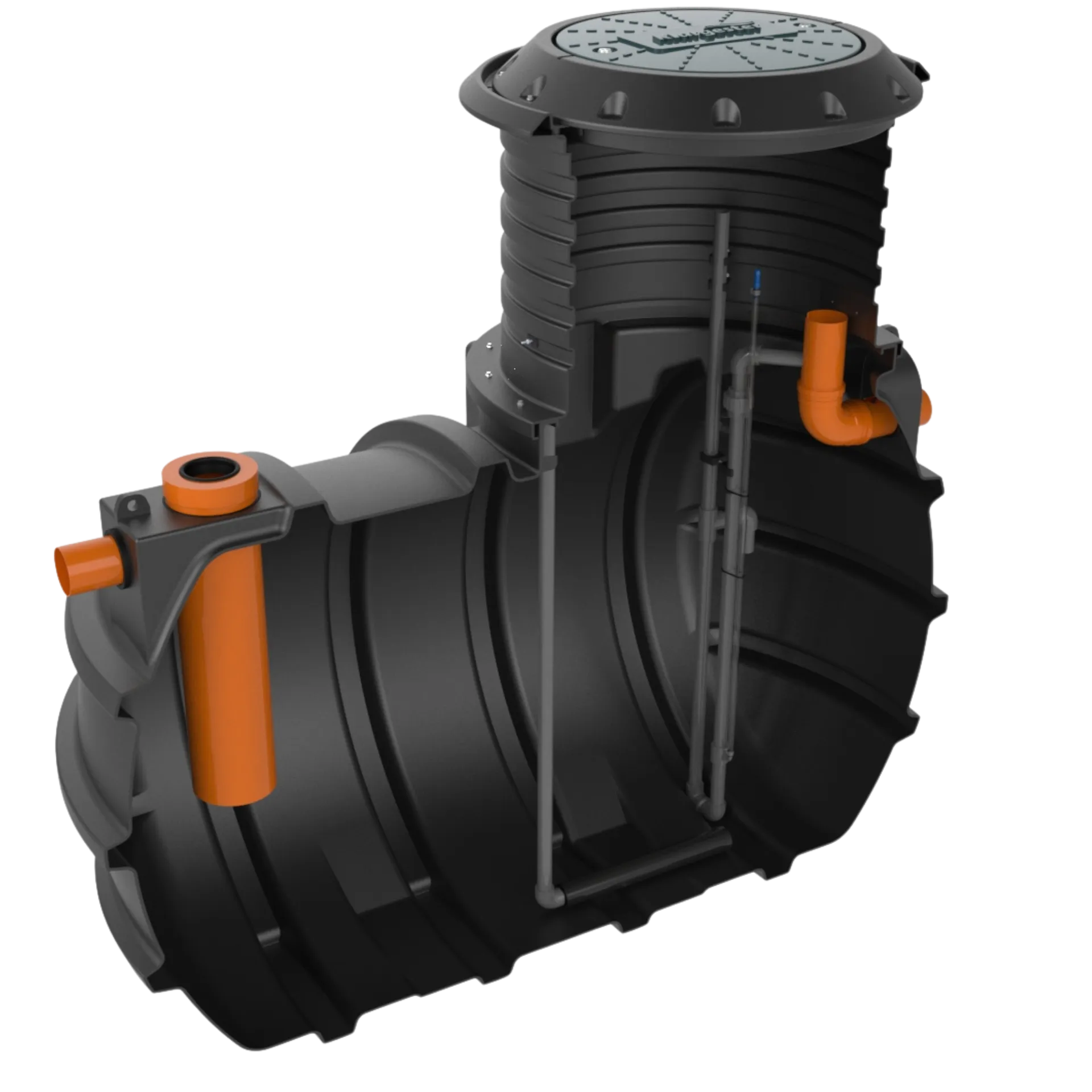

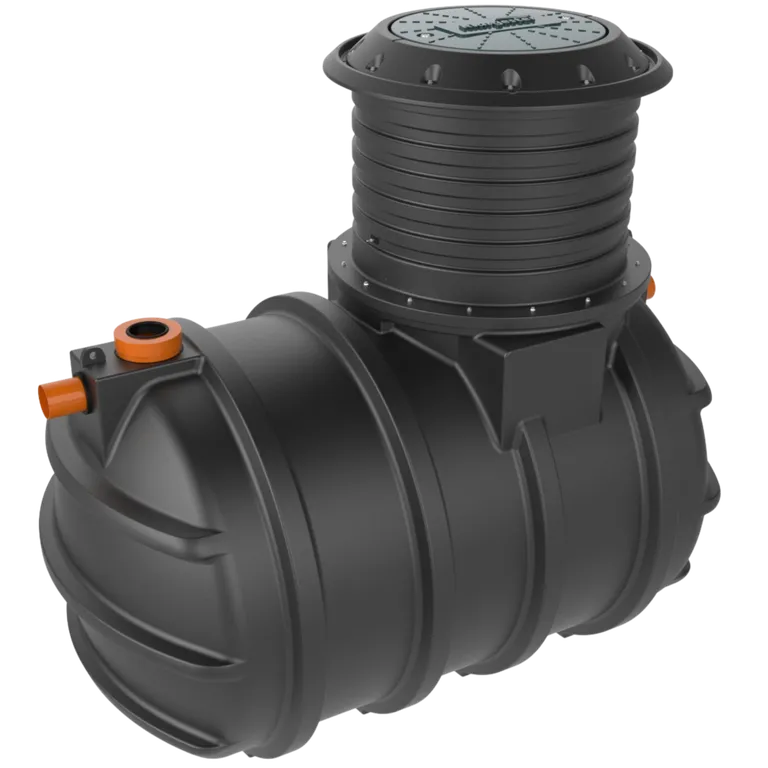

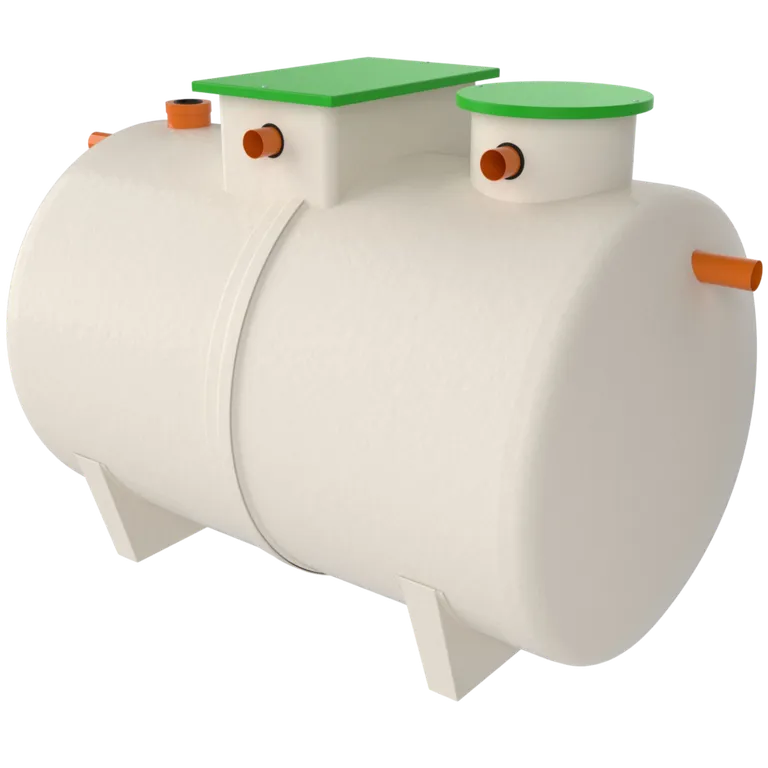

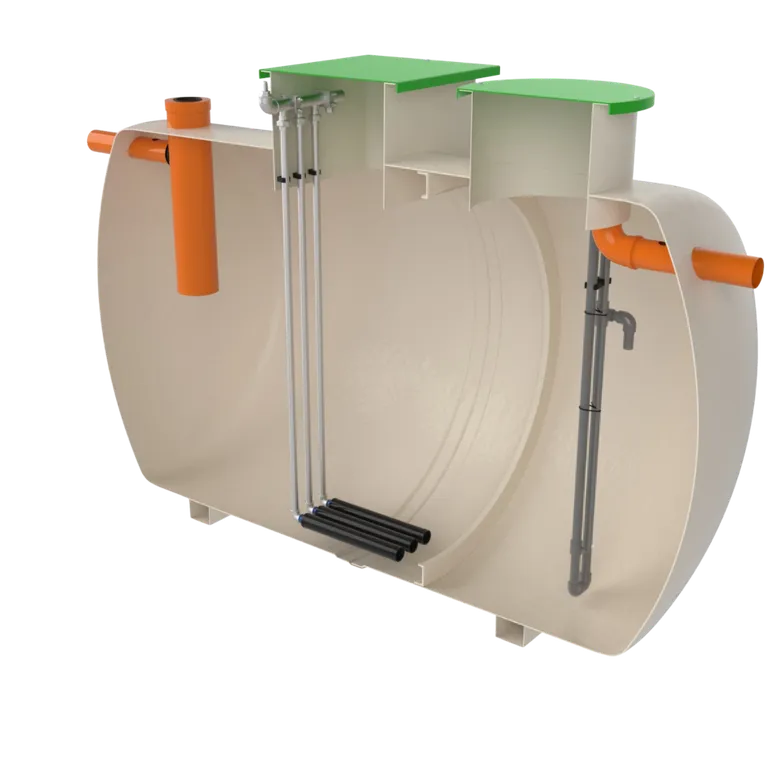

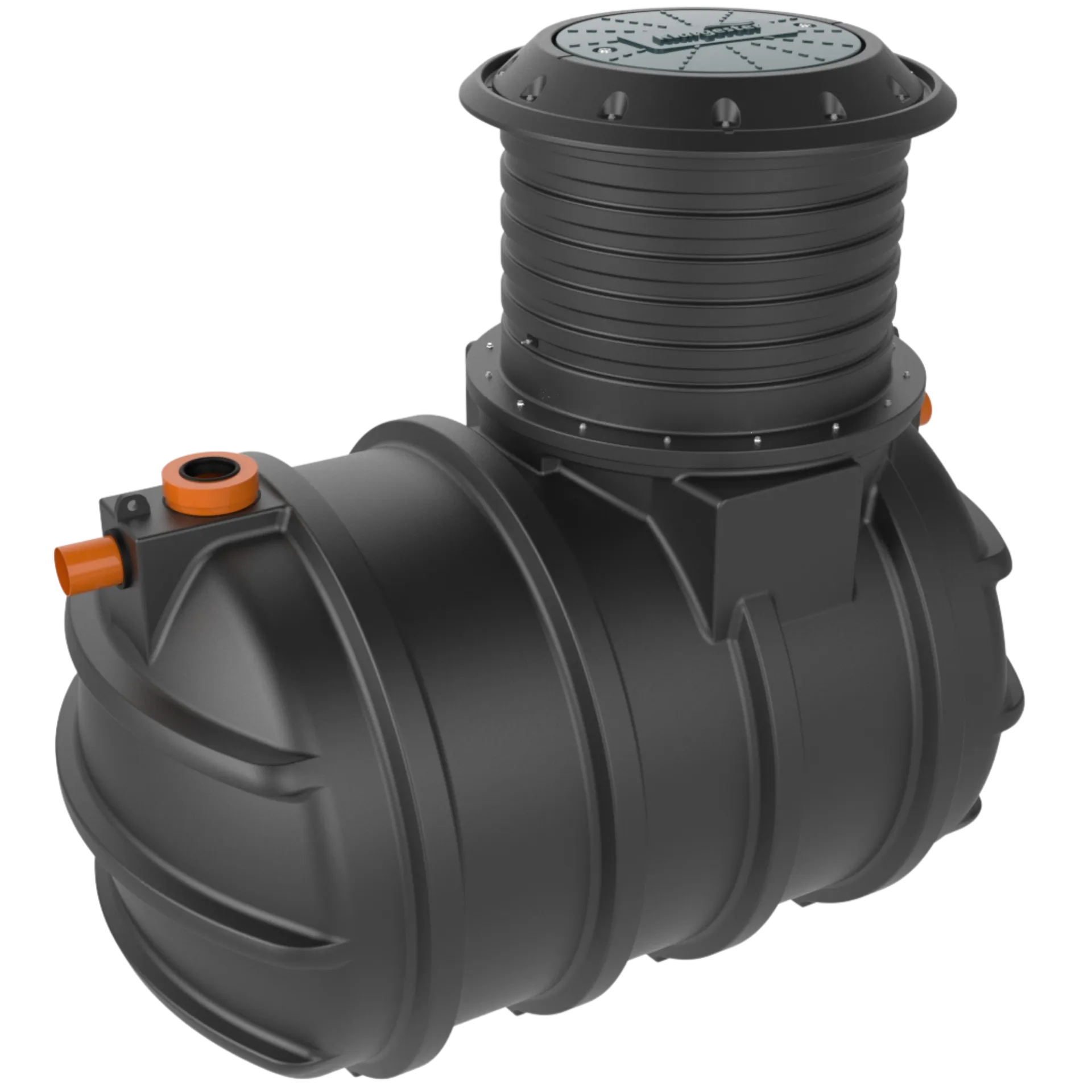

Klargester BioTec+Domestic Sewage Treatment Plant
Product Information
Our most economically priced plant in the range offers customers all the benefits of a Klargester product without the price tag. With flexible installation options to suit a variety of domestic sites, low visual footprint and suitable for shallow dig applications, the Klargester BioTec+ is a cost-efficient choice for your domestic wastewater treatment solution.
Product Highlights
- Low running costs
- Third party tested EN 12566-3
- Easy install
- Low profile cover
- Lightweight - no crane necessary
- Improved effluent quality
- 3 year warranty (terms apply)
- Free site visit to help select the model to meet your needs - email klargester-web@kingspan.com
Technical Information
Specification
| BioTec+ | Model | BioTec+2 | BioTec+3 | BioTec+4 | BioTec+5 | BioTec+6 | BioTec+7 | BioTec+8 | BioTec+9 |
|---|---|---|---|---|---|---|---|---|---|
| Population Equivalent | 6 | 9 | 12 | 16 | 20 | 25 | 35 | 50 | |
| Daily Flow Q10 | m3/d | 0.90 | 1.35 | 1.80 | 2.40 | 3.00 | 3.75 | 5.25 | 7.50 |
| Daily Load | kg BOD5/d | 0.36 | 0.54 | 0.72 | 0.96 | 1.20 | 1.50 | 2.10 | 3.00 |
| Daily Flow Q10 | m3/h | 0.09 | 0.135 | 0.18 | 0.24 | 0.3 | 0.375 | 0.525 | 0.75 |
| Measurements | |||||||||
| Inlet invert (Gravity/IPS) | mm | 645-1430/ 845-1430 | 730- 1420/ 930 -1420 | 500-2000/ 1000-2000 | 500-2000/ 1000-2000 | 500-2000 | 500-2000 | 500-2000 | 500-2000 |
| Discharge Option | Gravity/IPS | Gravity/IPS | Gravity/IPS | Gravity/IPS | Gravity | Gravity | Gravity | Gravity | |
| Outlet/Invert (Gravity/IPS) | mm | 745-1500/ 580-1165 | 830-1520/ 580-1070 | 600-2100/ 500 | 600-2100/ 500 | 600-2100 | 600-2100 | 600-2100 | 600-2100 |
| Diameter | mm | 1540 | 1690 | 1420 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Length | mm | 2480 | 2480 | 4274 | 3238 | 3963 | 4752 | 6640 | 9315 |
| Installation Depth | mm | 1995-2780/ 2195-2780 | 2250-2940/ 2450-2940 | 1835-3335/ 2335-3335 | 2250-3750/ 2750-3750 | 2250-3750 | 2250-3750 | 2250-3750 | 2250-3750 |
| Inlet Pipework | mm | Ø110 | Ø110 | Ø110 | Ø110 | Ø110 | Ø110 | Ø160 | Ø160 |
| Outlet Pipework (Gravity/IPS) | mm | Ø110/ Ø50 | Ø110/ Ø50 | Ø110/ Ø50 | Ø110/ Ø50 | Ø110 | Ø110 | Ø160 | Ø160 |
| Material Construction | MDPE/GRP | MDPE | MDPE | GRP | GRP | GRP | GRP | GRP | GRP |
| Unit Weight | kg | 175/ 185 | 195/210 | 260/290* | 350/360* | 405 | 460 | 690 | 890 |
*Tank weight based on 500mm invert
Legislation
- Third party tested to EN 12566-3
- CE marked
Applications
Typical applications for the Klargester BioTec+ sewage treatment plant:

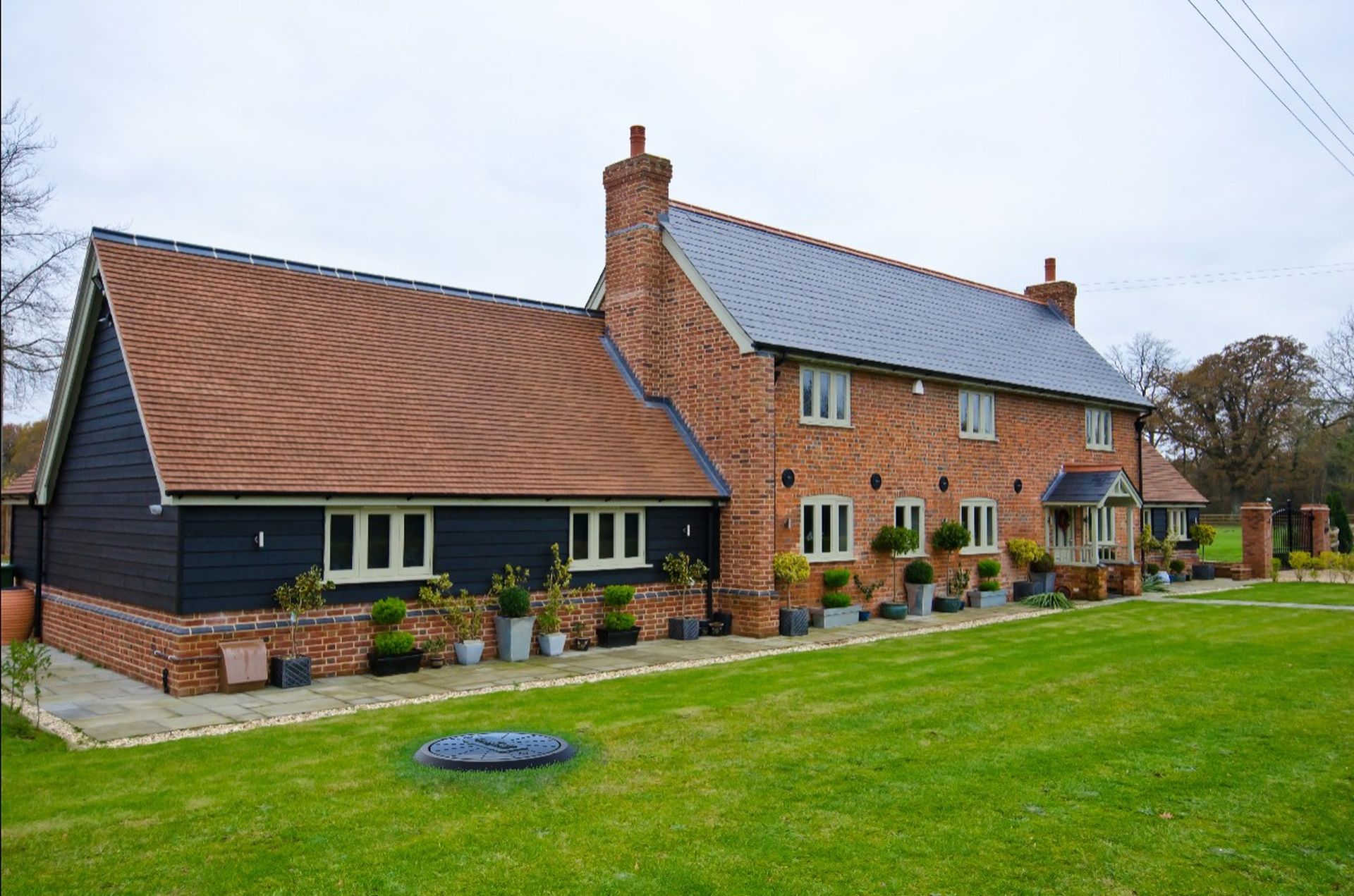

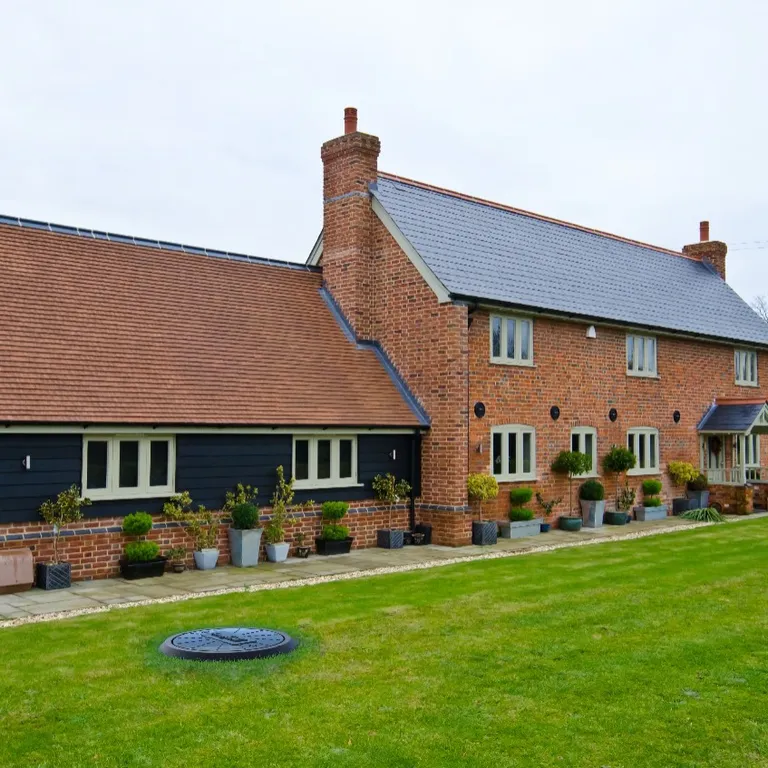

- Single/Multiple Homes
- Barn Conversions
- Small Office Development
- Stable Yard Toilet
- Farms
- Offices
Downloads
Declaration of Performance (DoP)
