Clearwater Large Sewage Treatment Plant
The Clearwater Large Sewage Treatment Plant is designed with efficiency in mind. It offers reliable performance using tried and tested technology to ensure consistently high effluent quality.

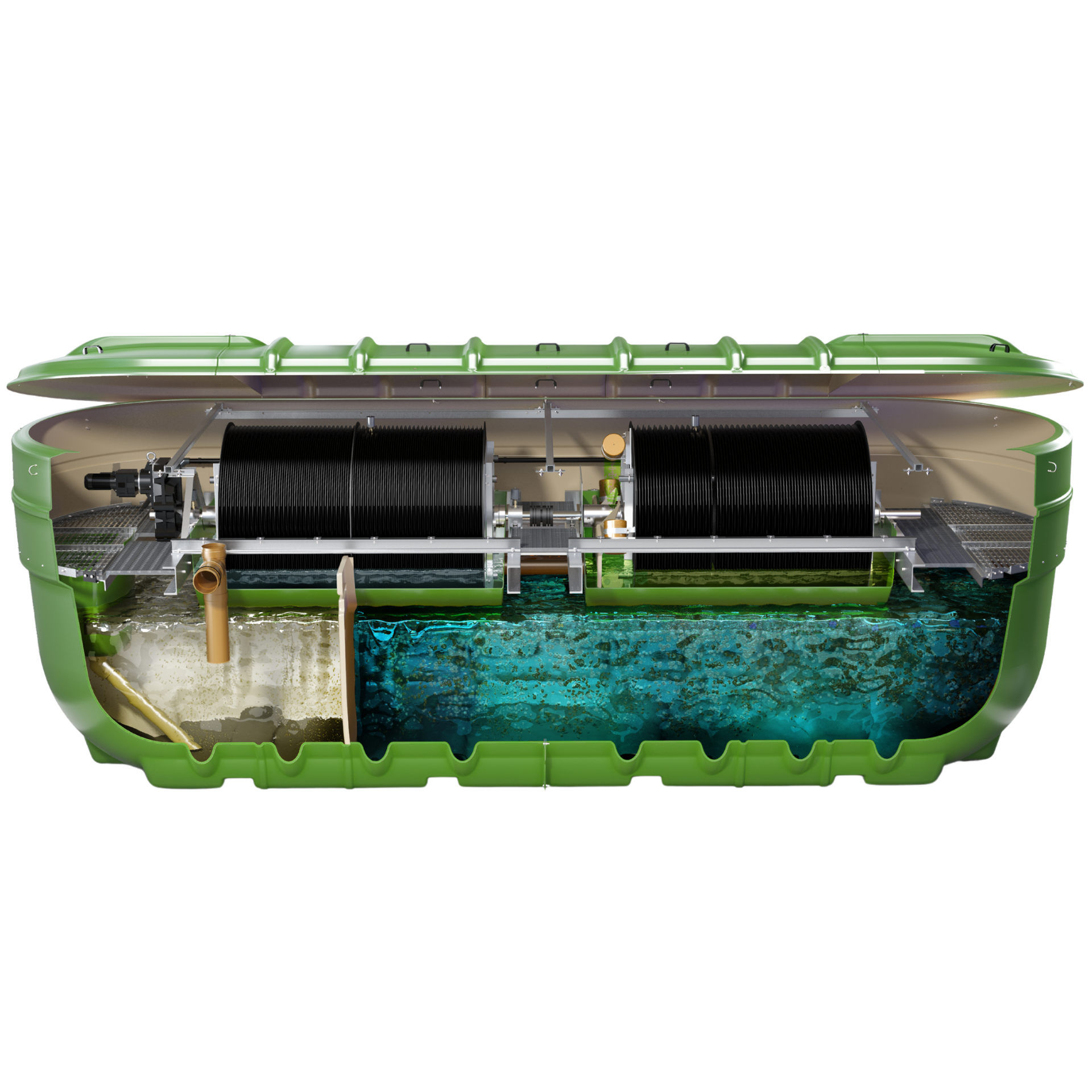

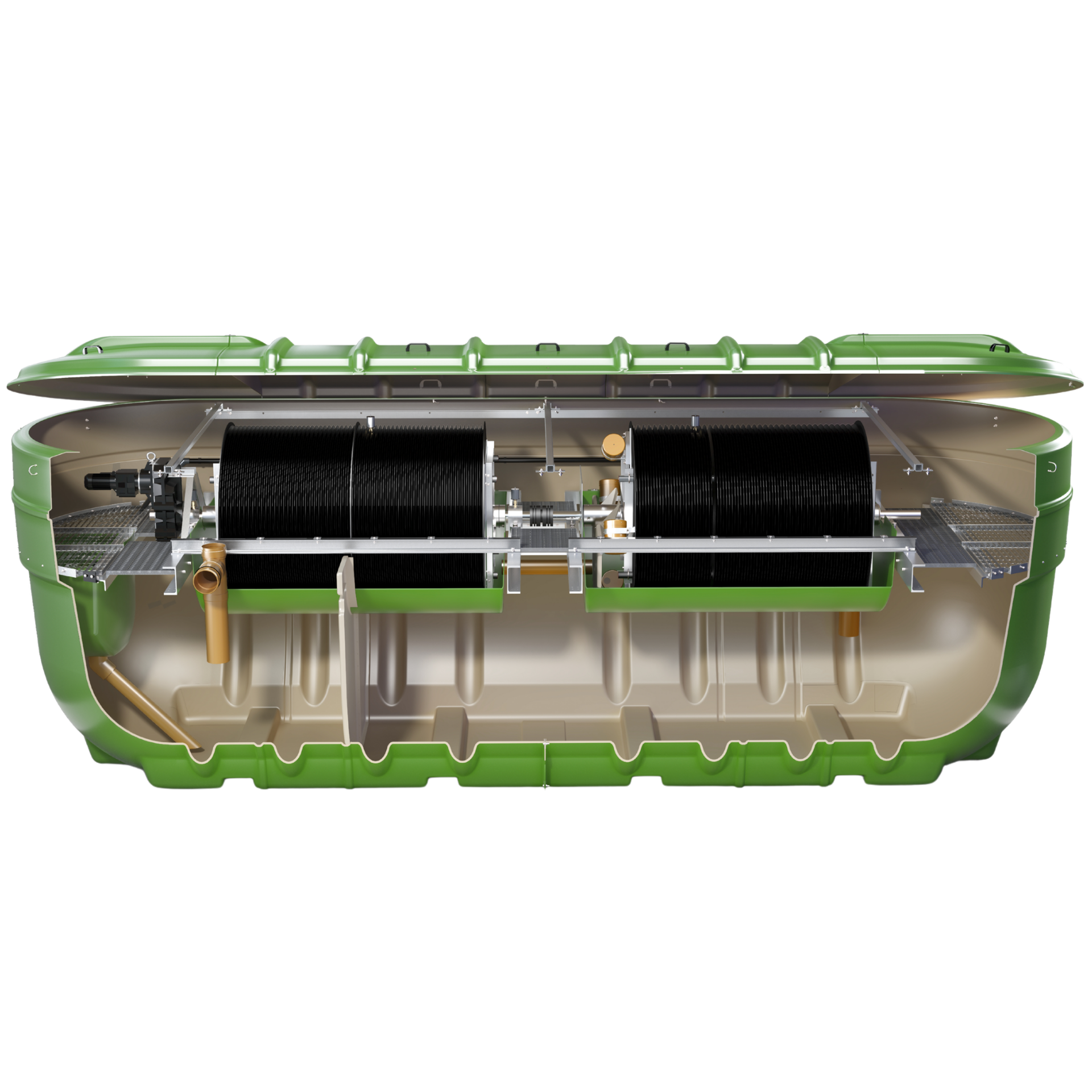

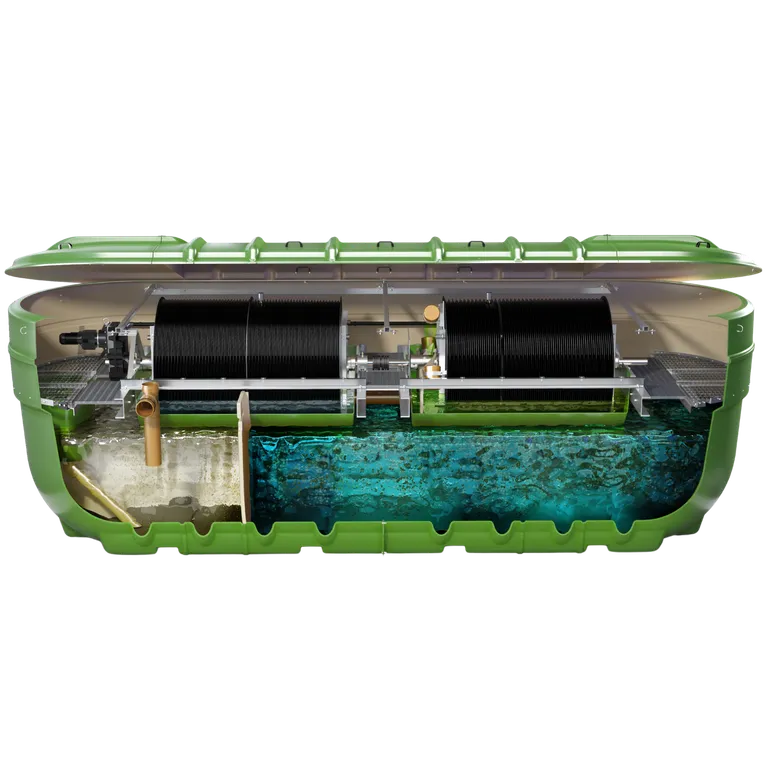

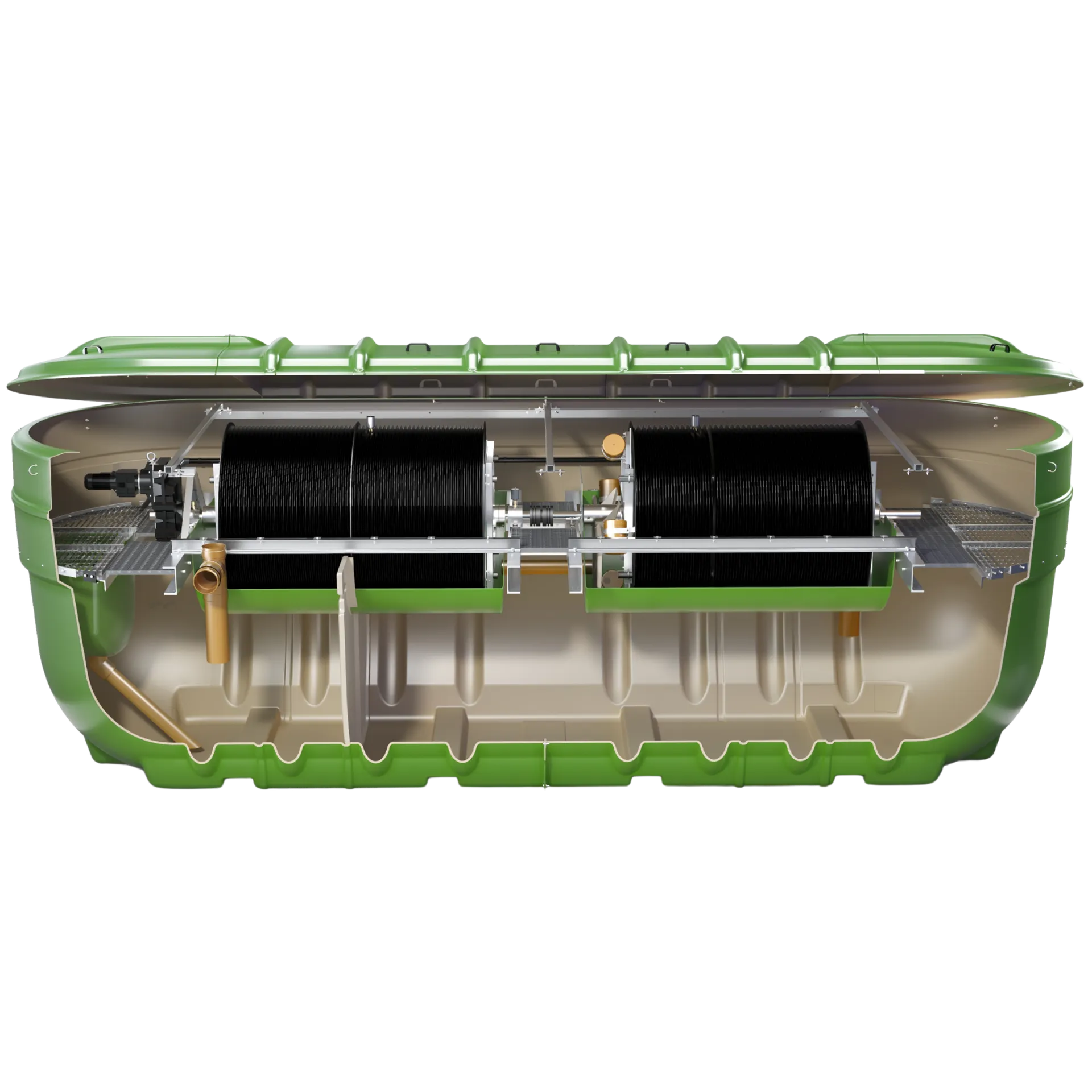

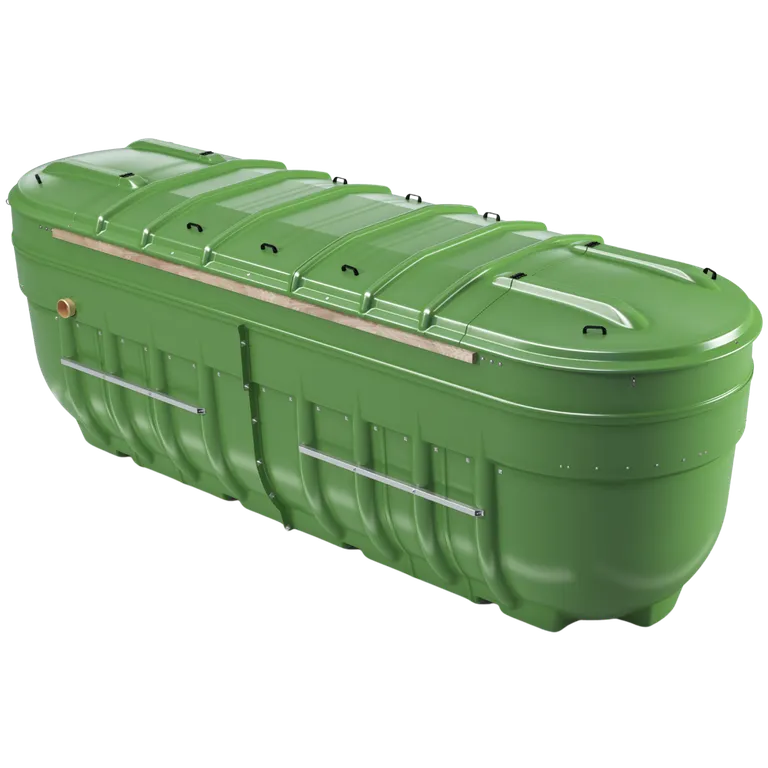

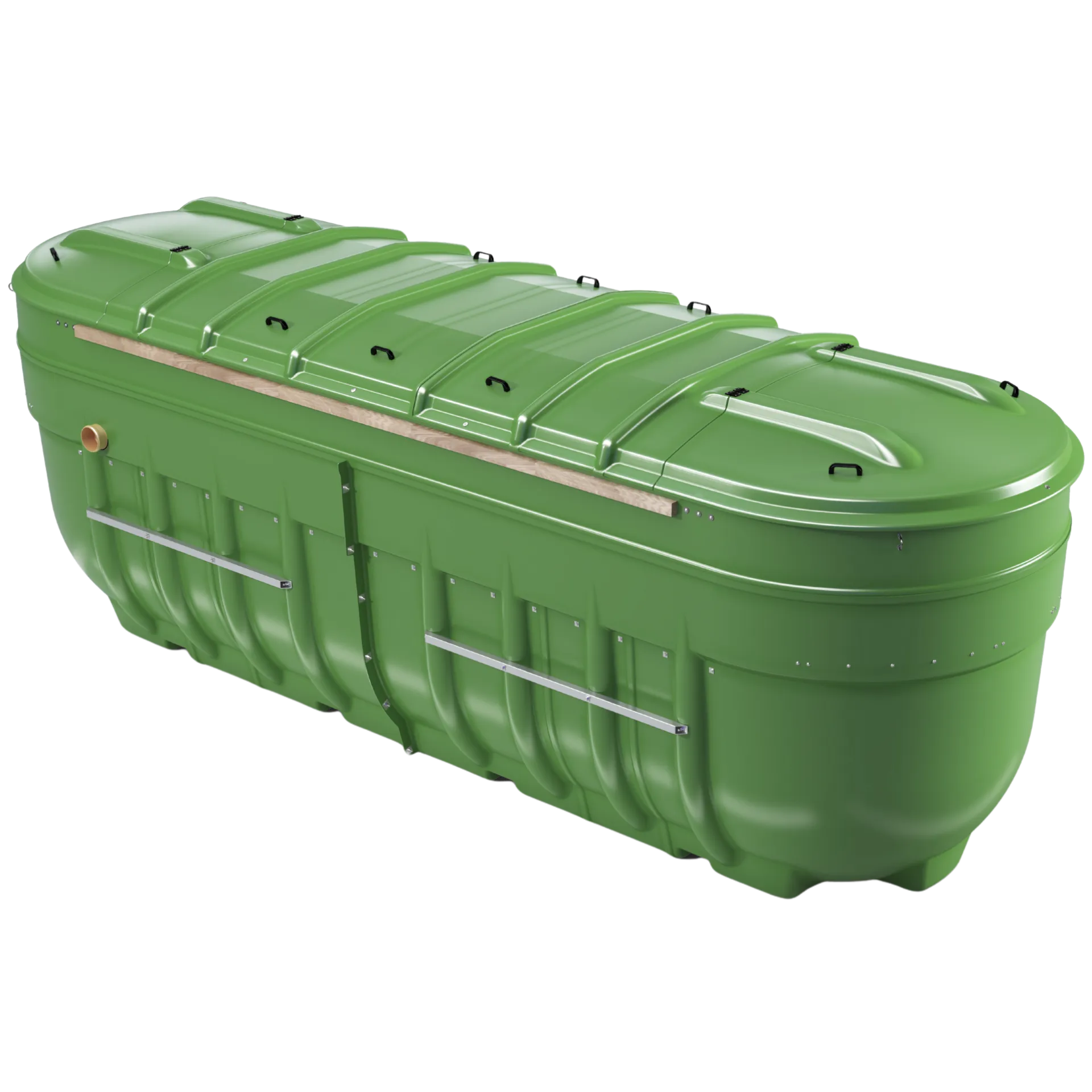

Klargester BioDisc®Large Sewage Treatment Plant
Product Information
Our Klargester BioDisc® is a single packaged system, which offers affordable running costs due to its design and operational efficiencies. It is suitable for a variety of commercial applications – from hotels to offices, pubs to campsites and domestic wastewater from industrial buildings. The Klargester BioDisc® is also fully compliant with European Standards, including EN 12255 and EN 12566-3 for up to 50 PE systems.
Product Highlights
- Odour free tested in accordance with EN13725 (report available on request)

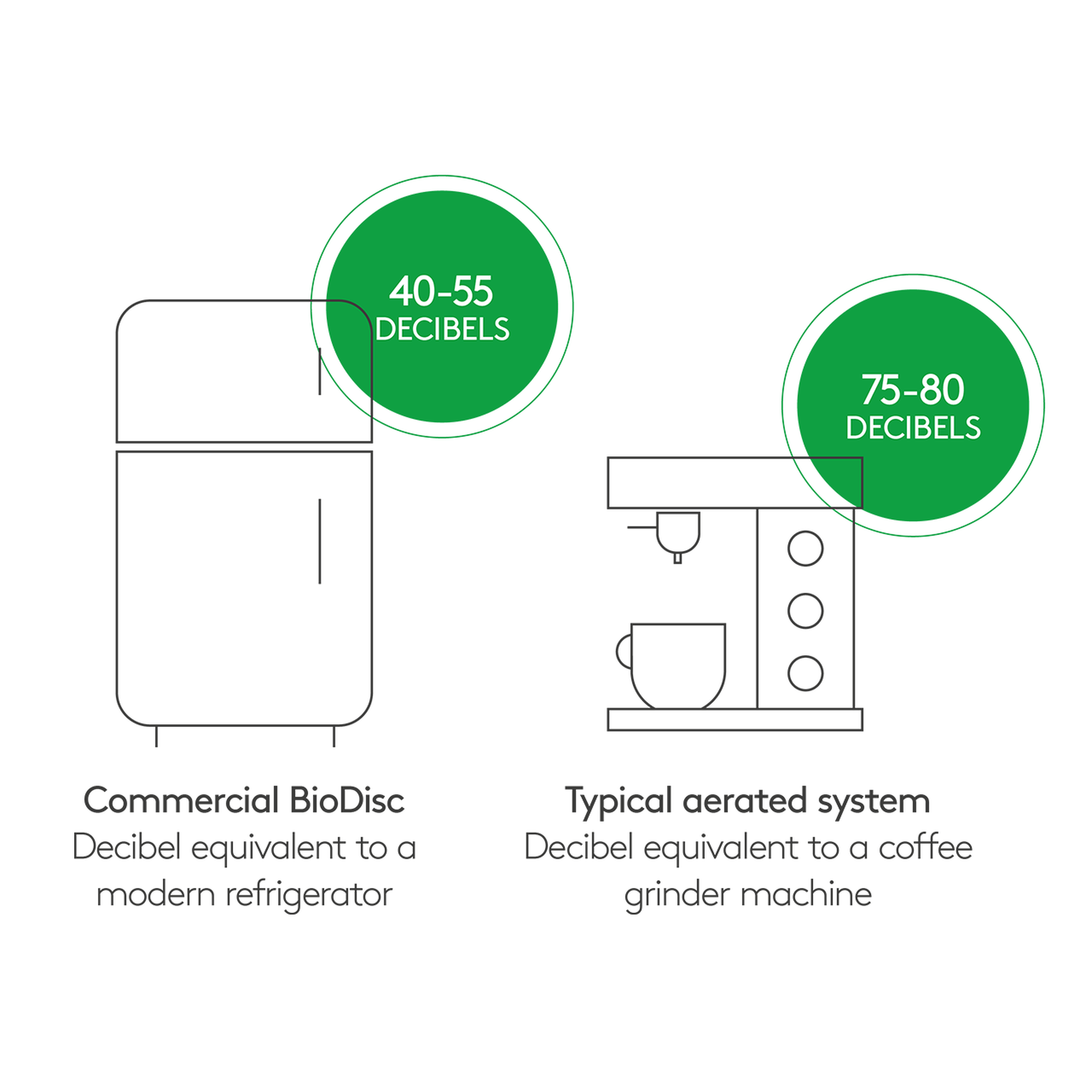

- Low noise – utilising a rotating disc as opposed to noisy blowers

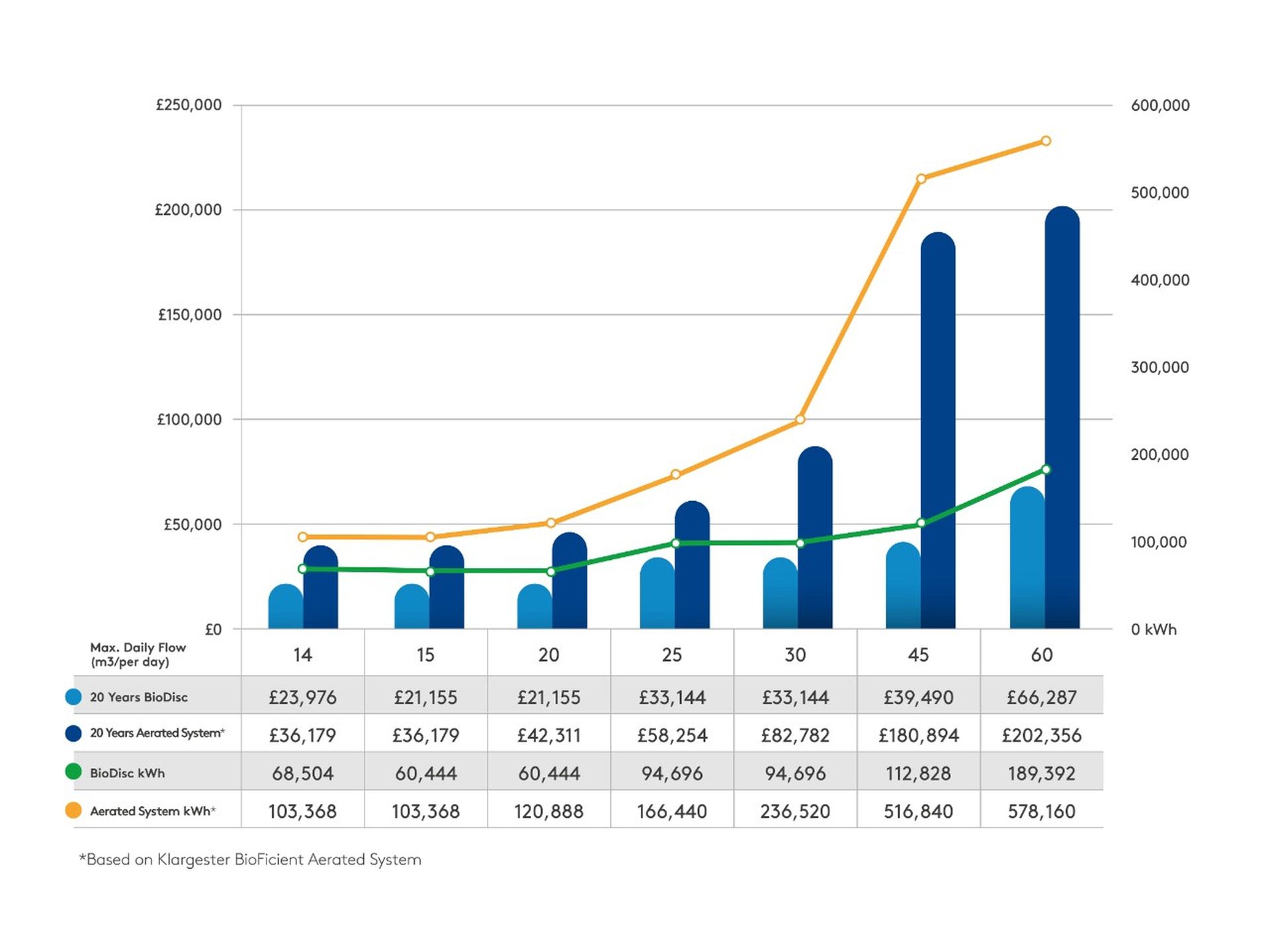

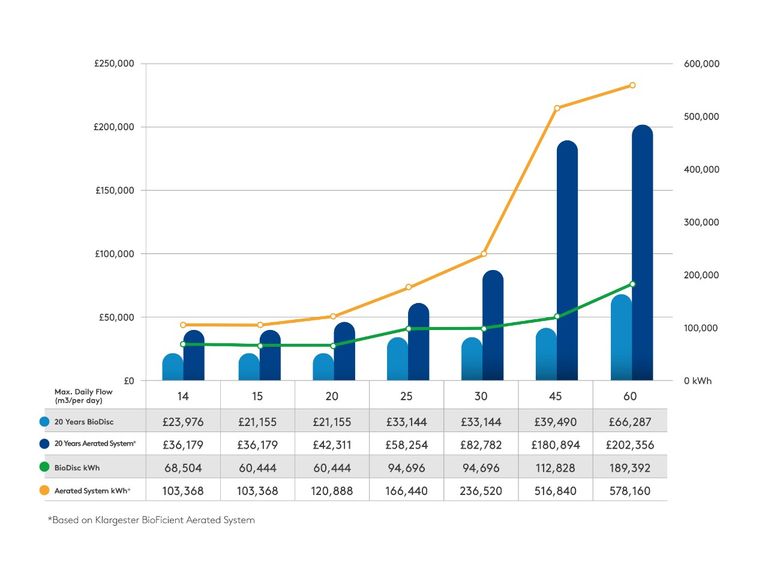

- Affordable running costs over the expected 20 year lifetime of the product
- Tailored technical support from our expert teams
- Single piece tank delivered directly on site
- Flow Management Continuous treatment even with over or under load
- Fully removable covers for simple maintenance
- Variable inlet invert/outlet options
- Designed to EN 12255 standards
- 3-year warranty period (Terms apply)
- A fully managed package which includes; design, installation, smart commissioning, service and monitoring
- SmartServ Pro remote monitoring option available (as an optional extra)
- Free site visit to help select the model to meet your needs - email klargester-web@kingspan.com
Technical Information
Specification
| Unit reference | BD | BE | BF | BG | BJ | BK | BL | BM | BN |
|---|---|---|---|---|---|---|---|---|---|
| PE | 25 | 35 | 50 | ||||||
| Maximum daily BOD (kg) | 4.2 | 6 | 7.5 | 9 | 13.5 | 18 | |||
| Maximum daily flow (m3) | 14 | 20 | 25 | 30 | 45 | 60 | |||
| Ø/Width (mm) | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Length (mm) | 3340 | 3340 | 4345 | 5235 | 7755 | 7755 | 7755 | 10420 | 13100 |
| Inlet invert depth (mm) | 600/1100 | 600/1100 | 600/1100 | 600/1100 | 600/1000 | 600/1000 | 600/1000 | 600/1000 | 600/1000 |
| Depth below invert inlet (mm) | 1820 | 1820 | 1820 | 1820 | 1790 | 1790 | 1790 | 1790 | 1790 |
| Outlet invert depth (mm) | 1735 | 1735 | 1720 | 700/1200 | 750/1150 | 750/1150 | 750/1150 | 750/1150 | 750/1150 |
| Overall height (mm) | 2825/3325 | 2825/3325 | 2825/3325 | 2825/3325 | 2830/3230 | 2830/3230 | 2830/3230 | 2830/3230 | 2830/3230 |
| Height to rim of cover (mm) | 2485/2985 | 2485/2985 | 2485/2985 | 2845/2985 | 2490/2890 | 2490/2890 | 2490/2890 | 2490/2890 | 2490/2890 |
| Empty weight (kg) | 1100/1200 | 1100/1300 | 1315/1465 | 1660/1810 | 3100/3120 | 3200/3220 | 3300/3320 | 4200/4250 | 5500/5650 |
| Standard power supply | 1 phase | 1 phase | 1 phase | 1 phase | 1 phase | 1 phase | 1 phase | 1 phase | 1 phase |
| Motor Rating - 1 Phase (watts) | 253 | 253 | 299 | 180 | 250 | 370 | 370 | 550 | 2 x 370 |
| Full load current 1 phase (amps) | 1.1 | 1.1 | 1.3 | 1.6 | 1.5 | 2.35 | 2.35 | 2.8 | 2 x 2.35 |
| Optional power supply | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase |
| Motor Rating - 3 Phase (Watts) | 90 | 90 | 250 | 180 | 250 | 370 | 370 | 550 | 2 x 370 |
| Full load current 3 phase (amps) | 0.38 | 0.38 | 0.42 | 0.63 | 0.88 | 1.35 | 1.35 | 1.5 | 2 x 2.35 |
| Sludge return pump rating (watts) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Legislation
- Meets the requirements of EN 12566 -3 (BD - BF)
- Meets the requirements of EN 12255 (BG-BN)
Applications
- Pubs, Hotels & Restaurants
- Schools
- Nursing / Residential homes
- Housing developments
- Holiday and Caravan/Camping Sites
- Residential Parks (Mobile or static caravan sites)
- Factories, Offices, Industrial Estates & Commercial Business Parks
- Construction Sites - Welfare Facilities
- Distribution Centres
- Leisure Parks/Attractions
- Sports/Health Centres
- Energy from Waste Sites
*Commercial kitchens and catering require the use of grease traps before the treatment system.
Effluent Quality
This product is designed to achieve an effluent quality of 20mg/l BOD5, 30mg/l Suspended Solids and 20mg/l Ammonia. The Klargester BioDisc® can also be configured to produce better standards of effluent quality with Ammonia levels as low as 5mg/l being achievable. For expert advice for design, support and further information call 01296 633033.
Applications, where commercial catering takes place, will generate significant volumes of grease which should not be allowed to enter any treatment system.
The treatment of sewage from applications other than domestic housing can often demand special precautions, therefore specialist advice should be sought from Klargester.
Contact the Klargester Team
Whether you're planning a new project, looking for product guidance or need support with an existing system, our team is here to help.
How does the BioDisc Large Sewage Treatment Work?
Discover how the Klargester BioDisc® Large Sewage Treatment Plant efficiently treats wastewater for hotels, offices, pubs, campsites, and industrial sites.
Kingspan Service
Commercial Sewage Treatment Plant Service & Maintenance
No one wants the hassle of dealing with a backed-up wastewater treatment plant. We can help ensure your treatment plant operates well and is non-polluting with our service plans.
Smart Monitoring
Stay Connected with KNECT Pro
Monitor, manage, and optimise performance in real time with our advanced range of telemetry solutions. Our smart monitoring systems keep you connected to your Klargester product - delivering instant insights, early alerts, and peace of mind from any location.
Frequently Asked Questions

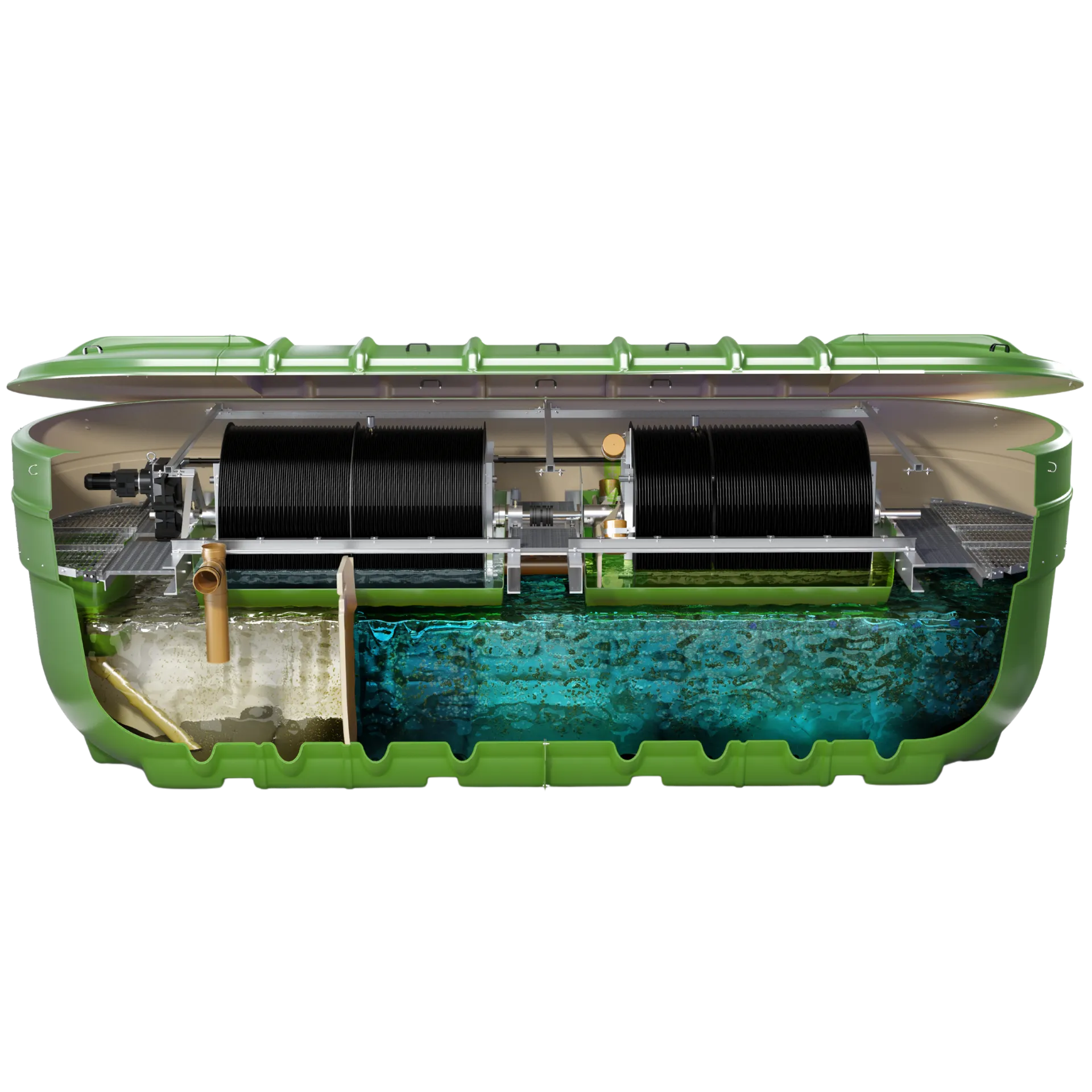

What are the benefits of the Klargester BioDisc rotor design?
The well established Klargester rotor design is:
- Compact and structurally sound
- Designed and built for long life without the need for rotor maintenance often associated with sectional bolted rotor assemblies
Why is the Klargester BioDisc® known for its low operating costs?
The Klargester BioDisc® has a reputation of reliability and low operational costs:
- Designed to run from either a single-phase or 3 phase power source
- Require 120 to 370-watt motors

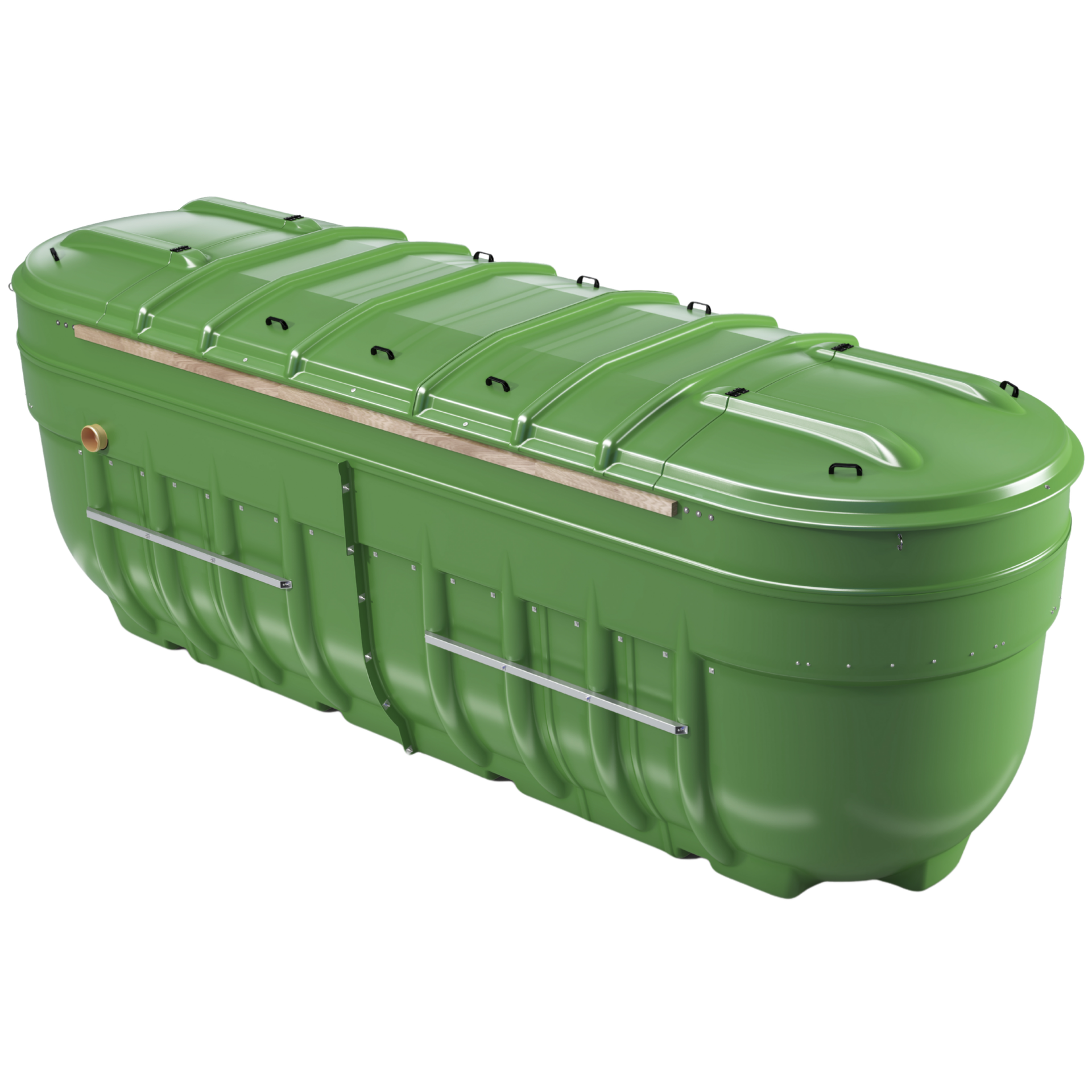

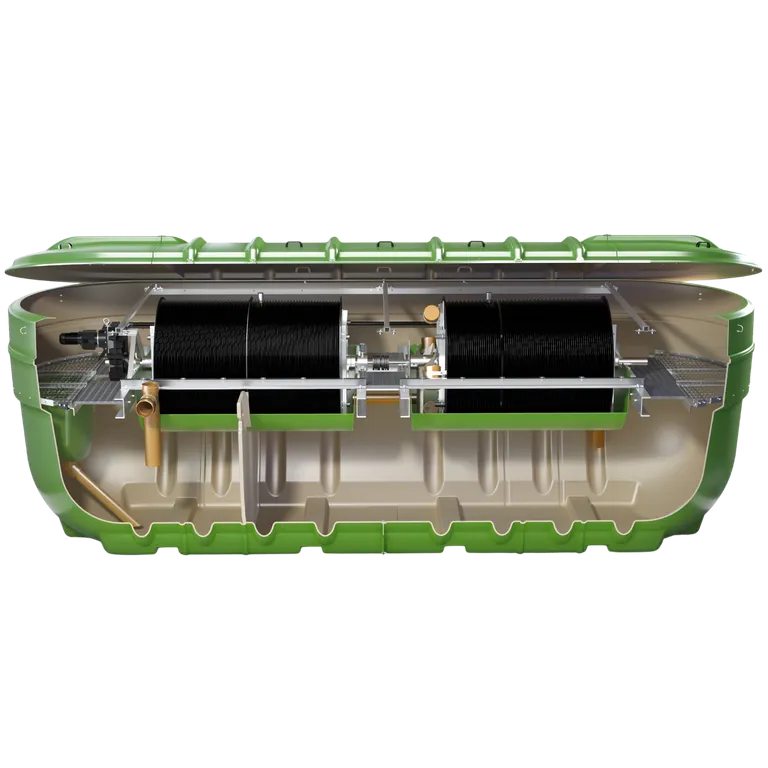

What are the benefits of the Klargester BioDisc® monocoque casing?
All Klargester BioDisc® in this range utilise the same casing, providing:
- Lightweight, yet robust and structurally strong GRP construction for easy on-site handling
- Steel cradle integrated into the casing provides a stable platform for mechanical components
- Factory pre-engineered to exacting Klargester standards, ensuring consistently high quality and eliminating on-site assembly
- Full-length ports provide quick and easy access for desludging
- Up to 1000mm invert depth, with only 150mm head loss through the plant
- Variable desludging/emptying cycles
What are the safety features of the Klargester BioDisc?
- Low profile lockable covers
- Fully removable covers to ease maintenance
- Full platform access to motor and bearings
- Secure lockable control panel
- Integrated loss of rotation alarm (optional on BF-BG, standard on BH-BM)
- Local and remote alarm options available with SmartServ Pro
How can Kingspan Service help me keep my Klargester BioDisc® compliant and operating efficiently?
Avoid pollution and fines with effective monitoring and maintenance planning from Kingspan Service. Our SmartServ Pro remote asset monitoring solution can be installed on all new and existing sewage treatment plants, allowing you to monitor their status anytime, anywhere via your phone or computer. In addition to this, we offer service and maintenance packages to ensure your Klargester BioDisc continues to perform optimally, prevent blockages and meet local legislative requirements.
