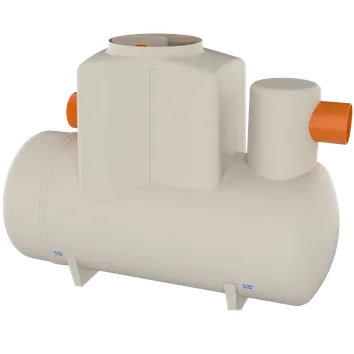

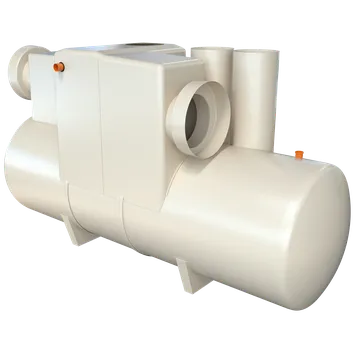

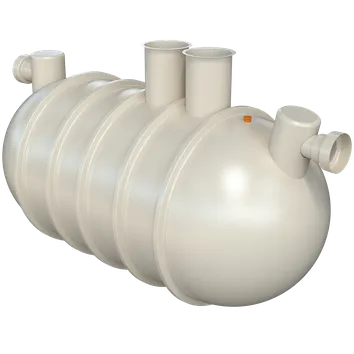

Klargester AquaOilFull Retention MDPE & Full Retention GRP Separator
Product Information
Our Klargester full retention separators have been designed for use in high-risk areas, such as; roadways, fuel depots and car parks. These surface water separators treat the full flow water in these areas and offer a reliable oil and silt separating solution.
Product Highlights
- Can treat the equivalent flow of 65mm/hr rainfall
- This full retention interceptor unit is available in over 20 different specifications
- Designed for easy installation, saving you time and money
- Third-party certified to EN858 - 1 for peace of mind
- Fitted inlet/outlet connections & vent points within necks
- Maintenance from ground level
- GRP - PE Model construction - high strength and durability
- CE-marked
- Heavy duty tanks available up to 5.5m inlet invert (NSFA80 - NSFA205 models only, subject to following the installation guidelines)
- SmartServ Pro remote monitoring solution available for added peace of mind (optional extra)
- Affordable service and maintenance plans are available
- Free site visit to help select the model to meet your needs - email klargester-web@kingspan.com
Technical Information
Specification
Full retention separators treat the full flow that can be delivered by the drainage system, which is normally equivalent to the flow generated by a rainfall intensity of 65mm/hr. On large sites, some short term flooding may be an acceptable means of limiting the flow rate and hence the size of full retention systems.
| Product Code | Flow (l/s) | Drainage Area (m2) | Silt Capacity (ltrs) | Oil Capacity (ltrs) | Length (mm) | Diameter (mm) | Manhole Cover Dimensions (mm) | Base to Inlet Invert (mm) | Base to Outlet invert (mm) | Min. Inlet Invert (mm) | Std Pipework Diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NSFP003 | 3 | 170 | 300 | 30 | 1700 | 1350 | 600 | 1410 | 1335 | 550 | 160 |
| NSFP006 | 6 | 335 | 600 | 60 | 1700 | 1350 | 600 | 1410 | 1335 | 550 | 160 |
| NSFA010 | 10 | 555 | 1000 | 100 | 2610 | 1225 | 600 | 1050 | 1000 | 500 | 200 |
| NSFA015 | 15 | 835 | 1500 | 150 | 3910 | 1225 | 600 | 1050 | 1000 | 500 | 200 |
| NSFA020 | 20 | 1115 | 2000 | 200 | 3230 | 2010 | 600 | 1810 | 1760 | 1000 | 315 |
| NSFA030 | 30 | 1670 | 3000 | 300 | 3960 | 2010 | 600 | 1810 | 1760 | 1000 | 315 |
| NSFA040 | 40 | 2225 | 4000 | 400 | 4750 | 2010 | 600 | 1810 | 1760 | 1000 | 315 |
| NSFA050 | 50 | 2780 | 5000 | 500 | 5790 | 2010 | 600 | 1810 | 1760 | 1000 | 315 |
| NSFA065 | 65 | 3610 | 6500 | 650 | 7360 | 2010 | 600 | 1810 | 1760 | 1000 | 315 |
| NSFA080 | 80 | 4445 | 8000 | 800 | 5744 | 2820 | 600 | 2500 | 2450 | 1000 | 315 |
| NSFA100 | 100 | 5560 | 10000 | 1000 | 6200 | 2820 | 600 | 2500 | 2450 | 1000 | 400 |
| NSFA125 | 125 | 6945 | 12500 | 1250 | 7365 | 2820 | 600 | 2500 | 2450 | 1000 | 450 |
| NSFA150 | 150 | 8335 | 15000 | 1500 | 8675 | 2820 | 600 | 2550 | 2450 | 1000 | 525 |
| NSFA175 | 175 | 9725 | 17500 | 1750 | 9975 | 2820 | 600 | 2550 | 2450 | 1000 | 525 |
| NSFA200 | 200 | 11110 | 20000 | 2000 | 11280 | 2820 | 600 | 2550 | 2450 | 1000 | 600 |
| NSFA210 | 210 | 11667 | 21000 | 2100 | 11994 | 2820 | 600 | 2550 | 2450 | 1000 | 600 |
| NSFA225 | 225 | 12500 | 22500 | 2250 | 12766 | 2820 | 600 | 2550 | 2450 | 1000 | 600 |
| NSFA240 | 240 | 13333 | 24000 | 2400 | 13528 | 2820 | 600 | 2550 | 2450 | 1000 | 600 |
| NSFA255 | 255 | 14167 | 25500 | 2550 | 14300 | 2820 | 600 | 2550 | 2450 | 1000 | 600 |
| NSFA270 | 270 | 15000 | 27000 | 2700 | 15071 | 2820 | 600 | 2550 | 2450 | 1000 | 600 |
| NSFA285 | 285 | 15833 | 28500 | 2850 | 15833 | 2820 | 600 | 2550 | 2450 | 1000 | 600 |
Applications
- Garage Forecourts
- Car Parks
- Workshops
- Supermarket / Shopping Centres
- Distribution Warehouses
- Car Wash Bays
- Scrap Yards
- Car Garages
- Fuel Storage Sites
- Distribution/Haulage Centres
- Waste Transfer Sites
- Business/Commercial Parks/Industrial Estate
Legislation
- Third-party certified to EN858 - 1 for peace of mind
- CE-marked
