Klargester BioFicient PRODomestic Sewage Treatment Plant
Product Information

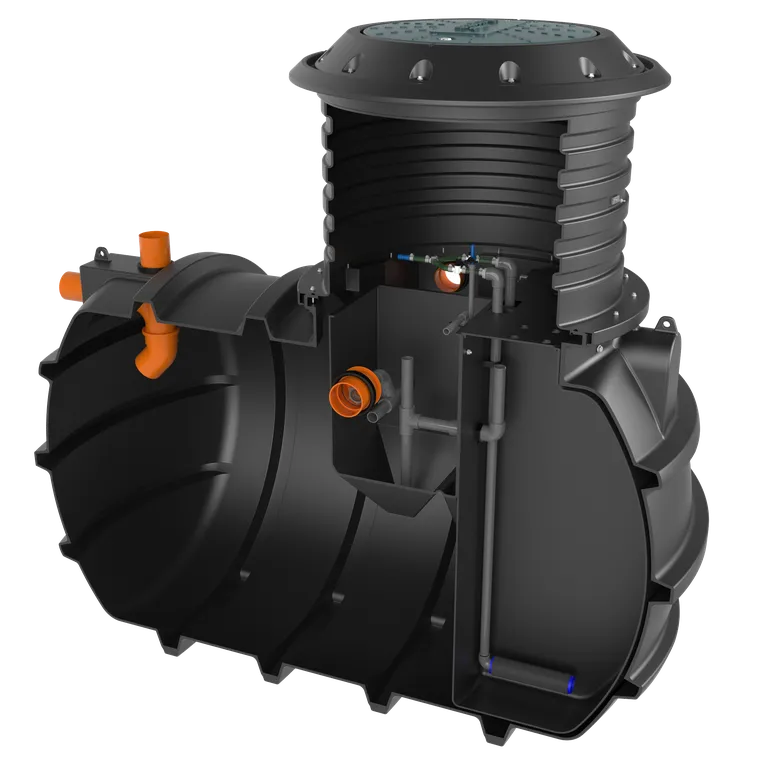

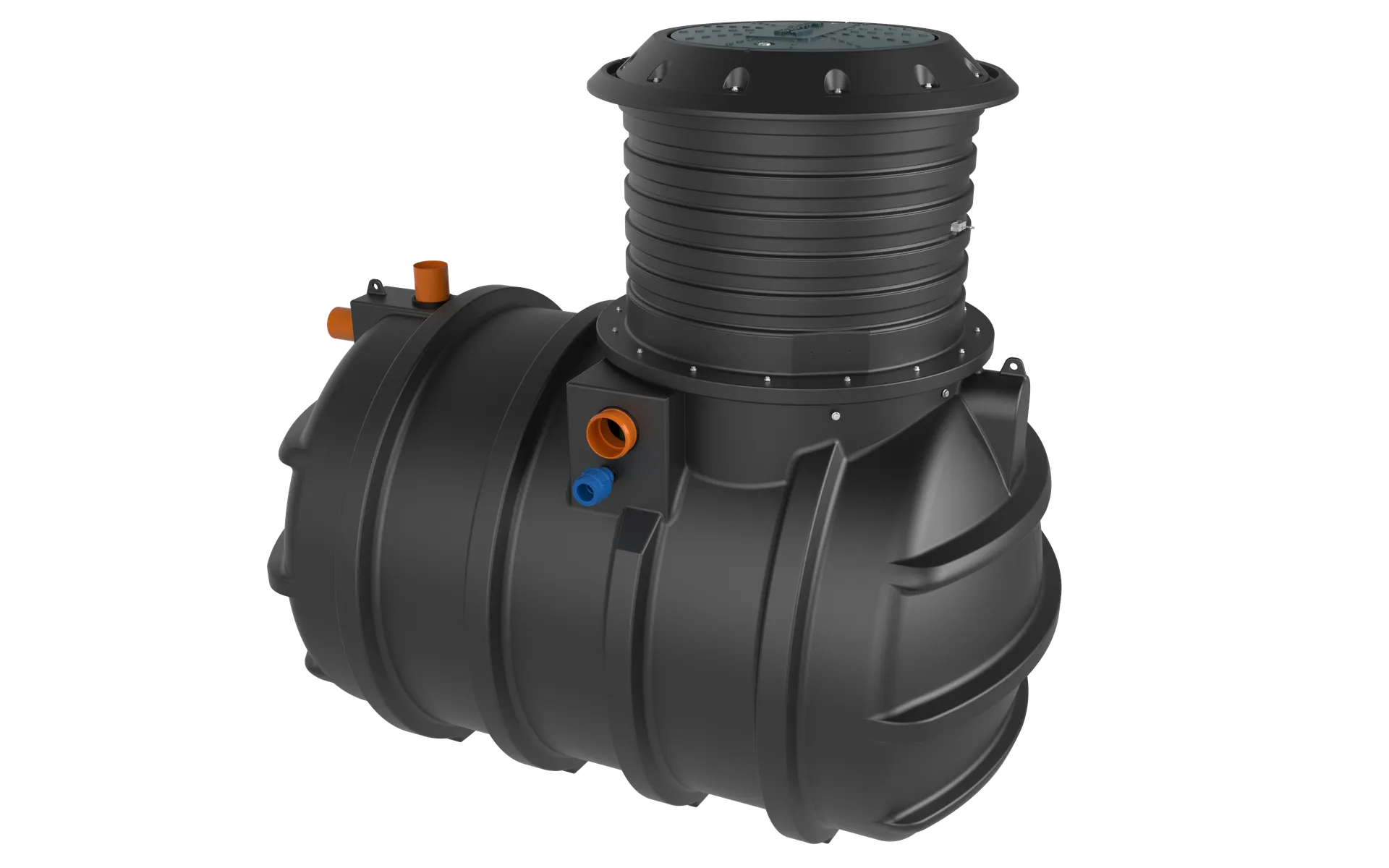

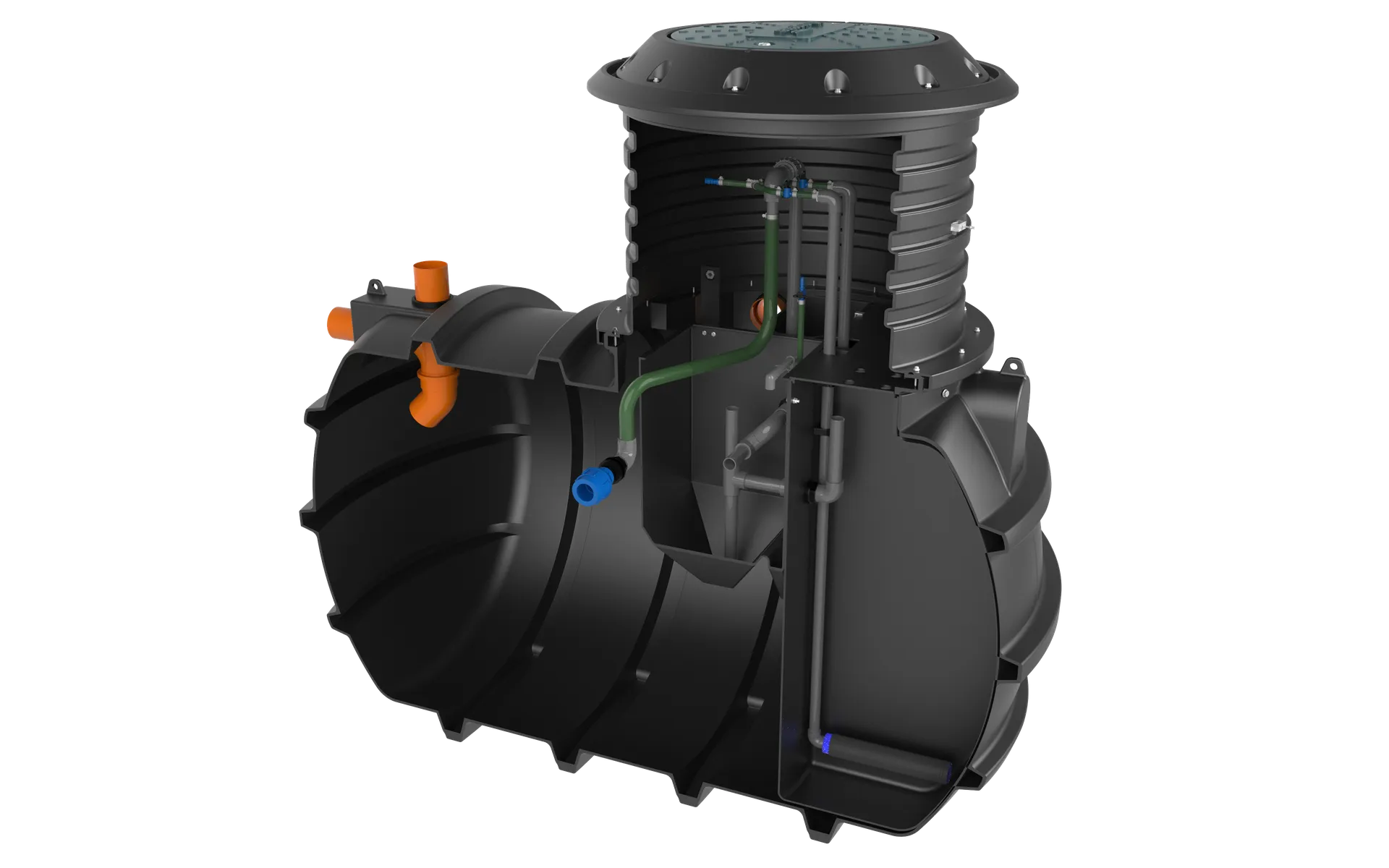

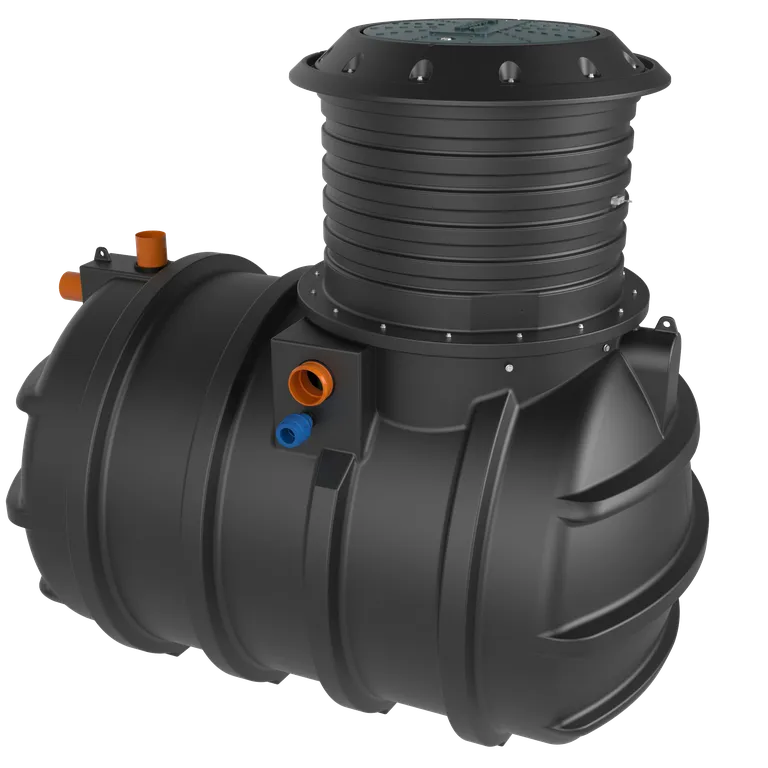

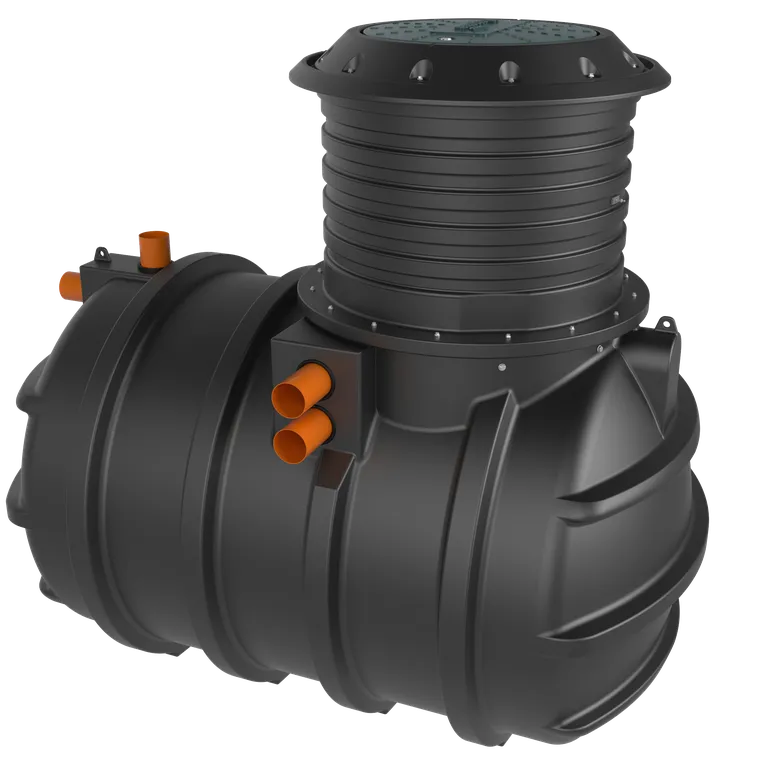

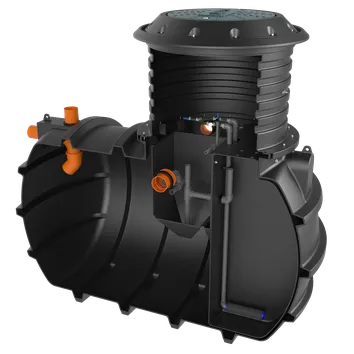

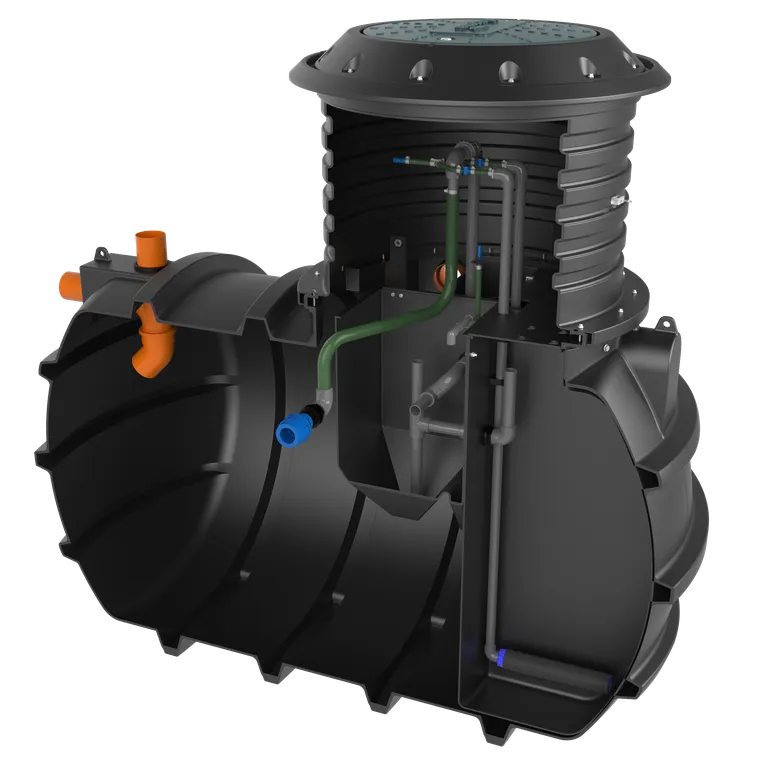

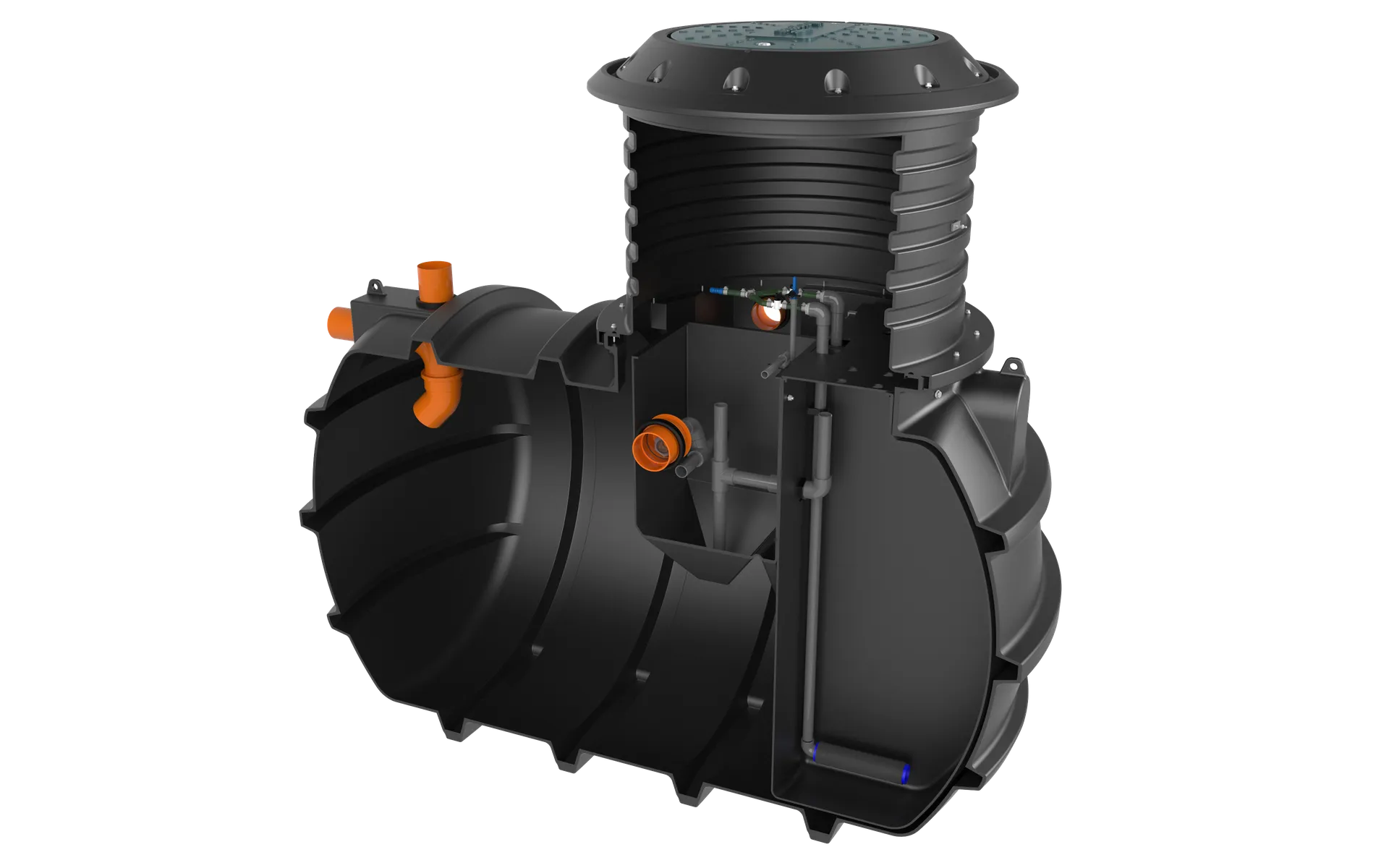

The Klargester BioFicient PRO wastewater treatment system is a complete domestic sewage treatment solution, designed for reliable, efficient performance, with flexible installation options to suit a wide range of sites. Supplied with a control panel, alarm and beacon as standard, the BioFicient PRO is a connectable system that enables early fault diagnosis and remote monitoring - delivering dependable wastewater treatment with greater peace of mind.
Product Highlights
- Suitable for shallow dig applications
- Invert options up to 2m (BioFicient 17 & 23 models and GRP tanks only)
- Suitable for installation in traffic areas (structural advice required)
- Low energy compressor
- Lightweight yet robust design
- A fully connectable solution - supplied with a control panel, alarm and beacon
- Third party tested EN 12566-3
- Efficient treatment technology & excellent ammonia reduction of 0.4mg/l
- 3 year warranty (Terms apply)
- Affordable commissioning and service plans available for extra peace of mind
- Free site visit to help select the model to meet your needs
Technical Information
Specification
| Model Reference | BioFicient 1 | BioFicient 3 | BioFicient 4 | BioFicient 5 | BioFicient 6 | BioFicient 17 | BioFicient 23 |
|---|---|---|---|---|---|---|---|
| Population Equivalent | 6 | 10 | 15 | 20 | 30 | 35 | 50 |
| Overall Diameter (mm) | 1,540 | 1,425 | 1,920 | 1,920 | 1,920 | 1,920 | 1,920 |
| Length (mm) | 2,500 | 3,770 | 3,230 | 4,390 | 6,220 | 7,381 | 9,312 |
| Depth (mm) | 1885-2795 | 1830/2330/2830 | 2300/2800/3300 | 2300/2800/3300 | 2300/2800/3300 | 2275/2775/3275/3775 | 2275/2775/3275/3775 |
| Inlet Invert (mm) | 590-1500 (Gravity) 1060-1500 (IPS) | 500/1000/1500 | 500/1000/1500 | 500/1000/1500 | 500/1000/1500 | 500/1000/1500/2000 | 500/1000/1500/2000 |
| Outlet Invert (mm) - Gravity | 690-1600 | 620/1200/1620 | 630/1130/1630 | 630/1130/1630 | 630/1130/1630 | 600/1100/1600/2100 | 600/1100/1600/2100 |
| Outlet Invert (mm) - Pumped | 1155-1555 | 320 | 320 | Not Available | |||
| Material | MDPE | GRP | GRP | GRP | GRP | GRP | GRP |
| Blower Ratings | 50W | 95W | 115W | 180W | 225W | 270W | 270W |
| Product Weight (Kgs) | 285 | 300 | 450 | 550 | 740 | 1200 | 1450 |
| Cover Sizes | 600 | 1,440/900 | 1440/900+600* | 1440/900+600* | 1440/900+600* | 1000x600 + Ø600** | 1000x600 + Ø600** |
*BioFicient 4, 5, 6 have two shafts.
**BioFicient 17 & 23 have 3 No. 1000 x 600 + Ø600mm shafts.
Applications
Typical applications for the Klargester BioFicient PRO range:
- Single/Multiple Homes
- Barn Conversion
- Small Office Development
- Stable Yard Toilet
- Farms
- Offices
- Light Industrial Premises
Legislation
- Third party tested to EN12566-3
- CE Marked
Downloads
Data Sheets
Declaration of Performance (DoP)
How does a BioFicient PRO Work?

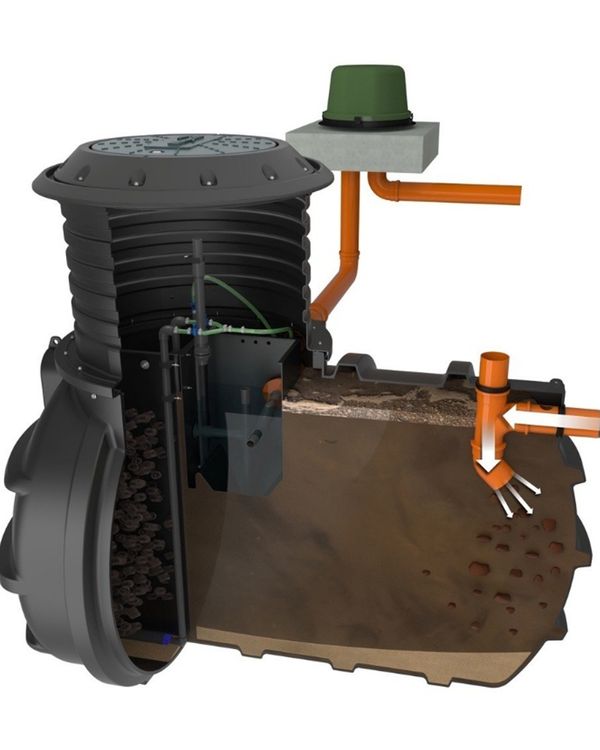

Primary Settlement Tank
Wastewater and sewage flows into the primary settlement tank where the large solids are retained for future removal.
How does a BioFicient PRO Work?

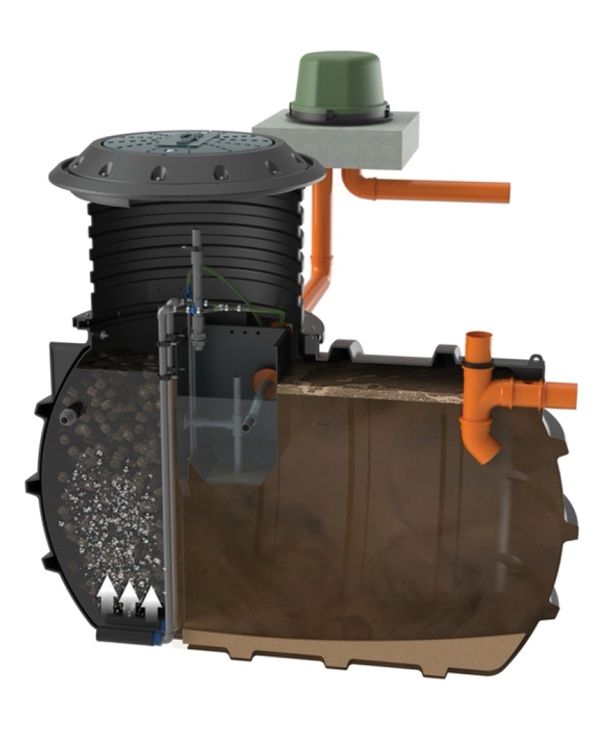

First Stage Biological Treatment
The settled liquor passes into Biozone 1 where the first stage of treatment occurs.
How does a BioFicient PRO Work?

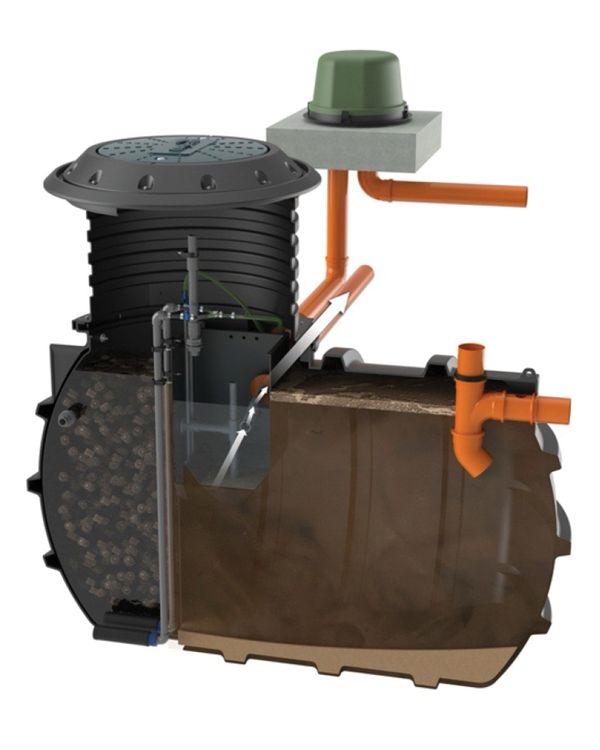

Second Stage Biological Treatment
The liquor is then fed forward at a controlled rate into Biozone 2 for further cleaning.
How does a BioFicient PRO Work?

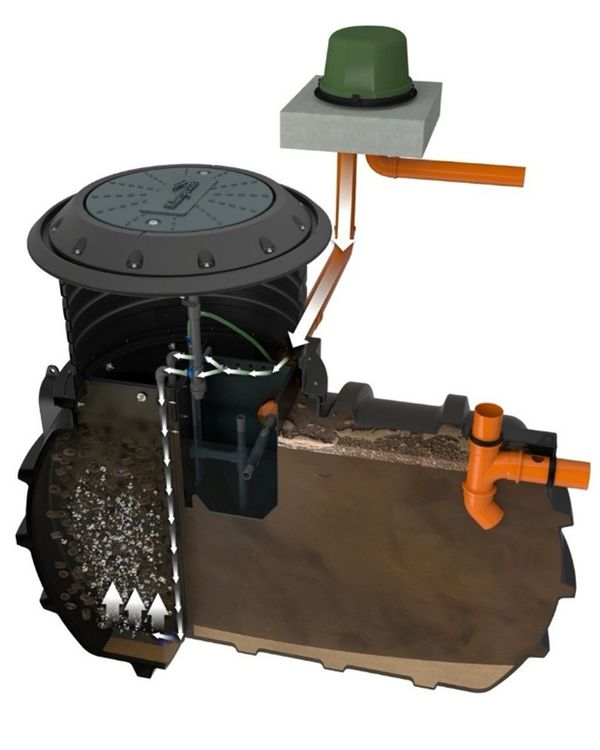

Final Settlement Tank
The clean liquid passes into the final settlement tank where it can be discharged to ground or water course.
