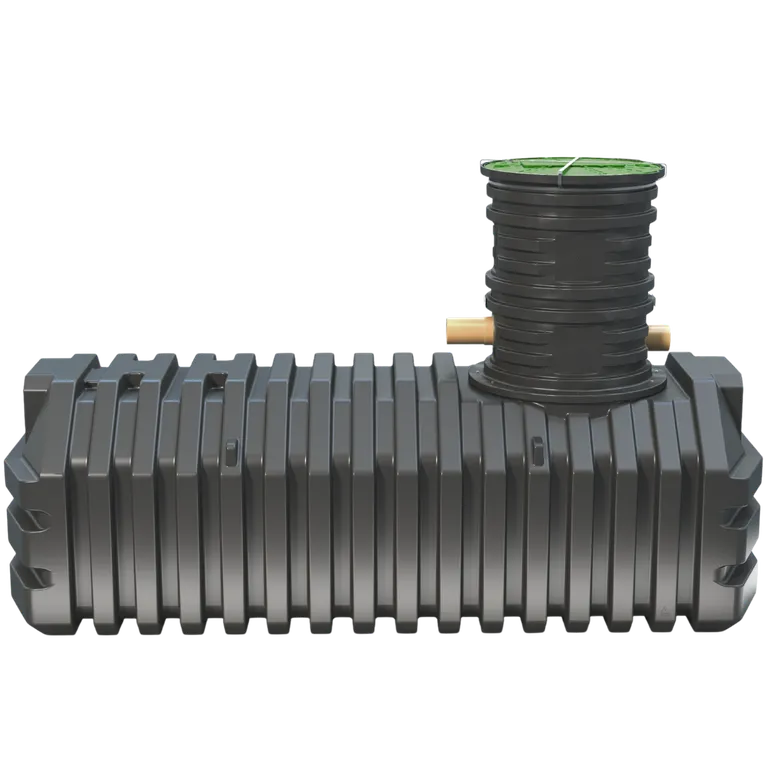

AquaHarvest Commercial Rainwater Harvesting
Our Klargester AquaHarvest products provides a fully integrated solution suitable for commercial buildings, vehicle washing facilities amongst other domestic and commercial settings
Klargester AquaHarvestDomestic Rainwater Harvesting
)
)
Product Information

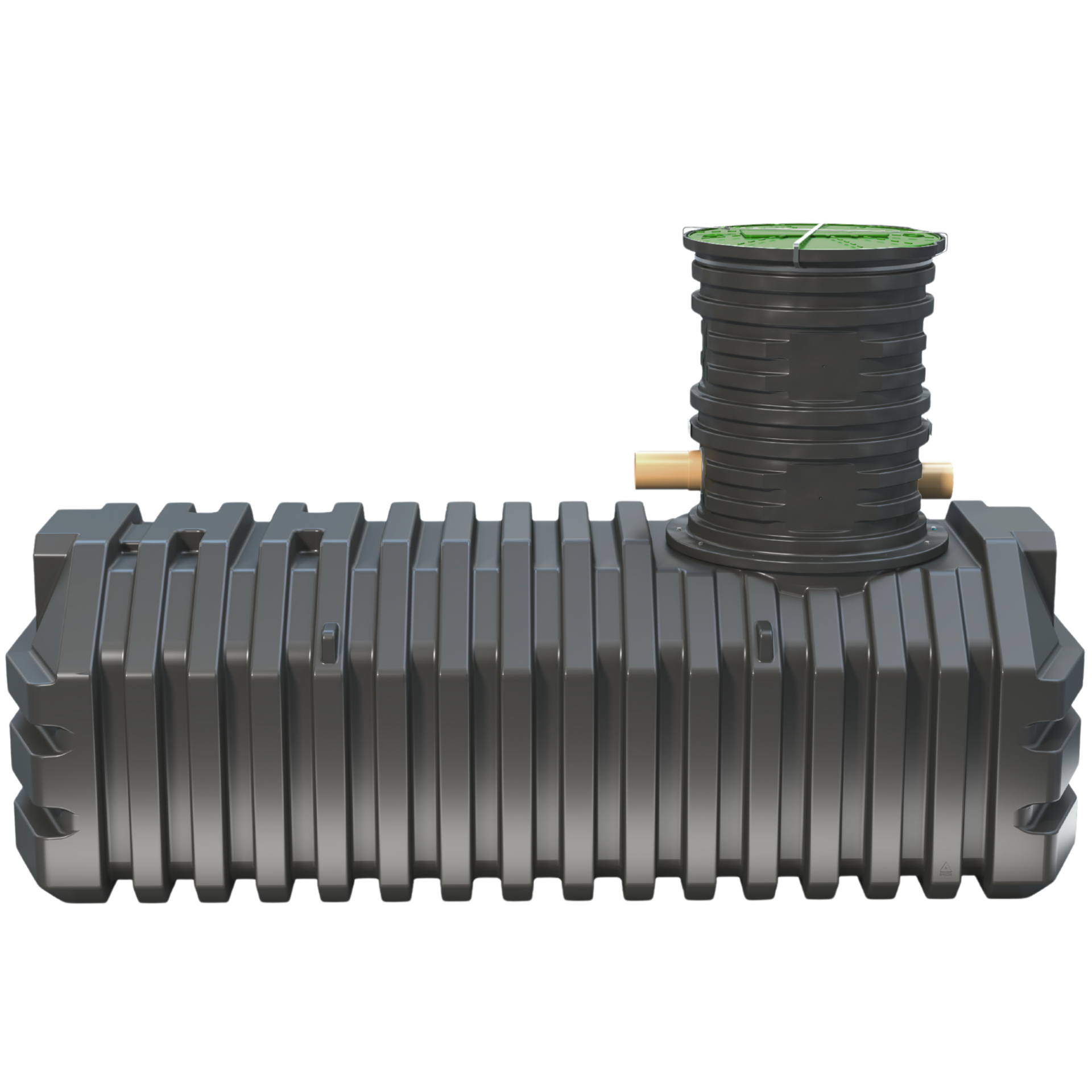

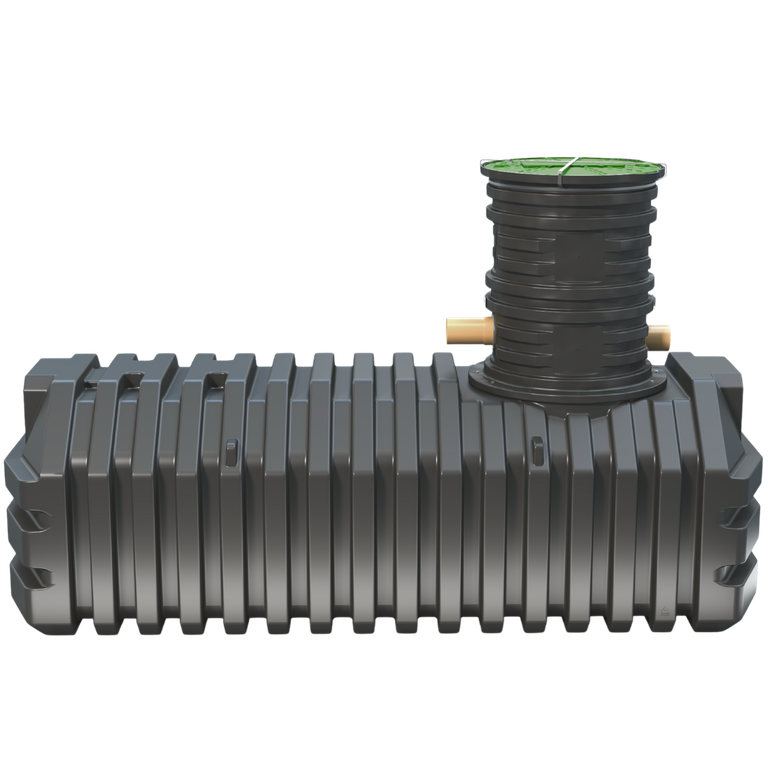

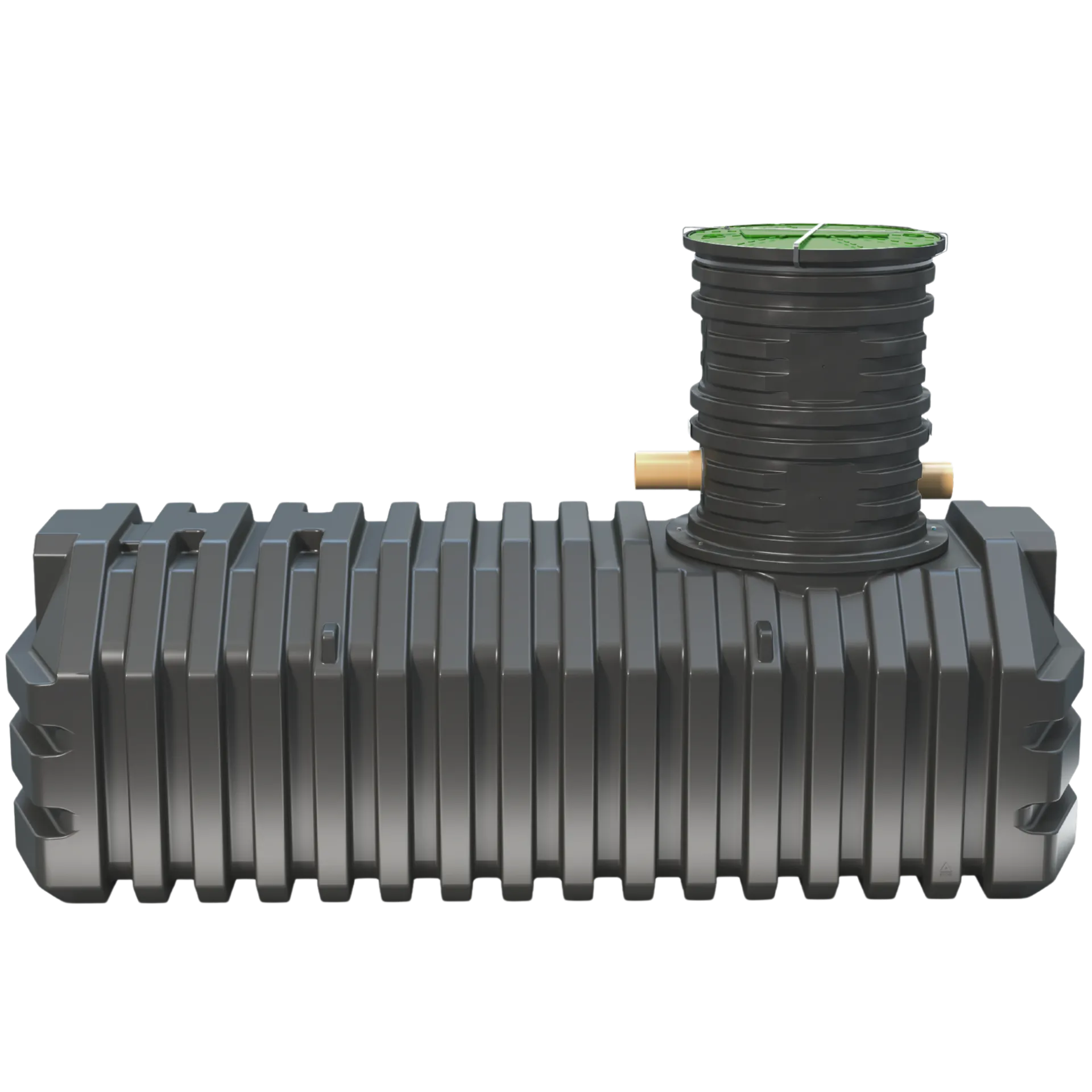

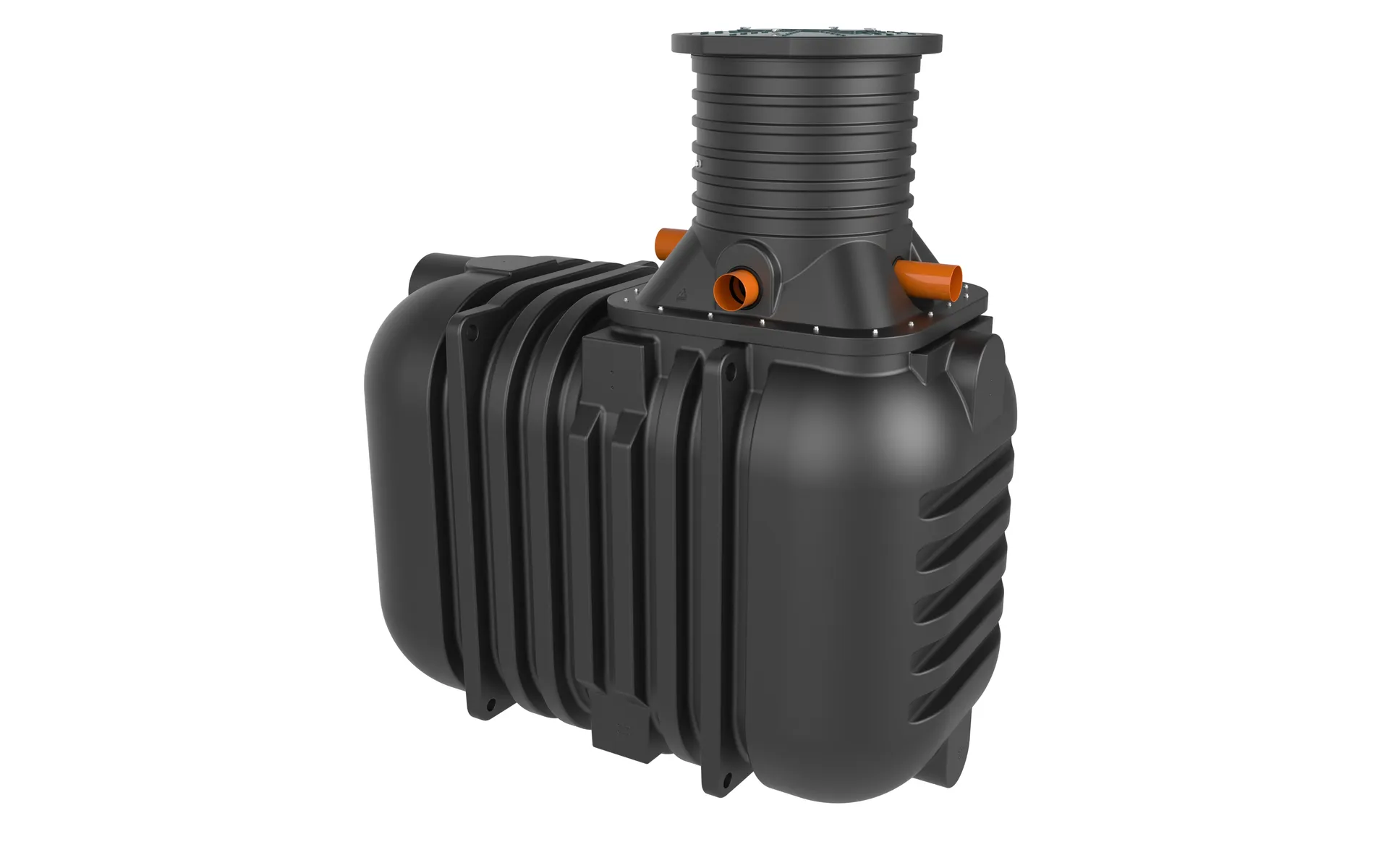

The new and improved Klargester AquaHarvest is a direct rainwater harvesting system designed for domestic applications where a header tank is impractical or space is limited. Manufactured from durable polyethylene, the system is particularly suited to homes with converted attic spaces. Filtered rainwater is pumped directly from the holding tank to the required appliances, providing an efficient and space-saving approach to domestic rainwater reuse.
Product Highlights
- Made from MDPE - light, durable and weatherproof
- Simple to install for reduced on-site installation time
- Available in two different sizes, ranging from 3,100L – 4,200L, covering roof areas < 110m² - < 140m²
- Four lifting points for stable lifting
- Trimmable neck with a 530mm – 740mm inlet invert
- Retaining bars to help reduce overall installation costs (optional extra)
- Fully compliant against EN 16941-1:2018 standard for peace of mind
- Easy to ready display panel included as standard, with early fault warnings and water supply status built in
- Features intelligent Grundfos pump for total reliability

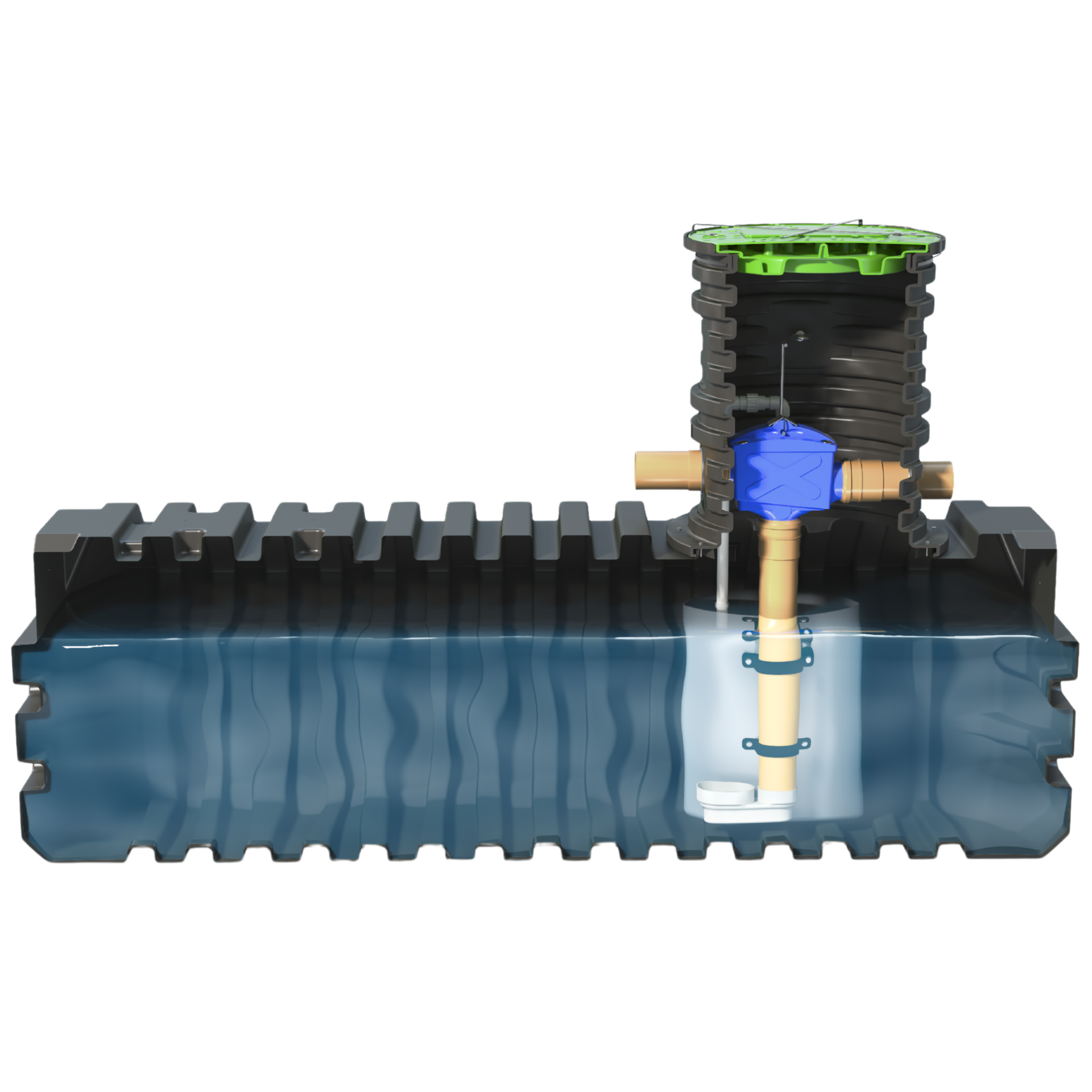

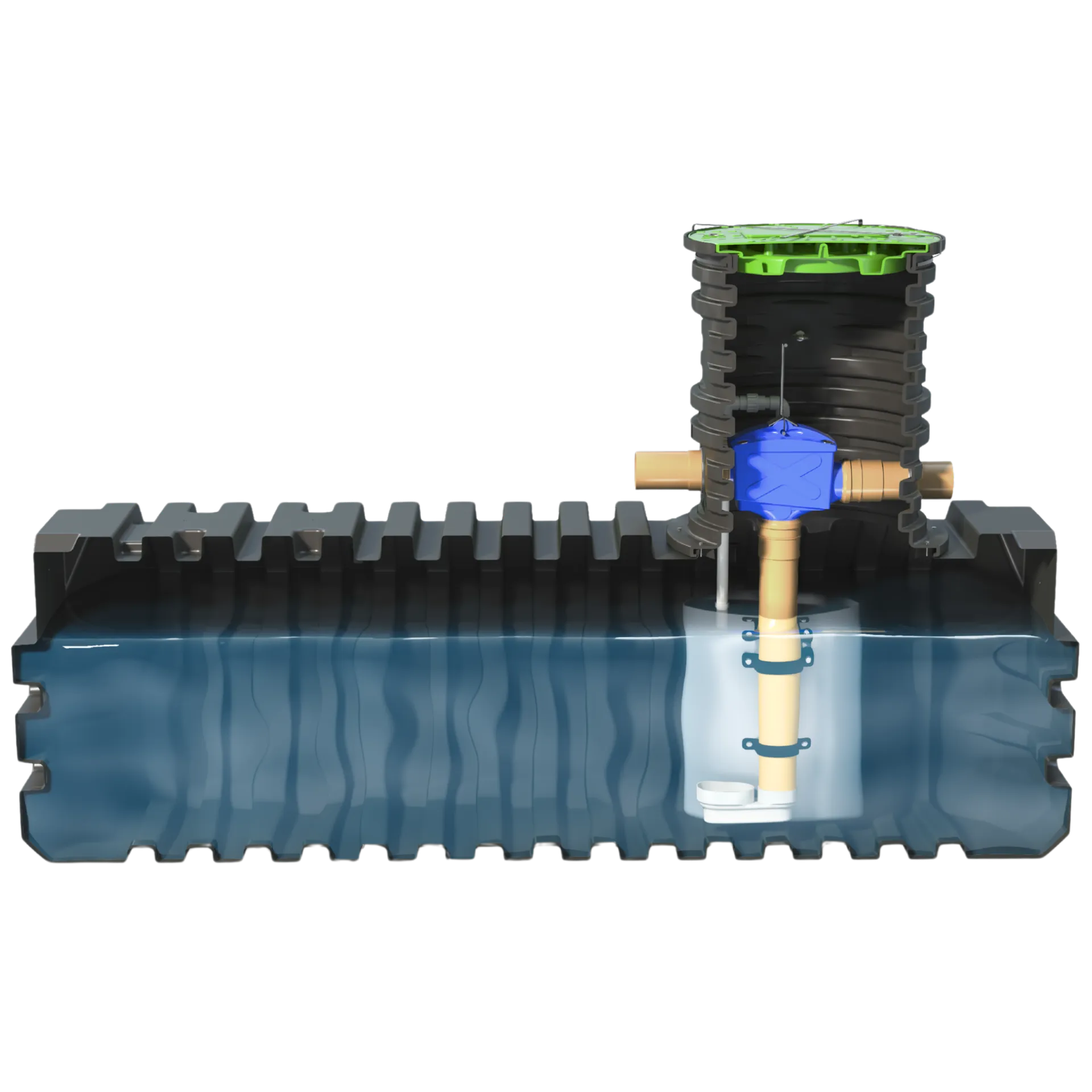

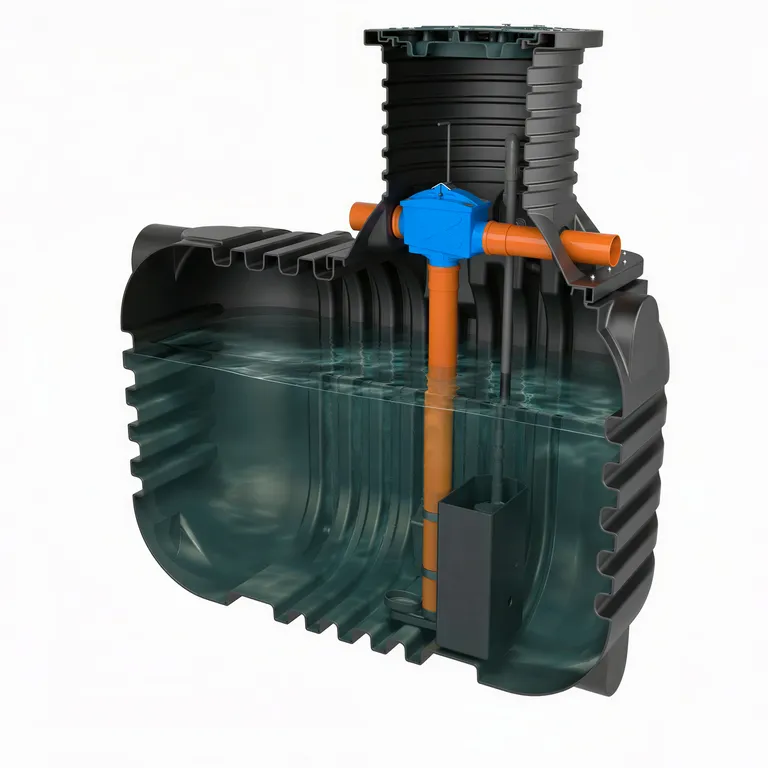

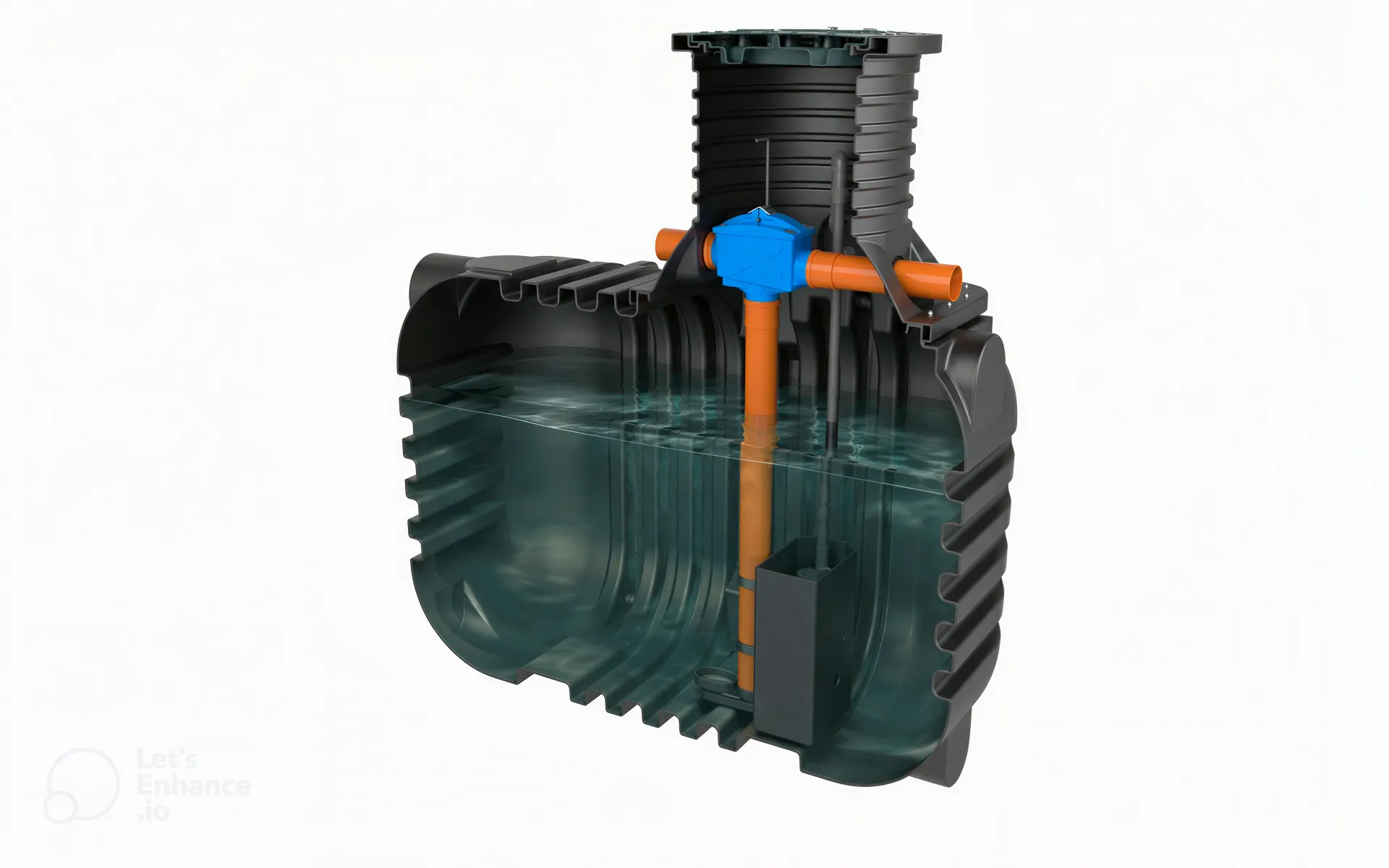

- Smart design featuring a calmed inlet at the bottom of the tank to prevent disturbance of any material at surface level
- Free site visit to help select the model to meet your needs - email klargester-web@kingspan.com
- 3 year warranty (terms apply)
Technical Information
Specification
| Model Reference | Roof Area Covered (m²) | Capacity (L) | Width (mm) | Length (mm) | Overall Height (mm) | Standard Inlet Invert (mm) | Overflow Invert (mm) |
|---|---|---|---|---|---|---|---|
| AQRWD110KSW | < 110 | 3,100 | 1,220 | 2,240 | 2,200-2,410 | 530 – 740* | 560 – 770* |
| AQRWD140KSW | < 140 | 4,200 | 1,220 | 2,690 | 2,340-2,550 | 530 – 740* | 560 – 770* |
*Trimmable neck
Certification + Accreditations
Fully compliant against EN 16941-1:2018 standard for peace of mind
Applications
- WC and urinal flushing
- Irrigation and landscape watering
- Garden watering
- Vehicle washing
- Domestic laundry
