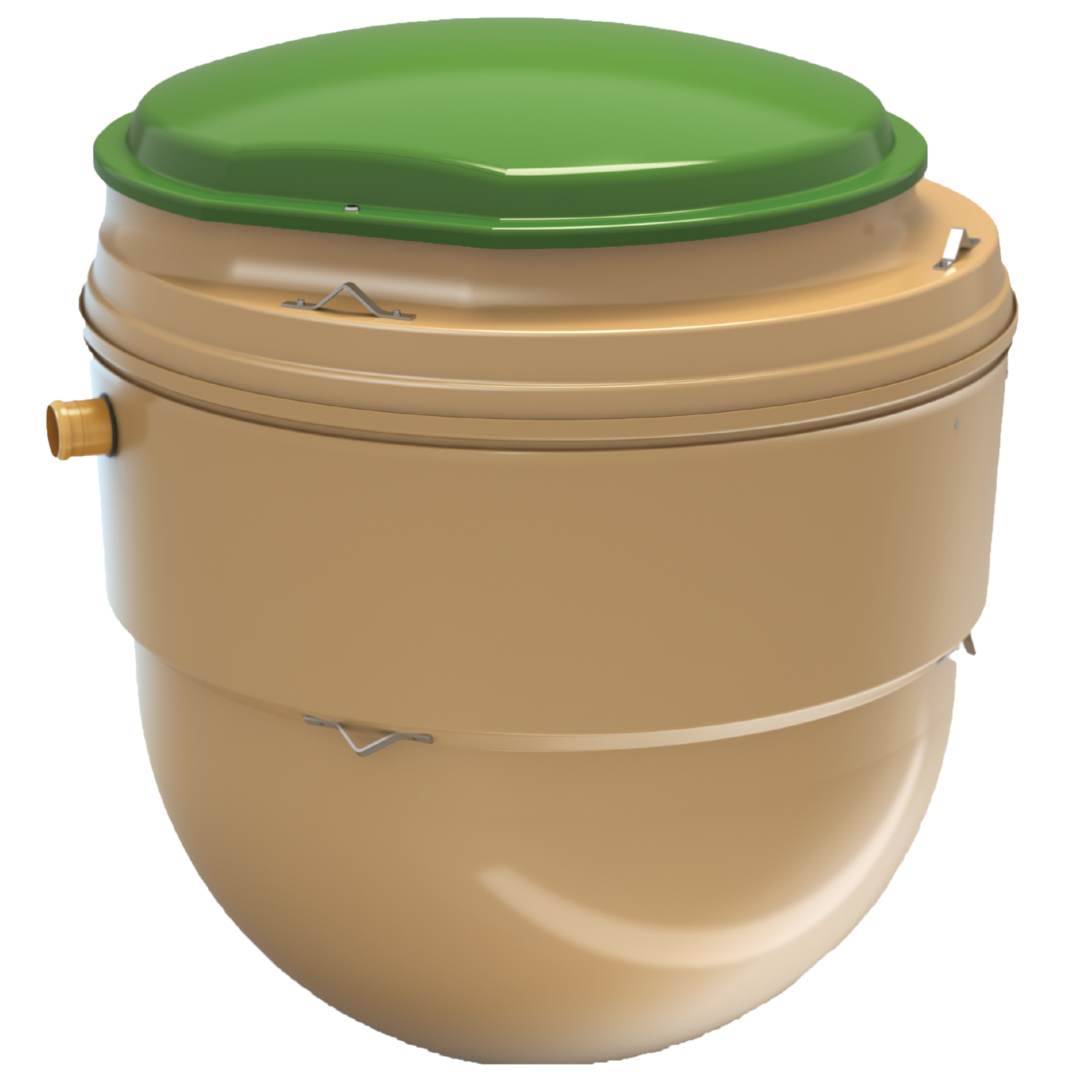

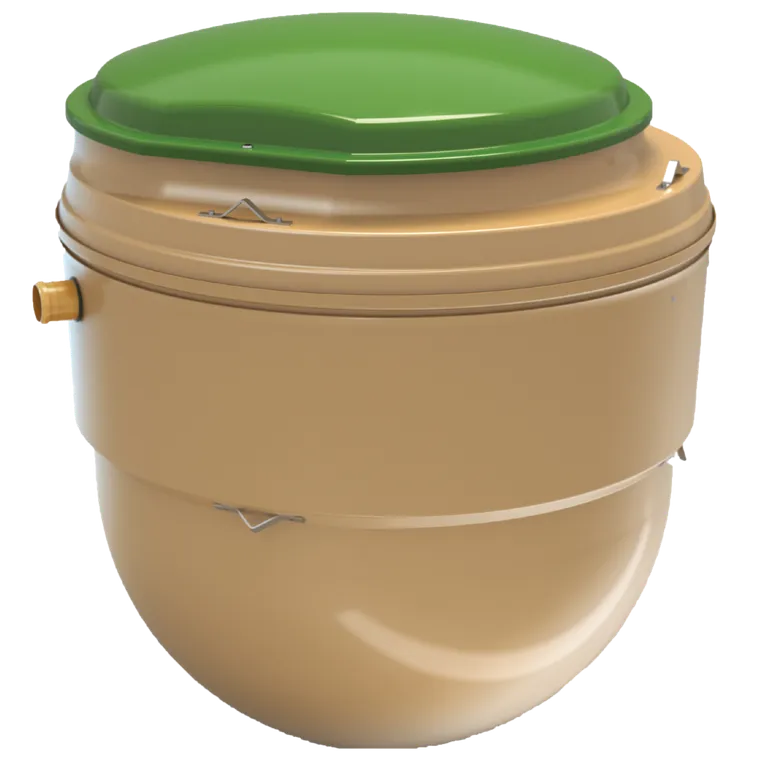

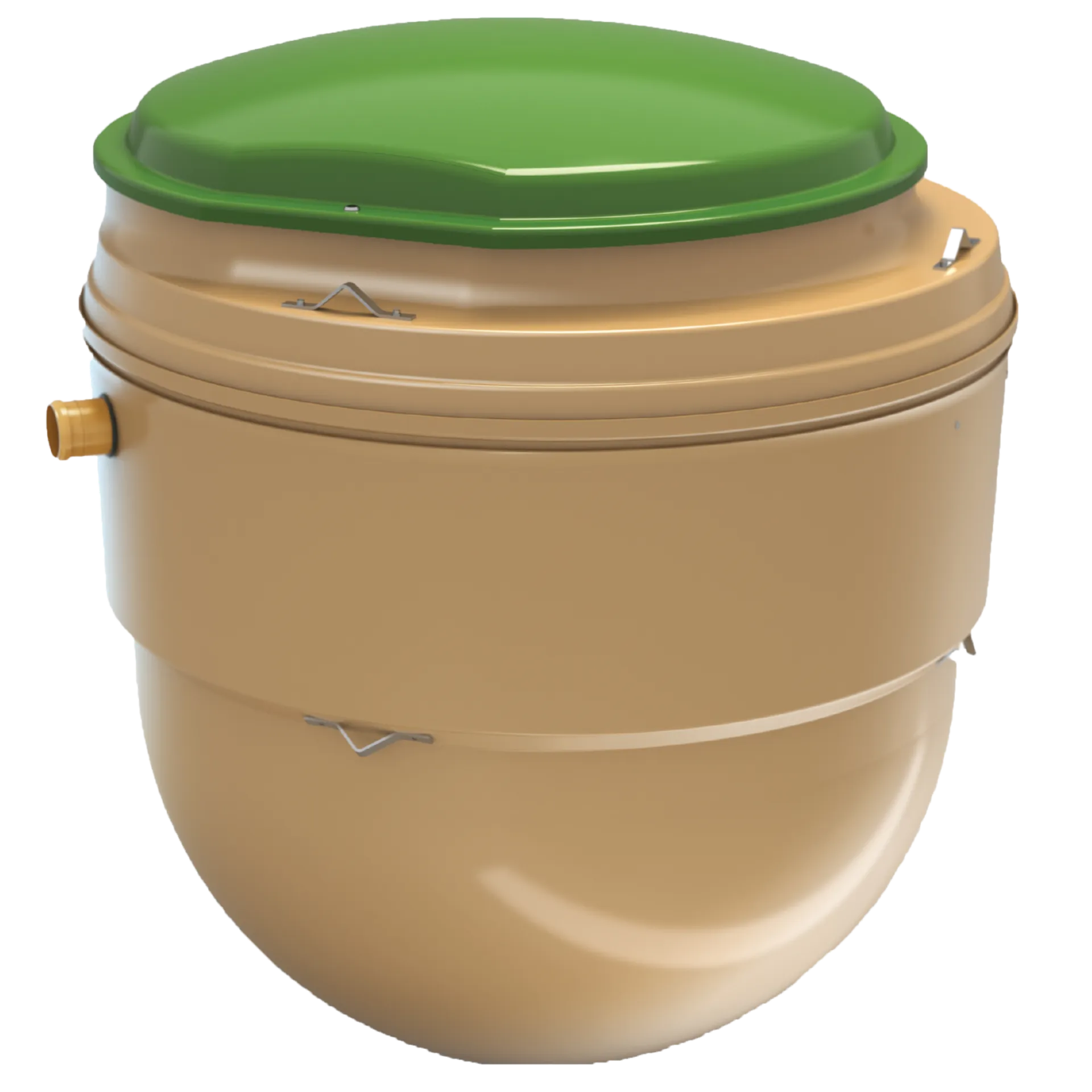

Klargester BioDiscDomestic Sewage Treatment Plant
Product Information
The Klargester BioDisc sewage treatment system is available to suit all types of domestic applications, catering for single and multi-house properties. BioDisc is engineered to treat wastewater that exceeds the required standard as set by EN 12566-3:2005 and offers affordable lifetime costs compared to other treatment processes.
Product Highlights
- Affordable lifetime running costs
- Odour free
- Silent operations
- 7-year warranty offered on our BA-BB range (terms apply)
- Free site visit to help select the model to meet your needs - email klargester-web@kingspan.com
- Fully compliant with European standard EN 12566-3 & CE Marked
- Affordable service and maintenance plans available, commissioning available as extra
Technical Information
Specification
| Unit Reference | BA | BAx | BB | BC |
|---|---|---|---|---|
| Population Equivalent (Std Flow) | 6 | 9 | 12 | 18 |
| Maximum Daily BOD (kg) | 0.36 | 0.54 | 0.72 | 1.08 |
| Maximum Daily Flow (m3) | 1.2 | 1.8 | 2.4 | 3.6 |
| Ø/Width (mm) | Ø1995 | Ø1996 | Ø1995 | Ø2450 |
| Length (mm) | - | - | - | - |
| Inlet Invert Depth (mm) | 450/750/1250 | 450/750/1251 | 450/750/1250 | 600/1100 |
| Depth Below Inlet Invert (mm) | 1400 | 1400 | 1400 | 1820 |
| Outlet Invert Depth (mm) | 1315 | 1315 | 1315 | 1735 |
| Overall Height (mm) | 2160/2460/2960 | 2160/2460/2960 | 2160/2460/2960 | 2825/3325 |
| Height to Rim of Cover (mm) | 1945/2245/2745 | 1945/2245/2745 | 1945/2245/2745 | 2485/2985 |
| Empty Weight (kg) | 310/325/380 | 310/325/380 | 335/350/405 | 650/750 |
| Standard Power Supply | 1 Phase | 1 Phase | 1 Phase | 1 Phase |
| Motor Rating - 1 Phase (Watts) | 50 | 50 | 50 | 75 |
| Full Load Current - 1 Phase (amps) | 0.51 | 0.51 | 0.51 | 1.1 |
| Optional Power Supply | 3 Phase | 3 Phase | 3 Phase | 3 Phase |
| Motor Rating - 3 Phase (Watts) | N/A | N/A | N/A | 90 |
| Full Load Current - 3 Phase (amps) | N/A | N/A | N/A | 0.38 |
| Sludge Return Pump Rating (Watts) | 250 | 250 | 250 | 250 |
Applications
Typical applications for the Klargester Domestic BioDisc range:
- Single/Multiple Homes
- Barn Conversion
- Small Office Development
- Stable Yard Toilet
- Farms
- Offices
Legislation
- Third party tested to EN12566-3
- CE Marked
Effluent Quality
| Element/Compound | BioDisc Removal Rate |
| BOD5 (Biological Oxygen Demand) | 95.7% (10 mg/l) |
| COD | 89.4% (59 mg/l) |
| Suspended Solids | 94.8% (15 mg/l) |
| Ammonium Nitrogen | 88.6% (3.8 mg/l) |
Downloads
Declaration of Performance (DoP)

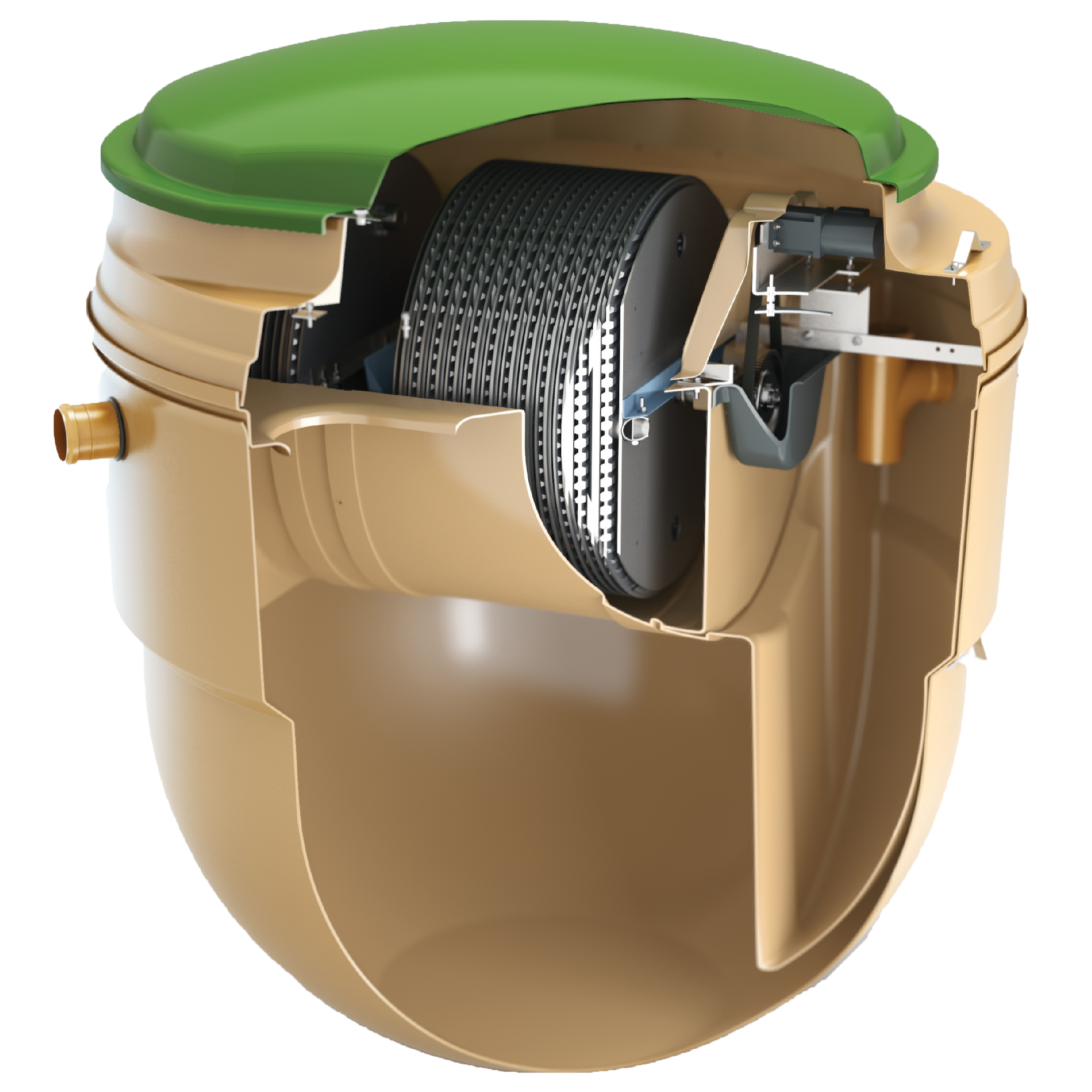

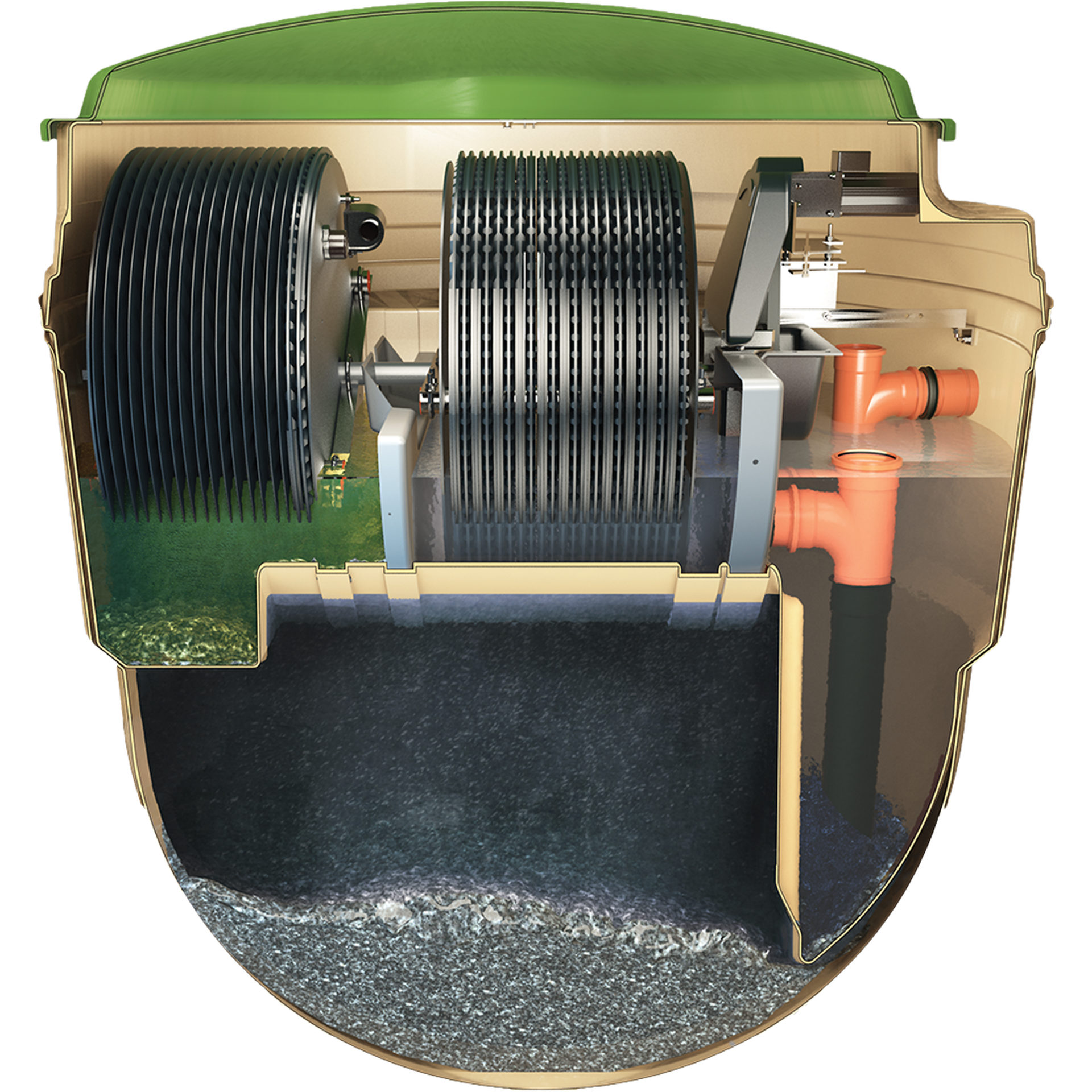

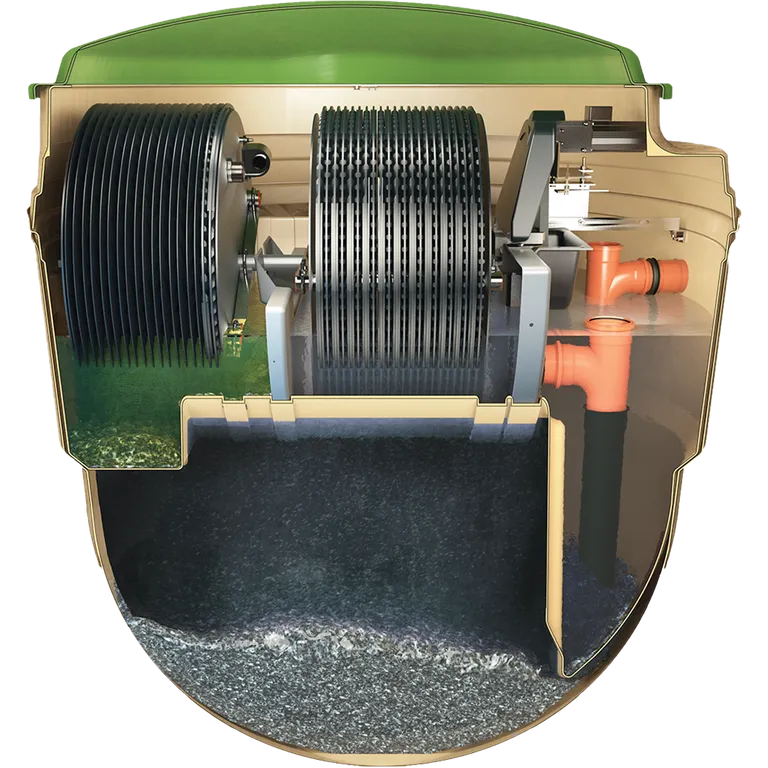

How does a BioDisc Work?

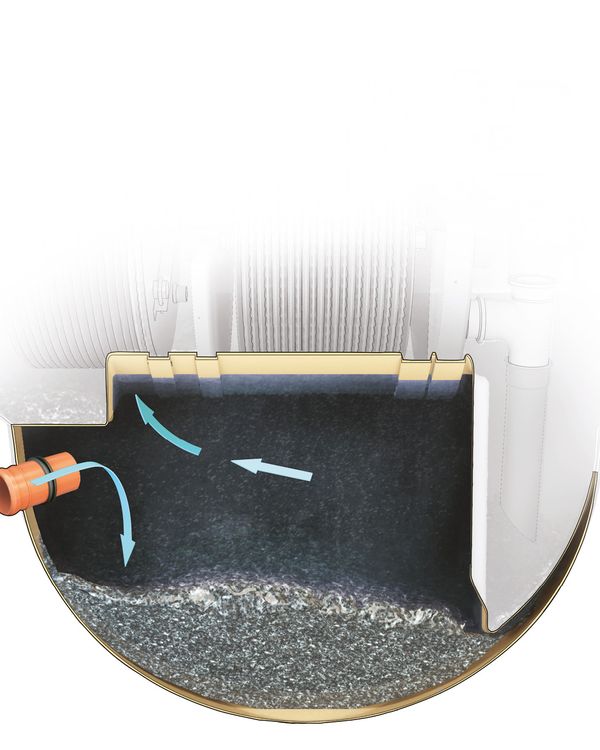

Primary Settlement Tank
Wastewater and sewage flows into the primary settlement tank where the large solids are retained for future removal.
How does a BioDisc Work?

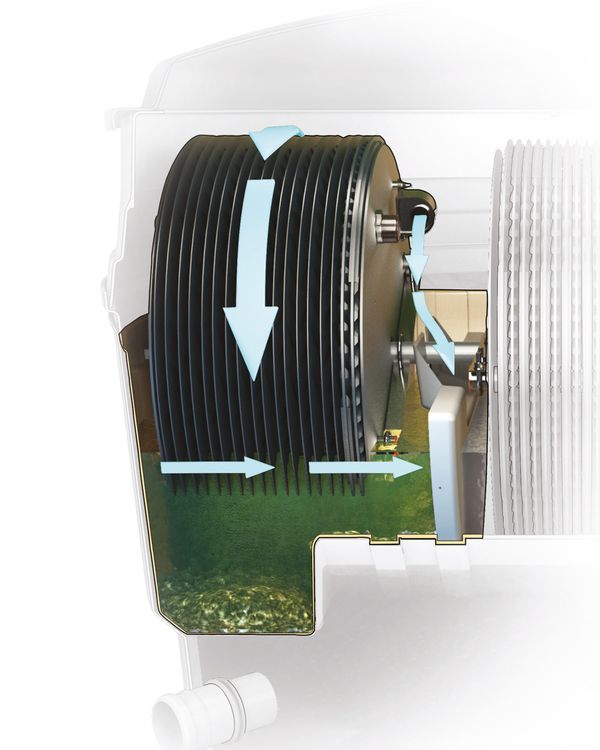

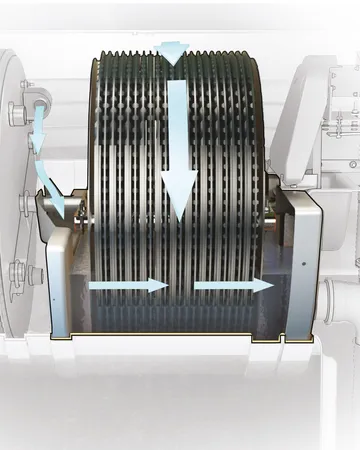

First Stage Biological Treatment
The liquor and fine solids then flow into the Biological Treatment Zone 1 where the first stage of treatment occurs.
How does a BioDisc Work?

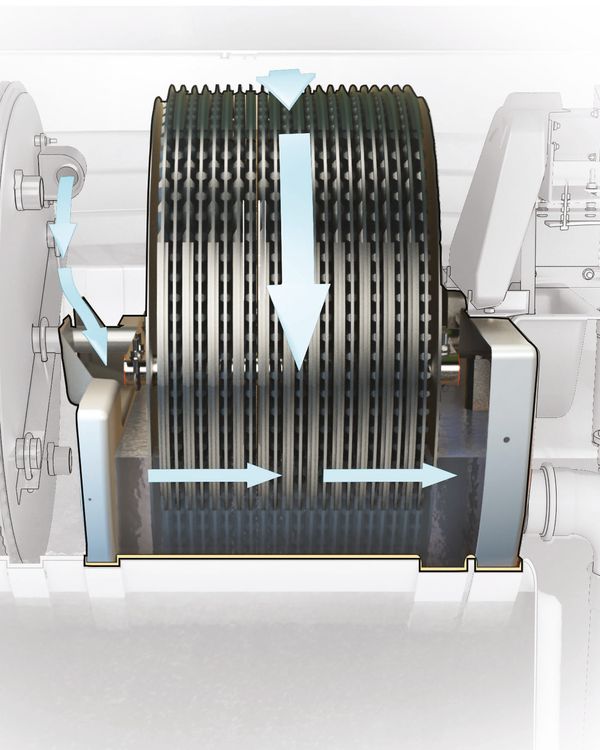

Second Stage Biological Treatment
The liquor is then fed forward at a controlled rate into Biological Treatment Zone 2 for further cleaning.
How does a BioDisc Work?

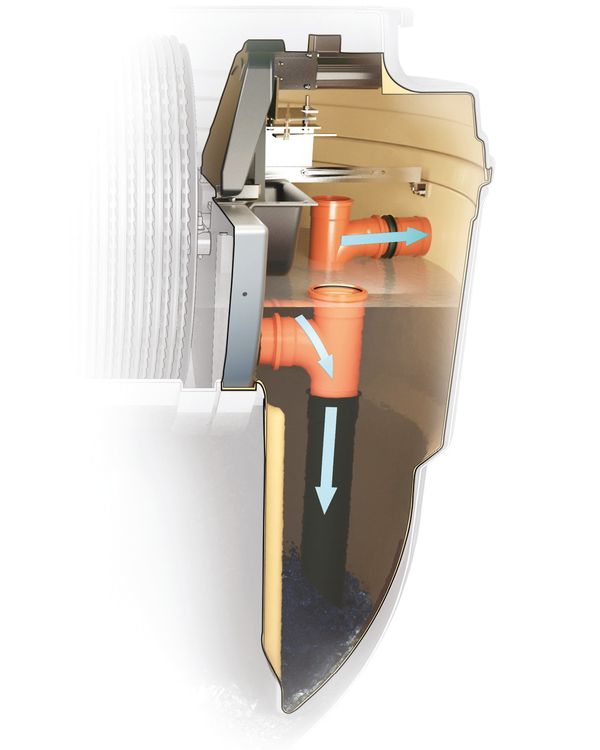

Final Settlement Tank
The clean liquid passes into the final settlement tank where it can be discharged to ground or water course.
