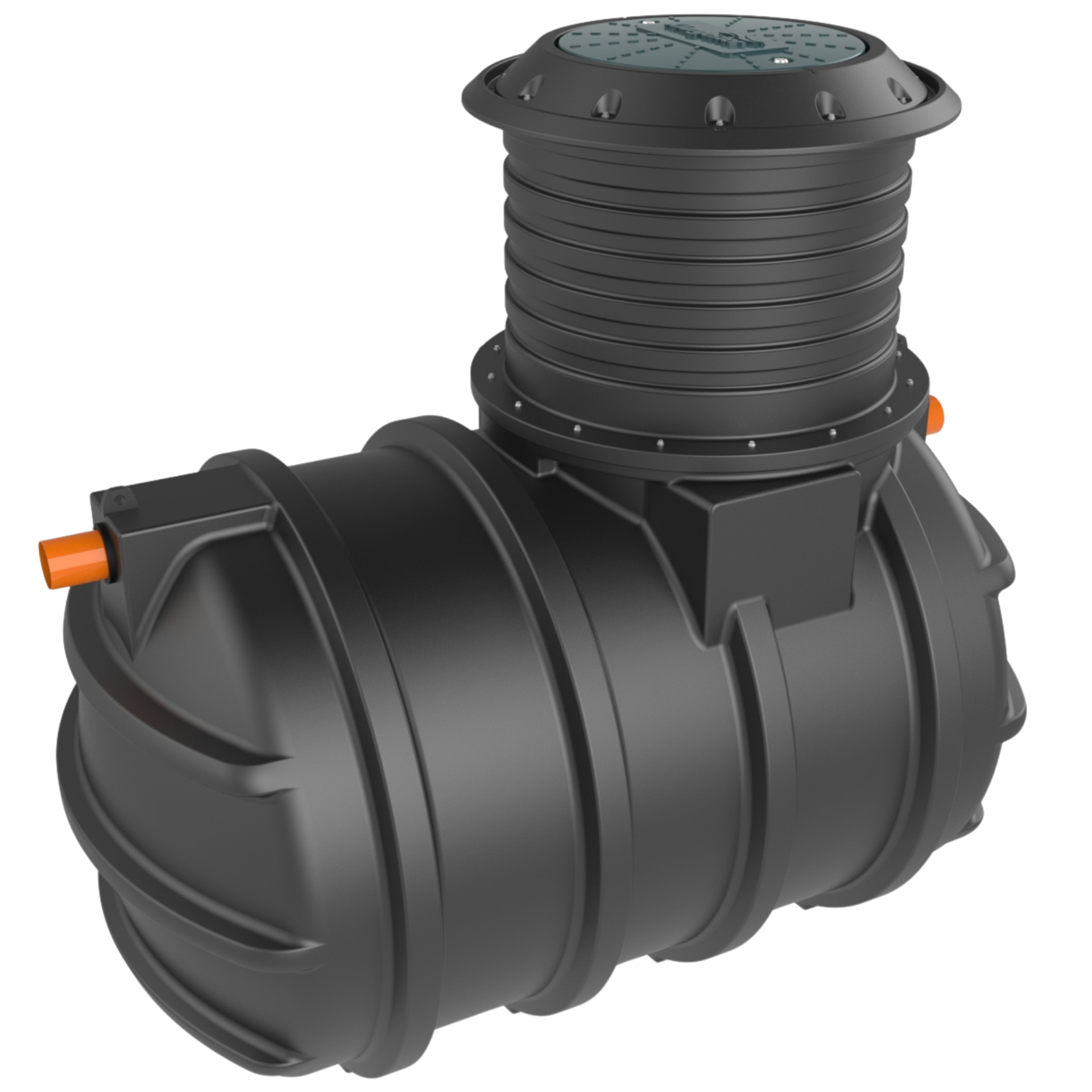

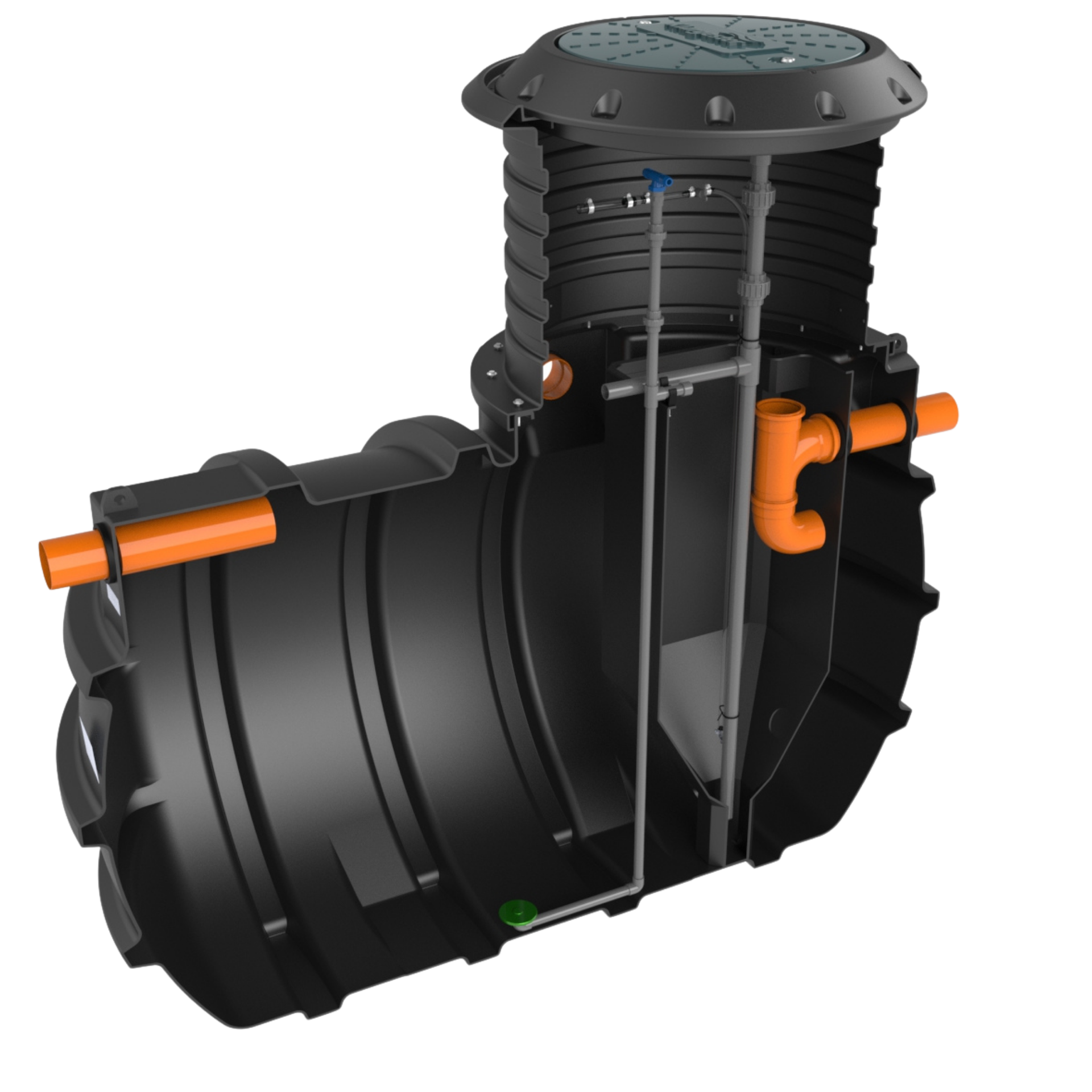

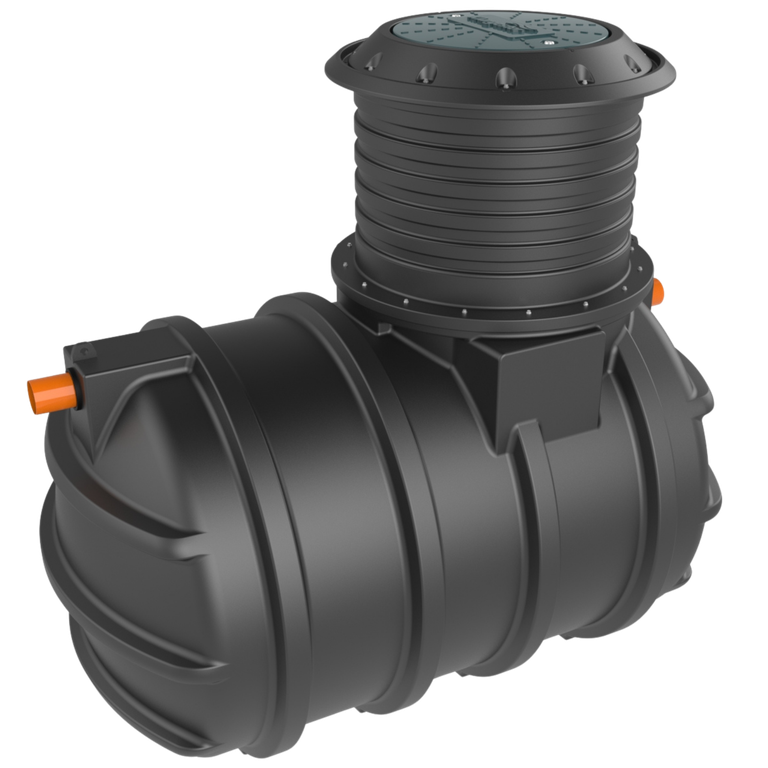

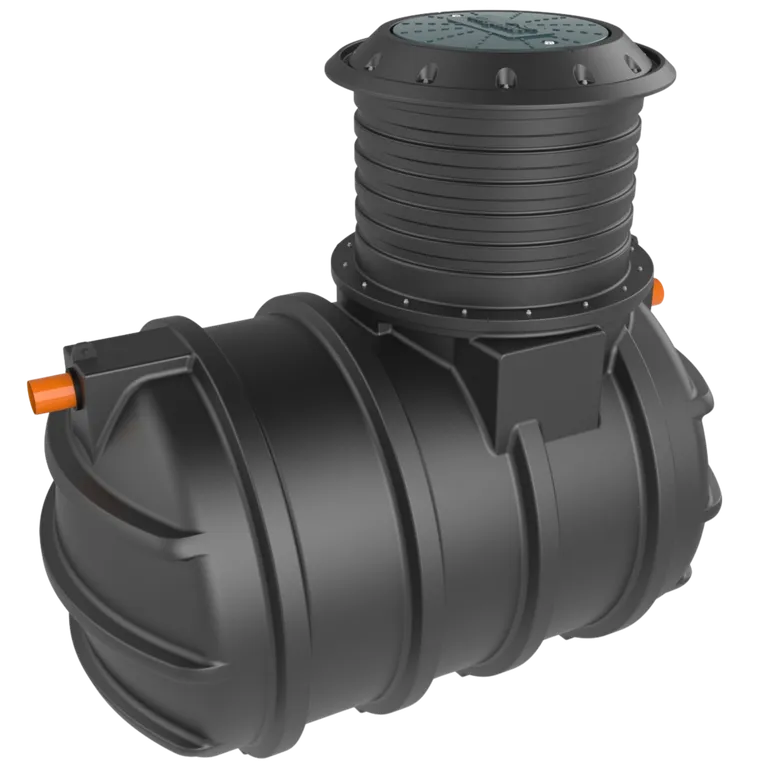

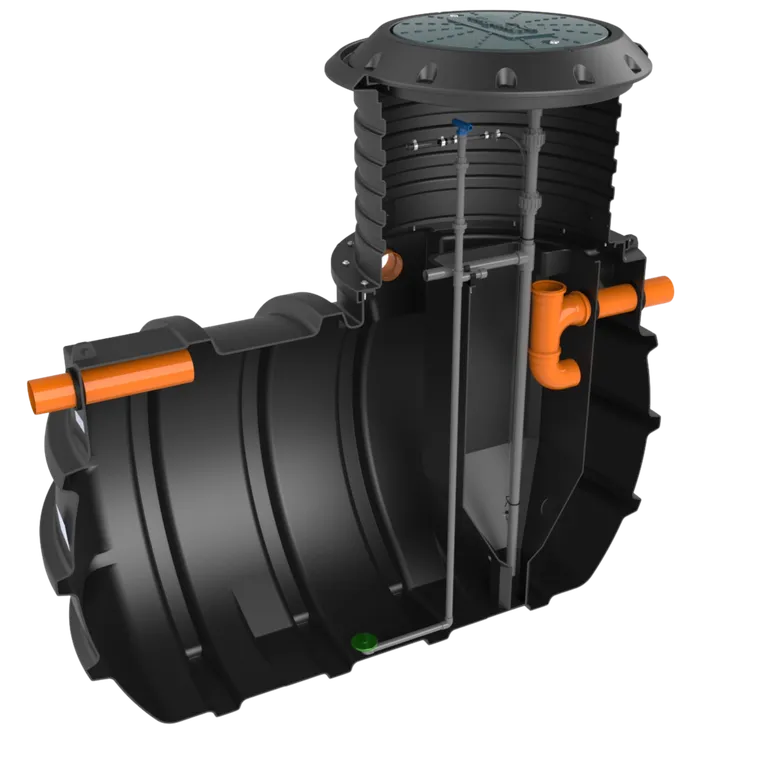

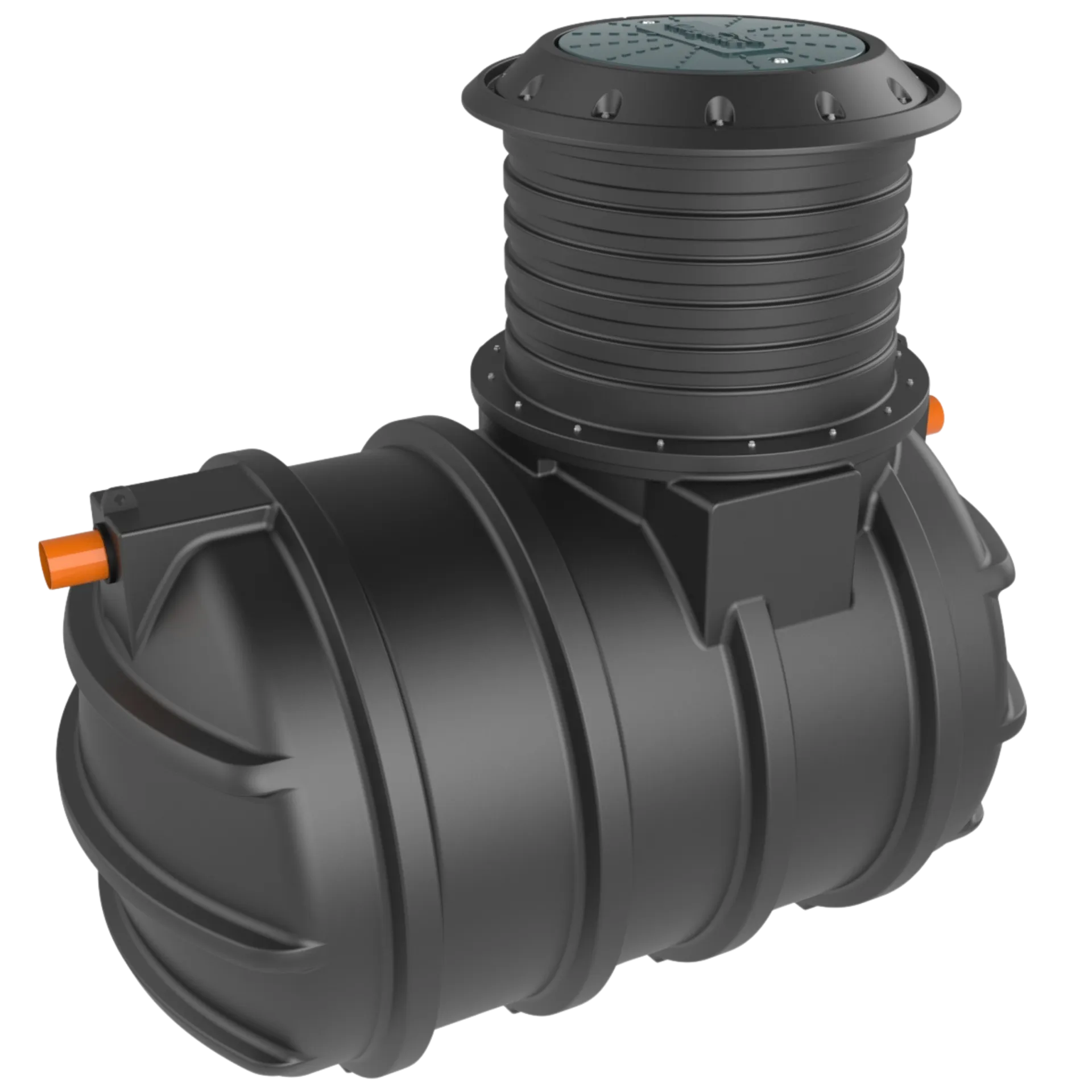

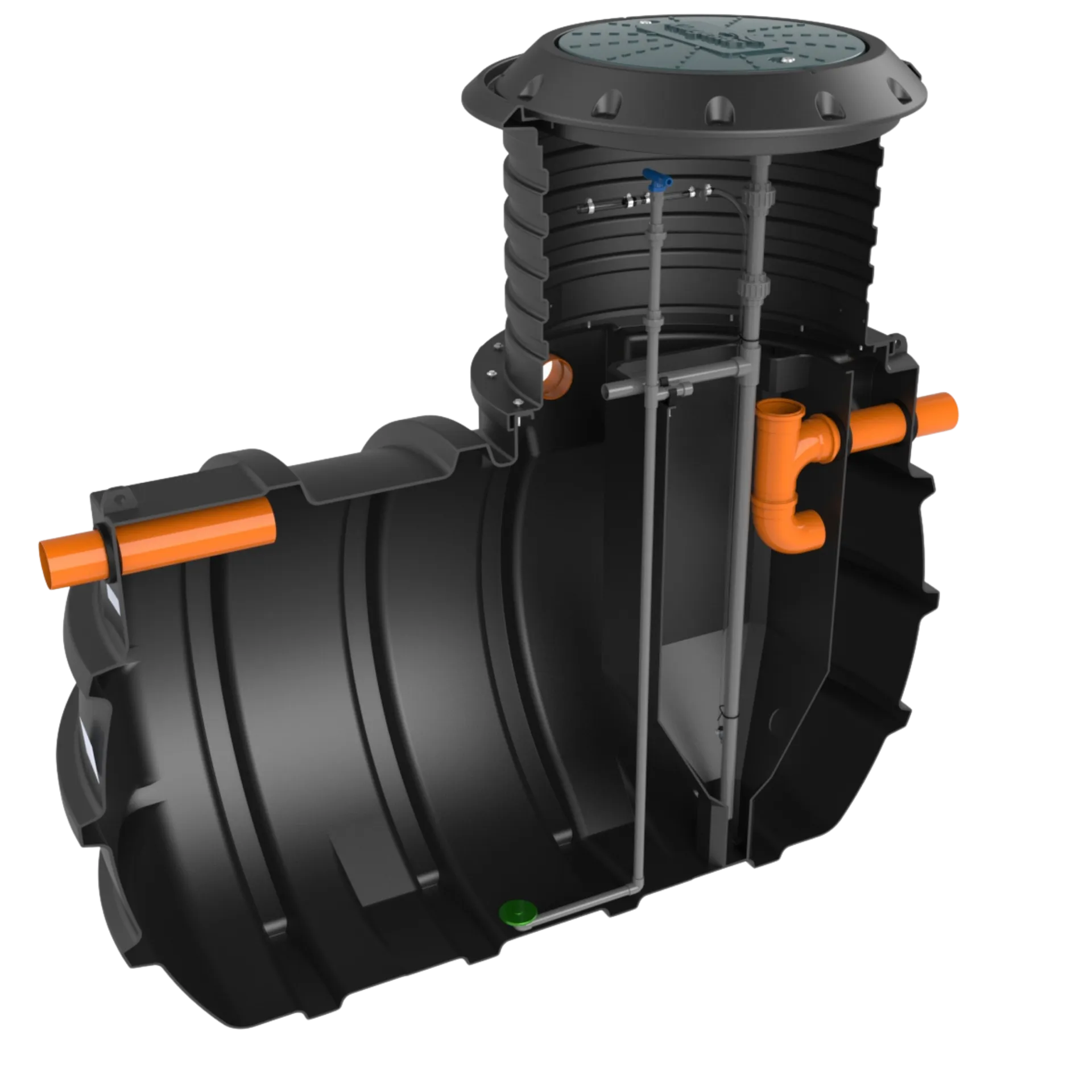

Clearwater BioAirSewage Treatment Plant
Product Information
The Clearwater BioAir sewage treatment plant employs aerated technology, delivering a high level of water discharge quality. With adaptable installation choices to accommodate diverse domestic locations and a discreet visual profile, the Clearwater BioAir stands as a financially sensible option for your household wastewater treatment needs.
Product Highlights
- Economically priced
- 1 year warranty period (terms apply)
- Third party tested to EN 12566-3
- Suitable for installation in traffic areas (Structural advice required)
- Low level visibility
- No plastic media
- Easy to install and operate
- Suitable for shallow dig applications
- Regular servicing required, with plans available
- Free site visit to help select the model to meet your needs - email klargester-web@kingspan.com
Technical Information
Specification
| BioAir | Model | BioAir 2 | BioAir 3 | BioAir 4 | BioAir 5 | BioAir 6 | BioAir 7 | BioAir 8 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Population Equivalent | Unit | 6 | 9 | 12 | 15 | 20 | 25 | 35 | |||||||
| Daily Flow | m3/d | 0.9 | 1.35 | 1.8 | 2.25 | 3 | 3.75 | 5.25 | |||||||
| Daily Load | kg BOD5/d | 0.36 | 0.54 | 0.72 | 0.9 | 1.2 | 1.5 | 2.1 | |||||||
| Daily Flow Q10 | m3/h | 0.09 | 0.135 | 0.18 | 0.225 | 0.3 | 0.375 | 0.525 | |||||||
| Measurements | |||||||||||||||
| Inlet Invert (Gravity/IPS) | mm | 645-1430 | 750-1440/950-1440 | 500-2000 / 1000-2000 | 500-2000 / 1000-2000 | 500-2000 | 500-2000 | 500-2000 | |||||||
| Discharge Option | Gravity /IPS | Gravity /IPS | Gravity /IPS | Gravity/IPS | Gravity | Gravity | Gravity | ||||||||
| Outlet Invert (Gravity/IPS) | mm | 745-1530 / 600-1385 | 850-1540 / 585-1075 | 600-2100 | 600-2100 | 600-2100 | 600-2100 | 600-2100 | |||||||
| Diameter | mm | 1540 | 1690 | 1920 | 1920 | 1920 | 1920 | 1920 | |||||||
| Length | mm | 2480 | 2480 | 3238 | 3605 | 4400 | 5550 | 7400 | |||||||
| Installation Depth (Gravity/IPS) | mm | 1995-2780 | 2250-2940/2450-2940 | 2245-3745 | 2245-3745 | 2245-3745 | 2245-3745 | 2245-3745 | |||||||
| Inlet Pipework | mm | Ø110 | Ø110 | Ø110 | Ø110 | Ø110 | Ø110 | Ø160 | |||||||
| Outlet Pipework (Gravity /IPS) | mm | Ø110 / Ø50 | Ø110 / Ø50 | Ø110 / Ø50 | Ø110 / Ø50 | Ø110 | Ø110 | Ø160 | |||||||
| Material Construction | MDPE/GRP | MDPE | MDPE | GRP | MDPE | GRP | GRP | GRP | |||||||
| Unit Weight (Gravity/IPS) | kg | 210/220 | 240/250 | 360/375* | 425/435* | 440* | 535* | 700* | |||||||
| Note: *Tank weight based on 500mm Invert | |||||||||||||||
Applications
The Clearwater BioAir 2-8 range is suitable for use across the following applications:
- Single & multiple homes
- Light industrial premises
- Small offices
- Farms
- Barn conversions
Legislation
- Third party tested to EN12566-3
